Product Overview

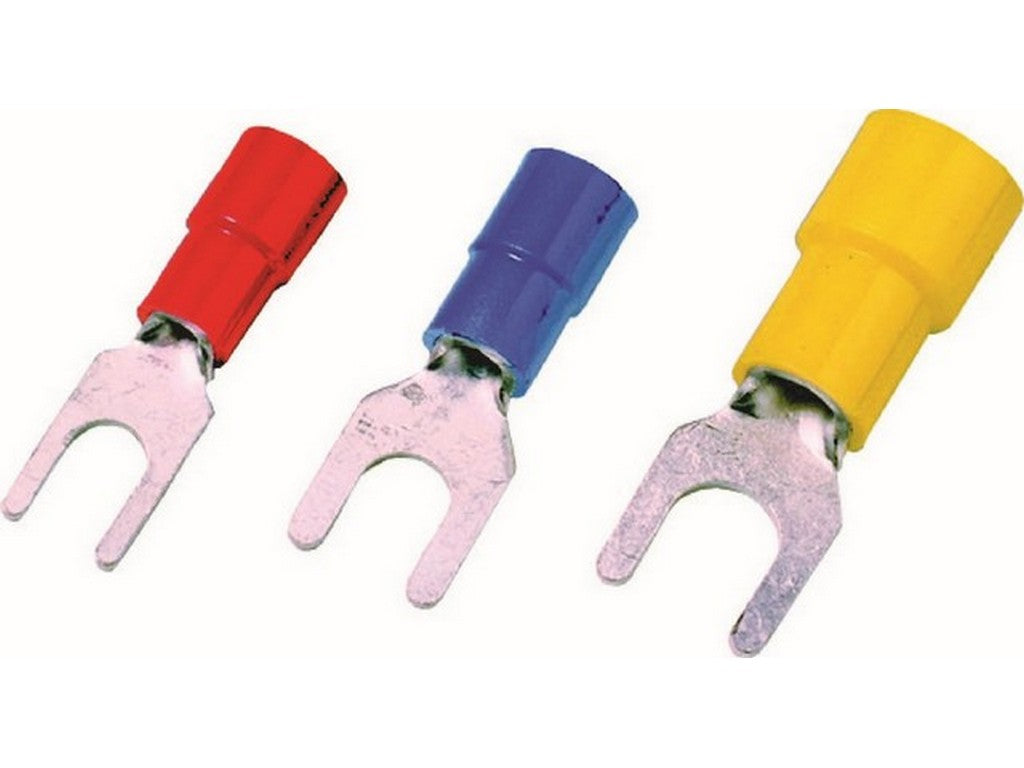

The Quetschkabelschuh DIN 46237 - Gabelform (ICIQ25G) from WEITKOWITZ is a crimp-type cable lug specified on the manufacturer's product page. The product is indicated for multi-stranded and fine-stranded conductors, and the crimping area is marked as hard-soldered. The product name Quetschkabelschuh DIN 46237 - Gabelform appears directly from the supplier's information.Technical Description
The product is supplied under type number ICIQ25G and has the following characteristics, documented on the manufacturer's product page: nominal cross-section 2.5 mm², metric connection thread size 5, and blue insulation. The Quetschkabelschuh DIN 46237 - Gabelform is specified with dimensions and weight as indicated by the manufacturer.Mounting and Conductors
The product text from the manufacturer explicitly states that the cable lug is intended for multi-stranded and fine-stranded conductors. The crimping area is specified as hard-soldered, which is part of the product's technical description on the product page.Sources
Intercable product page for Quetschkabelschuh DIN 46237 - Gabelform (ICIQ25G)
Specifications
- Product name: Quetschkabelschuh DIN 46237 - Gabelform.
- Manufacturer: WEITKOWITZ (specified as manufacturer in input).
- Type number: ICIQ25G.
- Nominal cross-section: 2.5 mm².
- Connection thread size (metric): 5.
- Insulation color: blue.
- Dimensions: d1 = 2 mm; d4 = 4 mm; D2 = 5 mm; d3 = 10 mm; L = 20 mm.
- Net weight: 0.1 kg per 100 pcs.
- Packing size: 100 pcs per pack.
- Suitable for: multi-stranded and fine-stranded conductors (indicated by the manufacturer).
- Crimping area: specified as hard-soldered.
- Reference: DIN 46237 (mentioned in the product title on the manufacturer's page).
