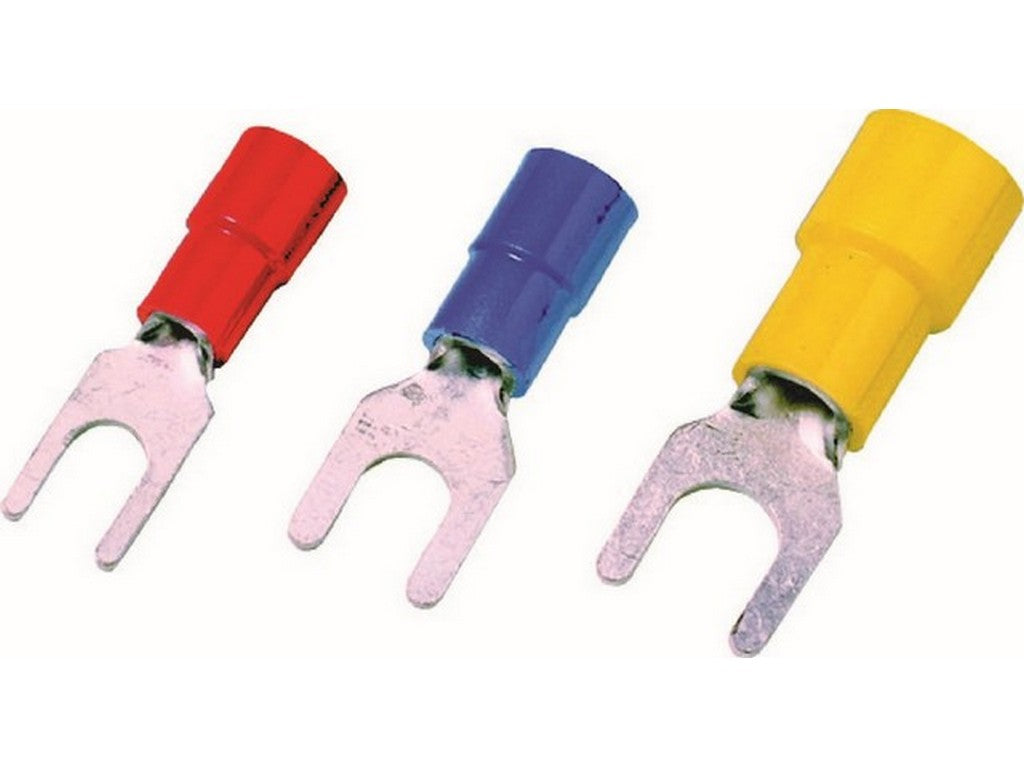

Cable lug fork DIN 46237 - Fork shape (ICIQ135G)
This Cable lug fork DIN 46237 - Fork shape from WEITKOWITZ (type number ICIQ135G) is a fork-shaped cable lug, documented on the manufacturer's product page. The product text states that the item is intended "für mehrdrähtige und feindrähtige Leiter" (for multi-stranded and fine-stranded conductors) and that the crimping area is "hartverlötet" (hard-soldered). The description in the manufacturer's table specifies dimensions and electrical associated dimensions for type ICIQ135G.
Technical overview
- Type: Cable lug fork DIN 46237 - Fork shape (ICIQ135G).
- Application indication from manufacturer: für mehrdrähtige und feindrähtige Leiter; Pressbereich hartverlötet.
- Documented dimensions and color are shown on the manufacturer's product page (see source below).
Typical applications
Used for connecting multi-stranded and fine-stranded conductors as stated in the manufacturer's product text. The product's crimping area is stated as hard-soldered ("Pressbereich hartverlötet"), which is directly evident from the product description.
For further technical details and a complete table of available variants, please refer to the manufacturer's product page.
Specifications
- Type number: ICIQ135G.
- Nennquerschnitt (mm²): 1.
- Anschlussgewindemaß (metric): 3.5.
- Farbe der Isolation: red.
- Abmessung d1 (mm): 1.
- Abmessung d4 (mm): 4.
- Abmessung D2 (mm): 3.
- Abmessung d3 (mm): 6.
- Abmessung L (mm): 17.
- Net weight per 100 pcs (kg): 0.05.
- Packing size: 100 pcs (listed in the manufacturer's table).
- Manufacturer: WEITKOWITZ (listed on the product page via Intercable Tools).
Source: Manufacturer's product listing for Cable lug fork DIN 46237 - Fork shape, ICIQ135G.
