Product Overview

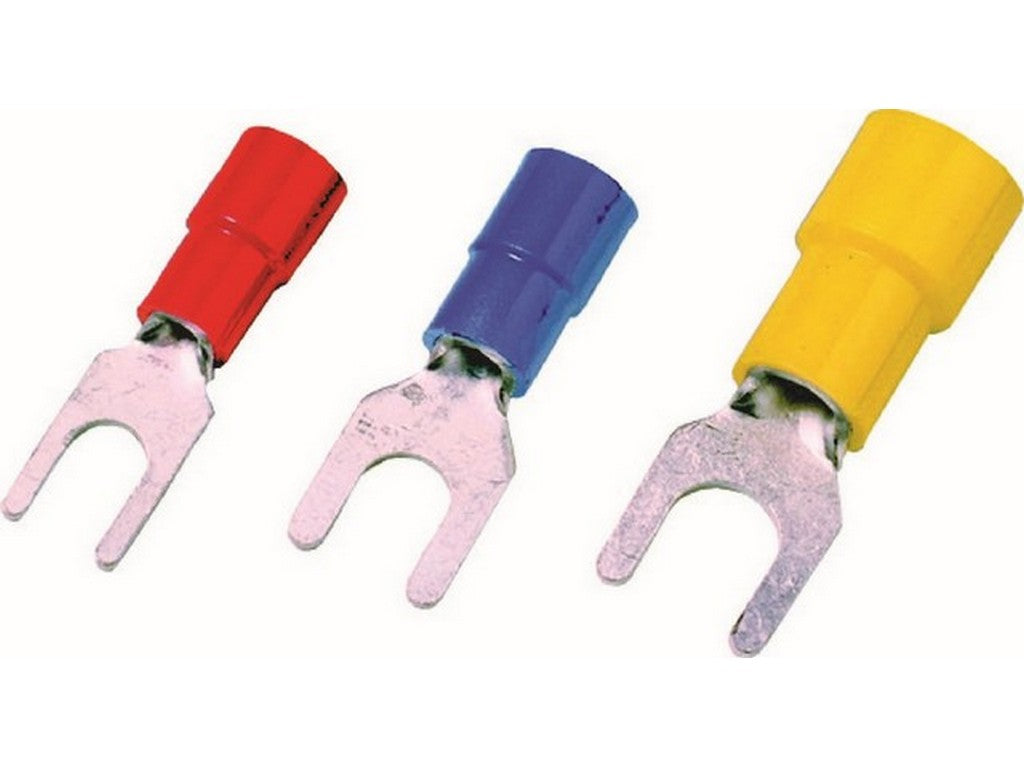

This insulated crimp fork terminal according to DIN 46237 from WEITKOWITZ, type ICIQ14G, is intended for multi-stranded and fine-stranded conductors with a hard-brazed crimping area. The product is supplied with red insulation and is specified with a nominal cross-section of 1 mm² and a metric connection thread size M4.Material and Construction
- Insulated fork terminal with hard-brazed crimping area.
- Insulation color: red.
- Type designation: ICIQ14G (WEITKOWITZ).
Documentation
Product data and dimensions have been verified on the manufacturer's/distributor's product page.
See manufacturer's product page
Specifications
- Product: ICIQ14G (insulated crimp fork terminal).
- Manufacturer: WEITKOWITZ.
- Standard: DIN 46237 (specified by the manufacturer).
- Nominal cross-section: 1 mm².
- Metric connection thread (Size): 4 (metric connection thread size 4).
- Dimensions: d1 = 1 mm, d4 = 4 mm, D2 = 4 mm, d3 = 8 mm, L = 18 mm.
- Packaging: 100 pcs. per package.
- Net weight: 0.07 kg per 100 pcs.
- Applicable conductors: specified for multi-stranded and fine-stranded conductors.
- Construction: hard-brazed crimping area.
