Product Overview

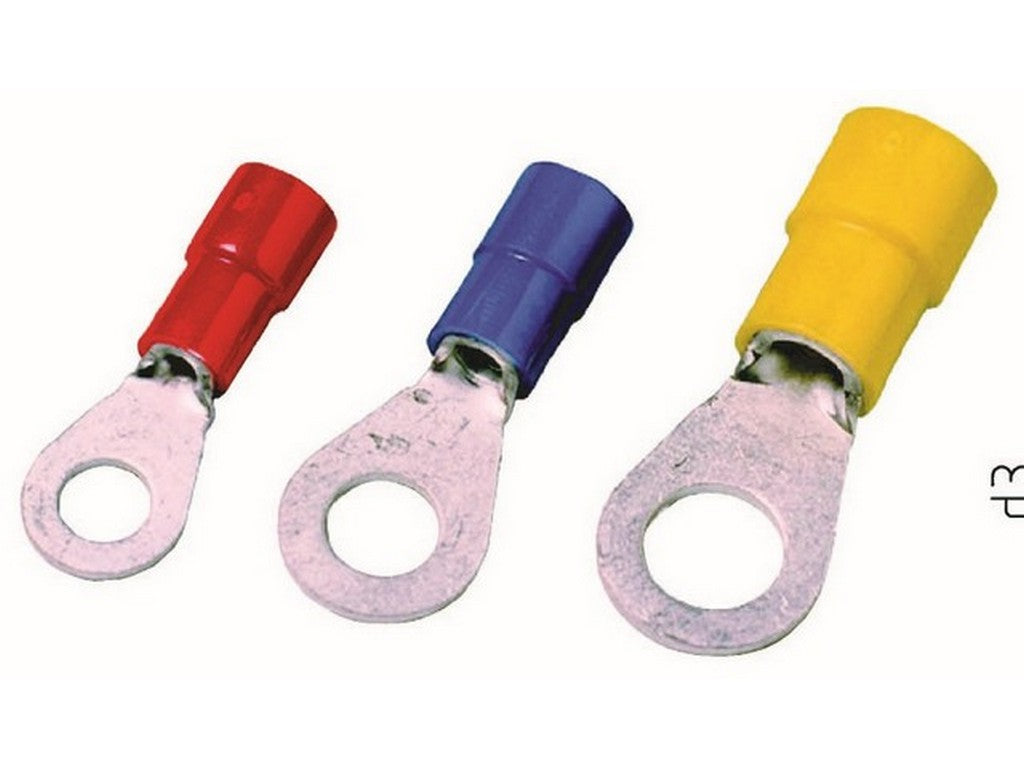

This insulated crimp terminal ICIQ235 from WEITKOWITZ is an insulated crimp terminal specified for a nominal cross-section of 2.5 mm² with a metric thread size M3 and blue insulation. The product's central function is the mechanical and electrical connection of stranded and fine-stranded conductors to a screw/bolt connection via an eye/ring terminal.Technical Characteristics
The description on the verified manufacturer/distributor website states that the crimping area is hard-soldered ("Pressbereich hartverlötet") and that the product comes with a flared insulation sleeve (aufgeweiteter Isolierhülse). The ICIQ235 is specified with concrete measurements and packaging information on the manufacturer's product page.Typical Applications
The ICIQ235 is used for connecting stranded and fine-stranded conductors where the conductors need to be secured with a screw/bolt through the terminal's metric M3 opening. The description explicitly states suitability for "mehrdrähtige und feindrähtige Leiter" (stranded and fine-stranded conductors) and that the crimping area is hard-soldered.Source
See manufacturer's product pageSpecifications
- Product Name: ICIQ235.
- Manufacturer: WEITKOWITZ.
- Insulation Colour: blue.
- Nominal Cross-Section: 2.5 mm².
- Metric Thread Size: 3 (M3).
- Description: for stranded and fine-stranded conductors; crimping area hard-soldered.
- Dimensions: d1 = 2 mm, d4 = 4 mm, D2 = 3 mm, d3 = 6 mm, L = 17 mm.
- Net Weight: 0.06 kg per 100 pcs.
- Packaging/Unit: 100 pcs.
