KATIMEX Cable Grip (single eye, galvanized steel) 108000
This KATIMEX cable grip, identified as KATIMEX cable grip (single eye, galvanized steel) with order number 108000, is designed for underground cabling. The product is made of galvanized steel braiding consisting of a highly flexible 19-strand double cordel, and transfers tensile force evenly along the entire length of the mesh.
Product Description

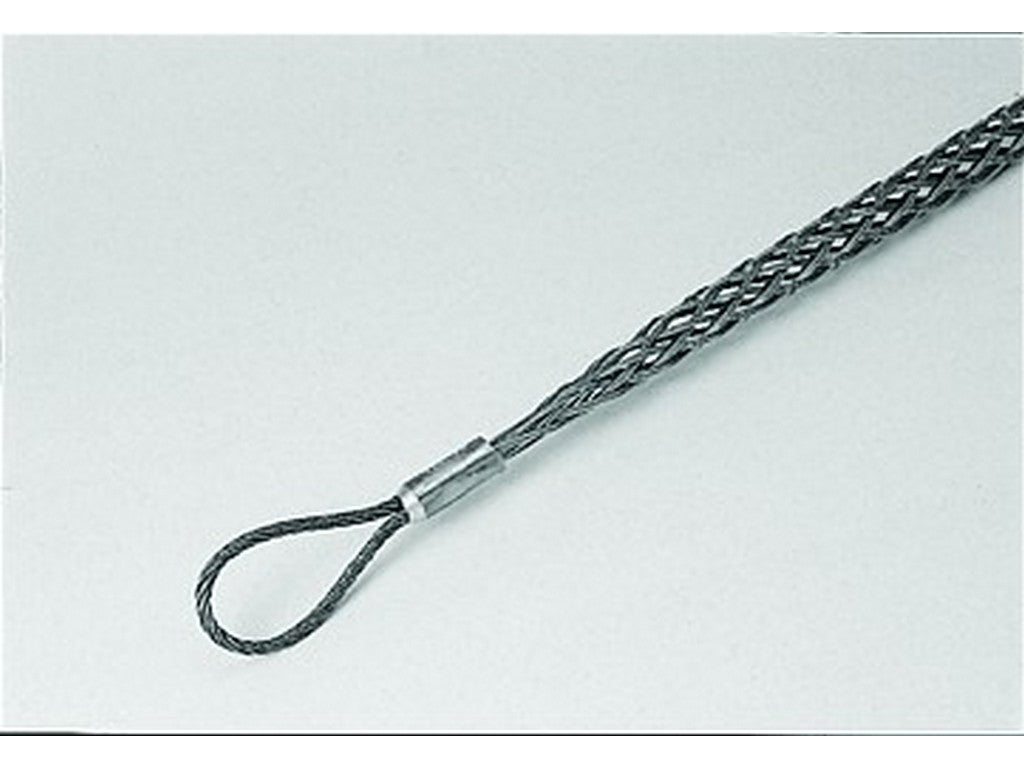

The KATIMEX cable grip (single eye, galvanized steel) 108000 is a closed single-eye cable grip that is pushed over the cable end. All strands at the beginning of the grip are bound and pressed together in a ferrule with an eye, where the eye of the ferrule is phase-cut in the pulling direction to reduce the risk of snagging or entanglement during traction. The construction ensures an even distribution of the load over the length of the mesh.
Typical Applications
- Used for underground cabling for cables with diameters between 10 mm and 20 mm.
Documentation
Specifications
- Manufacturer: KATIMEX
- Product Name: KATIMEX cable grip (single eye, galvanized steel) 108000
- Material: Galvanized steel (steel braiding)
- Construction: 19-strand double cordel, highly flexible
- Cable-Ø min: 10 mm
- Cable-Ø max: 20 mm
- Working length: 900 mm
- Breaking load: 18.8 kN
- Max pulling force: 9.4 kN
- Pressed ferrule with cut eye in the pulling direction
- Order number: 108000
- EAN: 4044489080005
- Packaging dimensions: Length 120 cm, Width 5 cm, Height 1.5 cm
- Weight per unit: 0.22 kg
