Product Overview

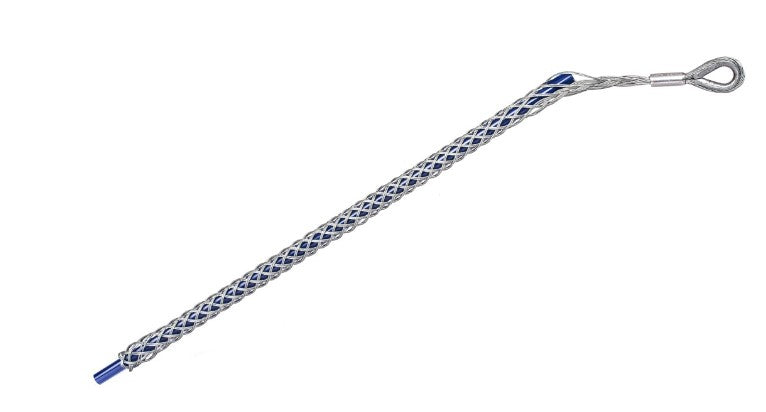

This hose safety grip (KATIMEX item 109400) is a hose safety grip designed for the mechanical securing of high-pressure hoses. The product is supplied in galvanized steel and is fitted with a lateral loop with thimble for force application.Material and Construction
- Material: steel, galvanized.
- Lateral loop with thimble for connection and force distribution.
- Press sleeves used for uniform load distribution in the braiding.
- Ends are braided back to the grip's beginning (not soldered or merely pressed), to reduce sharp edges and the risk of injury.
Typical Applications
The hose safety grip KATIMEX item 109400 is used for securing high-pressure hoses in the following manufacturer-specified applications:
- Securing of hoses in wind turbines.
- Securing of hoses in elevators (lift systems).
- Securing of hoses in cranes.
Functional Notes
The product's design with press sleeves and braided-back ends ensures that the force is distributed along the length of the braiding and reduces point loading. The laterally mounted loop with thimble allows for the connection of fixing or removal points without altering the basic structure of the braiding.
Information in this product description is based on the manufacturer's product page for KATIMEX item number 109400.
Specifications
- Manufacturer: KATIMEX.
- Item number: 109400.
- Material: steel, galvanized.
- Cable/hose-Ø (min–max): 6–10 mm.
- Breaking load: 15 kN.
- Max. tensile load: 5 kN.
- Overall length: 740 mm.
- Press sleeves for even load distribution; ends braided back to the grip's beginning.
- EAN: 4044489094002.
- Packaging dimensions (according to manufacturer): Length 70 cm, Width 3 cm, Height 2 cm.
- Weight (according to manufacturer): 0.2 kg.
