Product Overview
This description covers the Kati® Blitz compact (item number 101830) from KATIMEX – a cable pulling tool for inserting cables into conduits. The product comes with a 30 m Polykat® fiberglass rod with a rod diameter of 3 mm and is designed for inserting cables into conduits, including curved pipe systems, as specified by the manufacturer.Technical Details

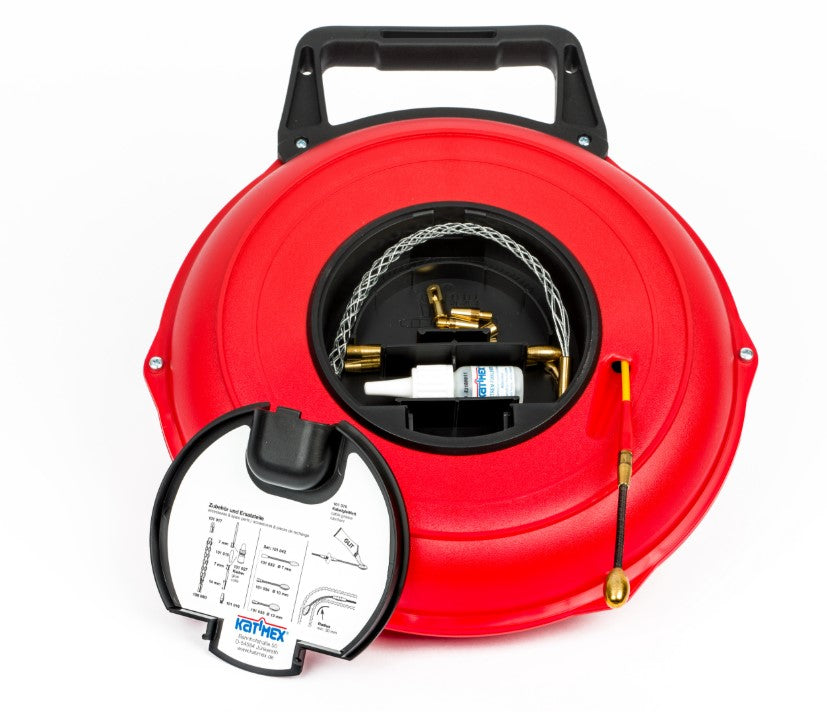

The Kati® Blitz compact features a closed, impact-resistant housing with an internal rotating storage reel (speichertrommel) and an integrated accessory compartment. The system allows for quick unspooling and re-spooling of the fiberglass rod without knots or loops. Both rod ends have starting sleeves with threads, allowing pulling socks, pulling or guide heads to be mounted.
Included Accessories
- 2 flexible guide heads Ø 7 mm & Ø 10 mm
- 5 pulling hooks/zugköpfe with eye, brass, M5 thread, Ø 6 mm
- 1 Kati® Grip Powerdisk
- 1 cable pulling sock with swivel for cables Ø 6–9 mm
- 5 starting sleeves, brass, M5
- 3 connecting sleeves, brass
- 1 special adhesive for Polykat® (3 g)
Further product information and technical data are provided by the manufacturer on the manufacturer's product page.
Manufacturer's product page for Kati® Blitz compact
Typical Applications
The Kati® Blitz compact is used for inserting cables into conduits and is stated to be capable of pulling cables through curved pipe systems. The manufacturer's description specifically highlights this application.
Specifications
- Product: Kati® Blitz compact
- Manufacturer: KATIMEX
- Item number / MPN: 101830
- Band/rod length: 30 m
- Band/rod Ø: 3 mm
- Max. pipe/conduit Ø: 30 mm
- Minimum bending radius: 30 mm
- Breaking force (rod): 5 kN
- Band/sleeve rated tensile strength: 1 kN
- Included accessories: see list under "Included Accessories"
- EAN: 4044489018305
- Packaging dimensions: L 33 cm × W 26 cm × H 8 cm
- Weight: 1.18 kg
