This fiberglass cable pulling tool from KATIMEX

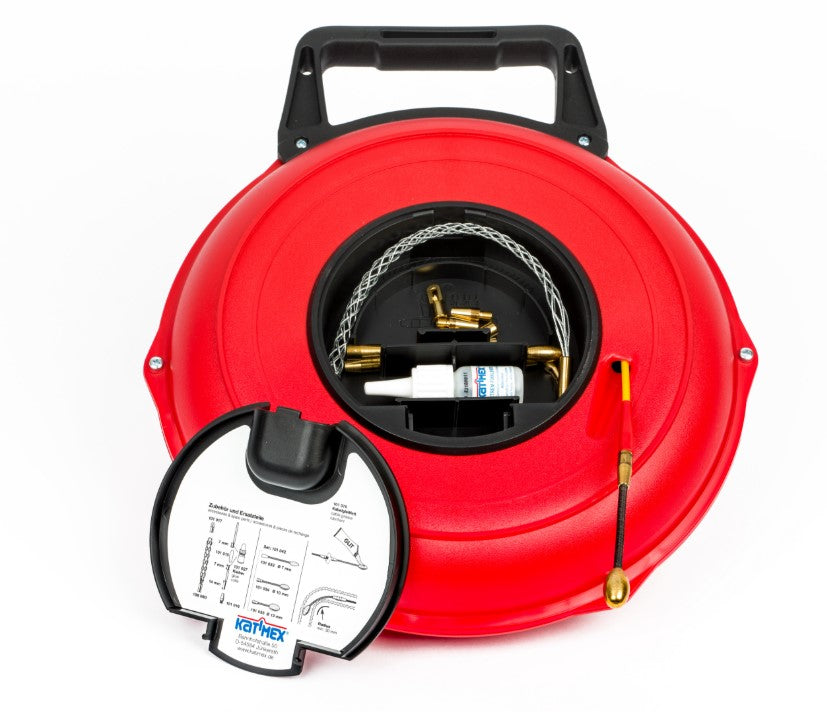

The Kati® Blitz compact (item no. 101850) is a fiberglass cable pulling tool designed to pull cables into conduits. The product is based on Katimex's Polykat® fiberglass profile and a closed, patented casing construction that allows for quick coiling and uncoiling of the rod without knots or loops. According to the manufacturer's information, an improved Rod End 2.0 is used to minimize the risk of breakage at the transition surface between the rod and the rod end and to enable a low minimum bending radius of 30 mm.Design and function
- Closed housing with integrated compartment for accessories and a solution that prevents rotating outer parts during storage. - Polykat® fiberglass profile allows for quick feeding and rewinding of the rod without tangling. - Rod End 2.0 improves bending properties at the rod/end transition.Contents and accessories
- 2 flexible guide heads Ø 7 mm & Ø 10 mm
- 5 pulling eyes Ø 6 mm, brass with M5 thread
- 1 Kati® Grip Powerdisk
- 1 cable grip with integrated swivel for cables Ø 6–9 mm
- 5 rod ends, brass with M5 thread
- 3 connecting pieces, brass
- 1 special adhesive, 3 g
Typical applications
- Used for pulling cables into conduits.
- Used for feeding through long, winding runs and pipe systems, including systems where cables are already laid.
Specifications
- Manufacturer: KATIMEX
- Product name: Kati® Blitz compact
- Item number: 101850
- Rod length: 50 m
- Rod diameter: 3 mm
- Max. pipe/tube-Ø: 30 mm
- Min. bending radius: 30 mm
- Breaking strength of rod: 5 kN
- Rod/rod-end breaking strength: 1 kN
- EAN: 4044489018503
- Packed weight: 1.37 kg
- Package dimensions: 33 × 8 × 26 cm
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
