DP 20 N — manual depaneling tool

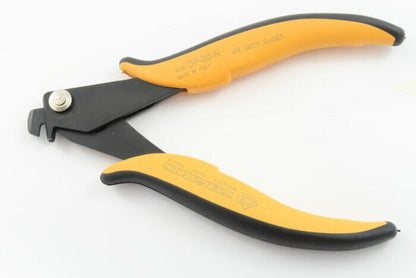

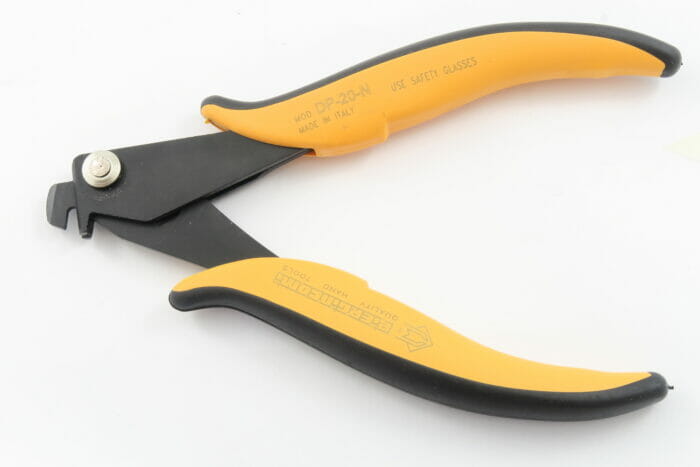

The DP 20 N is a manual depaneling tool from PIERGIACOM for the mechanical separation of printed circuit boards (PCBs). The primary function of the tool is to separate PCBs along defined tabs without the need for machine depaneling, and it comes in a compact form factor with "St" handle model. An ESD-safe version is available under the code DP 20 N D.
Design and function

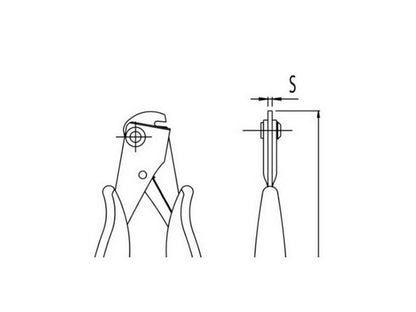

The tool has a blade thickness of 2.0 mm and an overall length of 147 mm. The maximum cutting force is specified at 3 kg, and the tool weighs 90 g. The technical limits indicate a maximum PCB thickness of 1.6 mm, a minimum distance between tabs of 11 mm, and a maximum tab length of 3 mm. These parameters are relevant when planning depaneling tasks and when designing panels with mechanical connections between individual boards.
Practical use
The DP 20 N is used for manual separation of panels where controlled mechanical separation is desired. The user guides the blade along the tab area to separate the boards in accordance with the specified technical limitations. The "St" handle model provides the physical interface between the operator and the tool; an ESD variant is available if electrostatic protection is required.
Typical applications
The product's official description explicitly states that the DP 20 N is designed to separate PCBs and leaves well-finished cutting surfaces. It is a manual depaneling tool for this specific task.
Specifications
- Manufacturer: PIERGIACOM
- Model: DP 20 N
- Function: Manual depaneling tool for separating printed circuit boards (PCBs)
- Blade thickness: 2.0 mm
- Overall length: 147 mm
- Max. cutting force: 3 kg
- Weight: 90 g
- Max. PCB thickness: 1.6 mm
- Min. tab distance: 11 mm
- Max. tab length: 3 mm
- Handle: model "St"
- ESD version: Available as DP 20 N D
