Product Overview

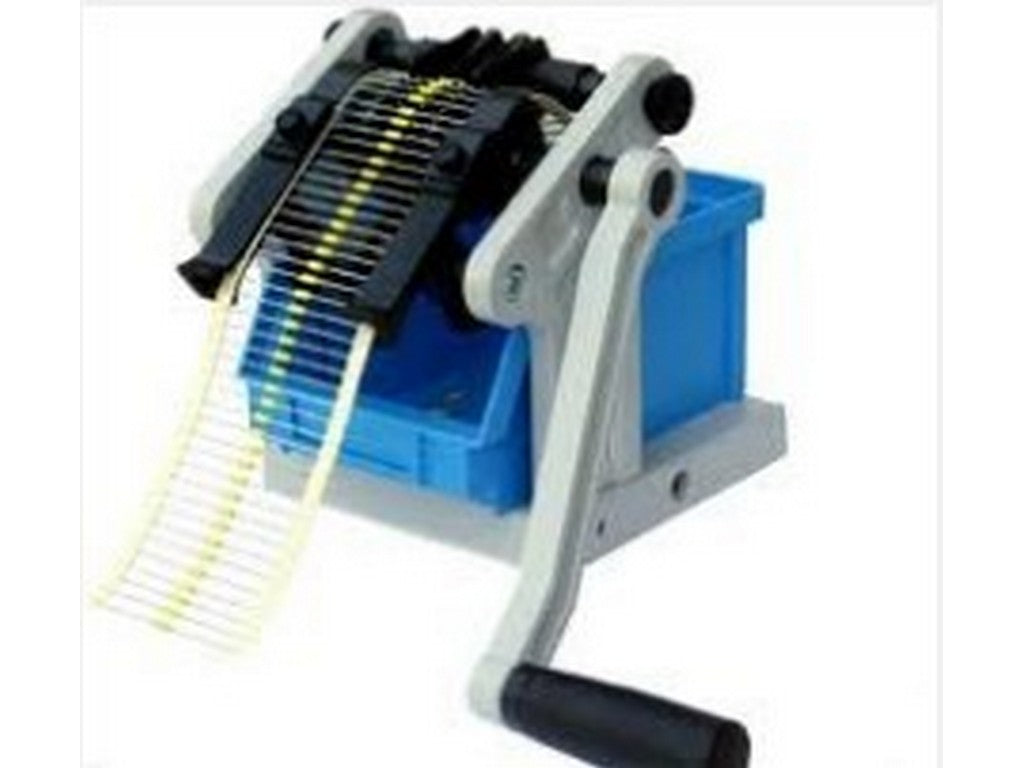

The CUTBEND is a manual cutting and bending machine for axial (taped) electronic components. The device is manually operated and is designated by the manufacturer as Type Cutbend 0.8mm, Art. No. 920.1000. The machine is designed to handle taped components and performs both lead cutting and bending in a single operation.
Function and Construction
- Manual cutting and bending function for axial (taped) components.
- Interchangeable cutting and bending wheels, allowing for processing of lead diameters specified by the manufacturer.
- The unit is mounted on a workbench using the included screw clamp and can be adjusted with a setting gauge.
Installation and Adjustment
The CUTBEND is mounted on a workbench with the included M6 screw clamp and adjusted for various component dimensions using the provided setting gauge. Cutting and bending wheels can be replaced to adapt the machine's setup to the specified lead diameter. For a detailed spare parts overview and component designations, please refer to the manufacturer's documentation.
Typical Applications
The confirmed purpose of the CUTBEND is the processing of axial (taped) electronic components, where the component leads need to be cut and/or bent in connection with further handling or assembly. The machine is used where manual, mechanical cutting and bending of leads are desired to be performed stationary from a workbench.
Specifications
- Product: CUTBEND
- Type/Art. No.: Type Cutbend 0.8mm / Art. No. 920.1000
- Function: Manual cutting and bending machine for axial (taped) electronic components
- Capacity (according to manufacturer): Up to 40,000 components per hour
- Processing range for lead diameter (according to manufacturer): from 0.5 mm up to 1.2 mm
- Mounting: Fixed to workbench with included screw clamp
- Adjustment: Adjustable for various component dimensions using a setting gauge
- Setup: Interchangeable cutting and bending wheels
