STAUBLI 33.0500

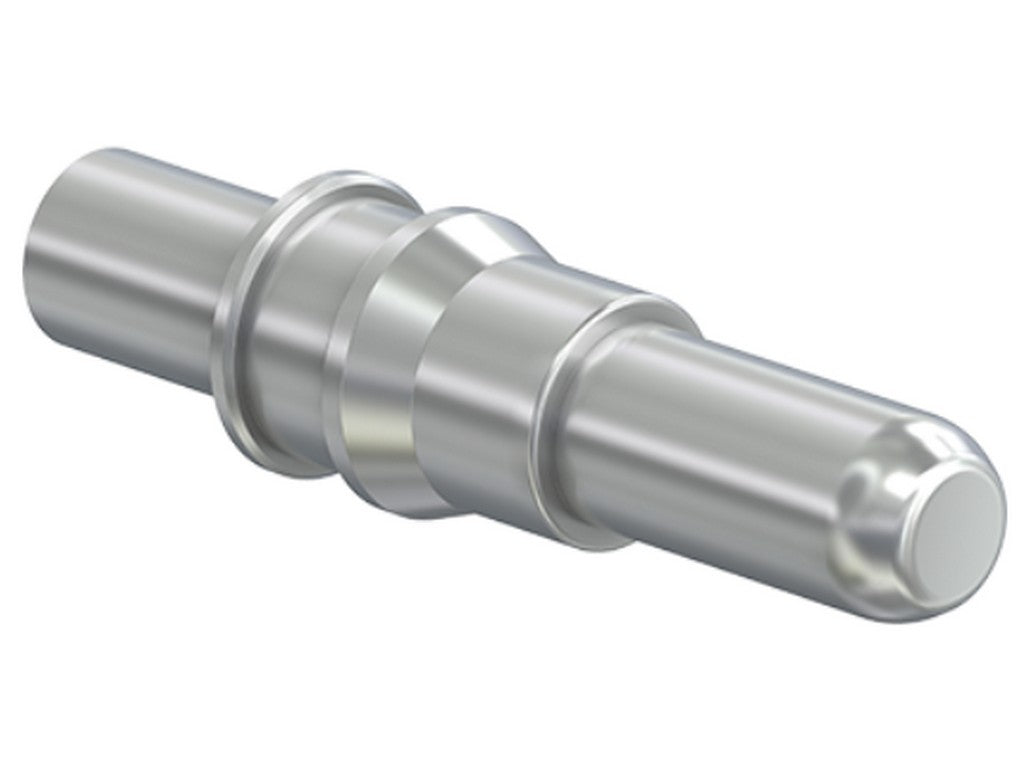

33.0500 is a contact for the Stäubli CombiTac system with a contact diameter of 8 mm. It is used as part of a modular industrial connector, where several connections are combined in the same frame or housing. In practice, it is a spare part or component when a power connection needs to be built into a CombiTac system.
The contact is designed for copper conductors and is terminated with crimp. This means that the conductor is pressed firmly into the contact with a suitable crimping tool, ensuring a stable and repeatable connection. The surface is silver-plated, and it is rated with a nominal current of 66 A and a conductor cross-section of 10 mm² (AWG 8).
It fits contact carriers such as CT-E8-2 and CT-E8-2-IP2X. This is important because the contact itself is not used alone; it is part of a contact carrier system where mechanics and electrics work together.
If you work with CombiTac, this is precisely the type of contact you choose when power needs to be transferred safely and space-efficiently in a modular design.
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0500
- Product family: CombiTac
- Contact type: CT-SP8/10 AG
- Contact diameter: Ø 8 mm
- Conductor cross-section: 10 mm²
- AWG: 8
- Rated current: 66 A
- Termination: Crimp (type C)
- For copper conductors
- Surface: Ag (silver)
- Compatible contact carriers: CT-E8-2 and CT-E8-2-IP2X
