Product Overview

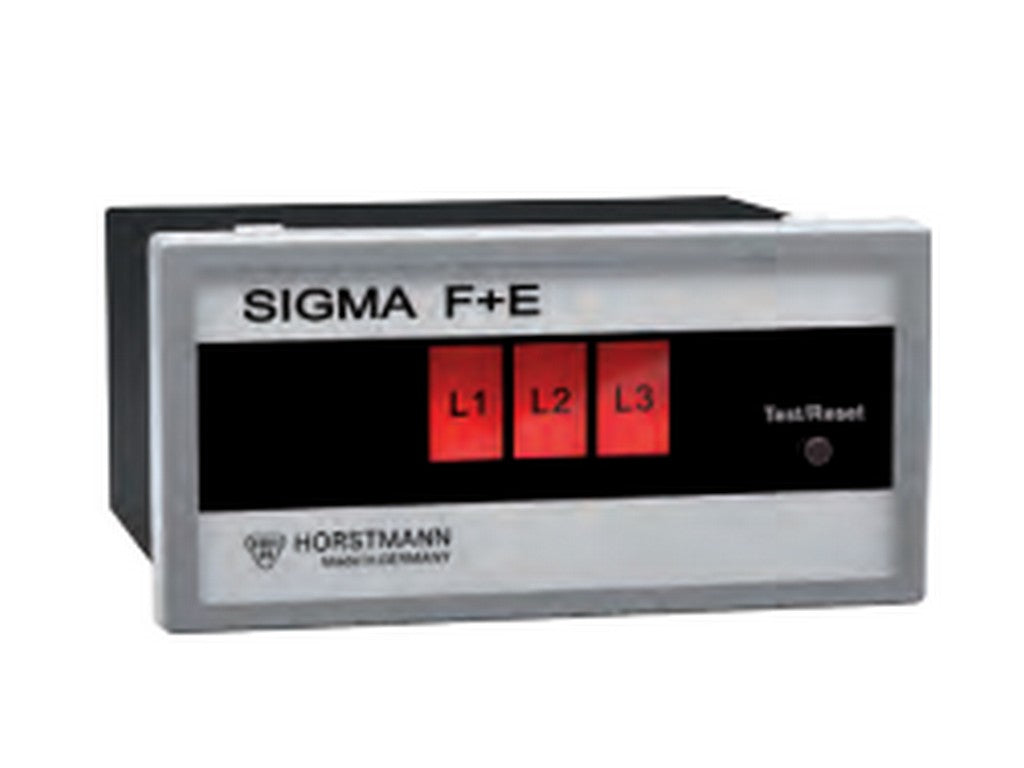

The Sigma F+E 2.0 is a combined short-circuit and earth-fault indicator for cable networks, developed by HORSTMANN. The device measures current via three single-phase current sensors and provides phase-selective fault detection for short circuits and earth faults. The Sigma F+E 2.0 offers both fixed trip values and a self-adjusting short-circuit detection depending on the operating current.Features
- Phase-selective fault indication with three single-phase current sensors.
- Short-circuit trip values: 200, 300, 400, 600, 800, 1,000 and 2,000 A.
- Earth-fault trip values: 20, 40, 60, 80, 100, 120 and 160 A.
- Trip delays: Short circuit 40 or 80 ms; earth fault 80 or 160 ms.
- Option for self-adjustment of short-circuit response relative to operating current (IB).
- Reset via push-button, remote reset or automatic time-based reset (1, 2, 4 or 8 hours).
- AC/DC variant with external auxiliary voltage 24–230 V AC/DC as well as transformer-powered version.
- Internal long-life lithium cell (lifespan ≥20 years) and in AC/DC variant capacitor backup up to 8 hours.
Typical Applications
- Used in underground cable networks for the detection and indication of short circuits and earth faults, including phase-selective identification.
Documentation
Specifications
- Product: Sigma F+E 2.0
- Manufacturer: HORSTMANN
- Manufacturer's article number: 37-2111-101
- Measurement principle: Three single-phase current sensors, phase-selective fault detection
- Short-circuit trip (I>>): 200, 300, 400, 600, 800, 1,000, 2,000 A
- Short-circuit trip delay (tI>>): 40 ms or 80 ms
- Earth-fault trip (IE>): 20, 40, 60, 80, 100, 120, 160 A
- Earth-fault trip delay (tIE>): 80 ms or 160 ms
- Trip tolerance: ±5 % (0–630 A), ±10 % (>630 A)
- Remote signalling: 2 potential-free relay contacts; contact rating: 230 V AC / 1 A / 62.5 VA max.; 220 V DC / 1 A / 60 W max.
- Reset: Test/reset button, remote reset, automatic time (1/2/4/8 h)
- Supply: Transformer-powered; AC/DC variant: 24–230 V AC/DC
- Internal energy: Long-life lithium cell, lifespan ≥20 years; AC/DC variant capacitor backup max. 8 h
- Housing/material: Polycarbonate, IP40
- Temperature range: −40 °C to +70 °C
- Test function: Trip values can be lowered to 10 A for testing without changing DIP settings
