Phase Current Transformer: Horstmann 49-6011-040

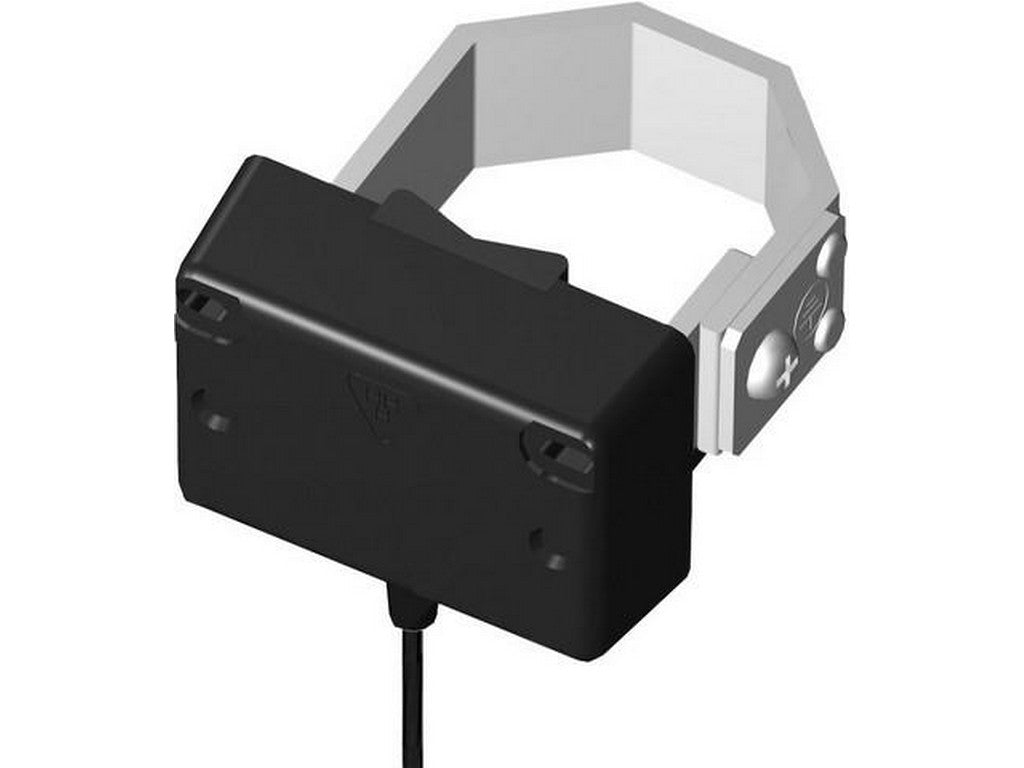

The Horstmann 49-6011-040 is a phase current sensor/phase current transformer designed for mounting on shielded and grounded cables. The device is specified for use with Horstmann Alpha M and Alpha E fault and short-circuit indicators and is identified on the manufacturer's product list with article number 49-6011-040.
Function and compatibility
- Product: Horstmann 49-6011-040 (phase current sensor/phase current transformer).
- Compatible with: Horstmann Alpha M and Alpha E short-circuit/earth fault indicators (as stated by the manufacturer).
- Mounting: For mounting on shielded and grounded cables (as stated by the manufacturer).
Typical applications
This product is used as a phase current sensor in conjunction with Horstmann Alpha M and Alpha E short-circuit and earth fault indicators. The sensor's design makes it suitable for direct mounting on shielded and grounded cables within the dimensions specified by the manufacturer.
Physical requirements (verified)
- Cable diameter: suitable for conductors with a diameter from 15 mm to 52 mm (as stated by the manufacturer).
- Leads/length: this variant has a lead length of 3.00 m (as stated by the manufacturer).
Specifications
- Manufacturer: HORSTMANN.
- Manufacturer's article number / Type: 49-6011-040.
- Product category: phase current sensor / phase current transformer (as stated by the manufacturer).
- Compatibility: Horstmann Alpha M and Alpha E indicators.
- Cable diameter (suitable for): 15 – 52 mm.
- Conductor length: 3.00 m.
Sources
Referenced information is based solely on the manufacturer's product text for article number 49-6011-040. Further technical documents and downloads can be found via the manufacturer's download area (login may be required).
Content generated by AI – subject to errors.
Contact HIN for further information about the product.
