Product Overview
DERAY-IAKT is an adhesive-lined, thin-walled heat shrink tubing made of cross-linked polyolefin, designed for moisture-resistant insulation and environmental sealing. The material is available in both 3:1 and 4:1 shrink ratios and is developed to provide a combination of electrical insulation and sealing via internal adhesive, which bonds to a range of substrates.Features and Functions
- Adhesive-lined interior that bonds to plastic, rubber, steel, polyethylene, and other materials.
- Thin-walled, cross-linked polyolefin properties as stated in the manufacturer's documentation.
- Specified shrink temperature at least 95 °C and continuous operating temperature from -55 °C to 110 °C.
Documentation
For technical details and dimension tables: See manufacturer's datasheet
Typical Applications

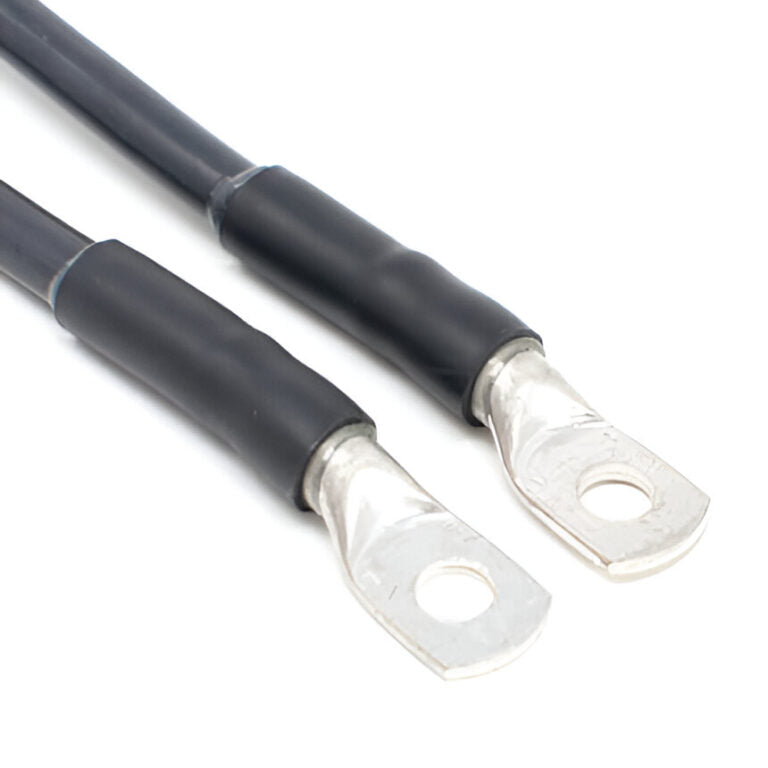

- Environmental sealing and strain relief for connectors and terminals.
- Moisture protection and electrical insulation of simple inline splices.
- Abrasion protection for pipes and hoses.
- Repair of damaged cable supplies or wire harnesses.
Specifications
- Product Name: DERAY-IAKT
- Material: Cross-linked, modified polyolefin
- Adhesive: Internal adhesive, bonds to plastic, rubber, steel, polyethylene and other materials
- Shrink Ratio: 3:1 and 4:1
- Minimum Shrink/Activity Temperature: 95 °C
- Continuous Operating Temperature: -55 °C to 110 °C
- Dielectric Strength: 22 kV/mm (stated in manufacturer's technical data)

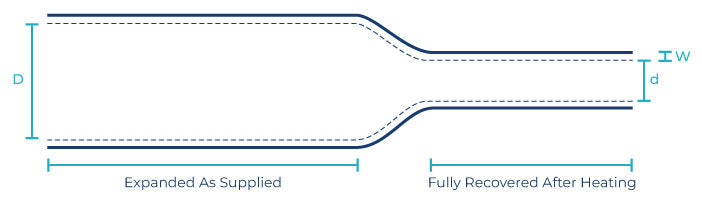

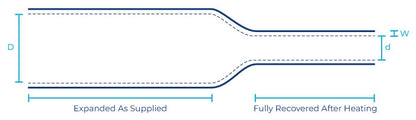

- Example Size (3:1): expanded outer inner diameter 12.0 mm → recovered inner diameter 4.0 mm
- Delivery Unit for 12.0/4.0 (3:1): 1.22 m (48 in) as stated in the datasheet
Content generated using AI – we reserve the right for errors.
