Product Description

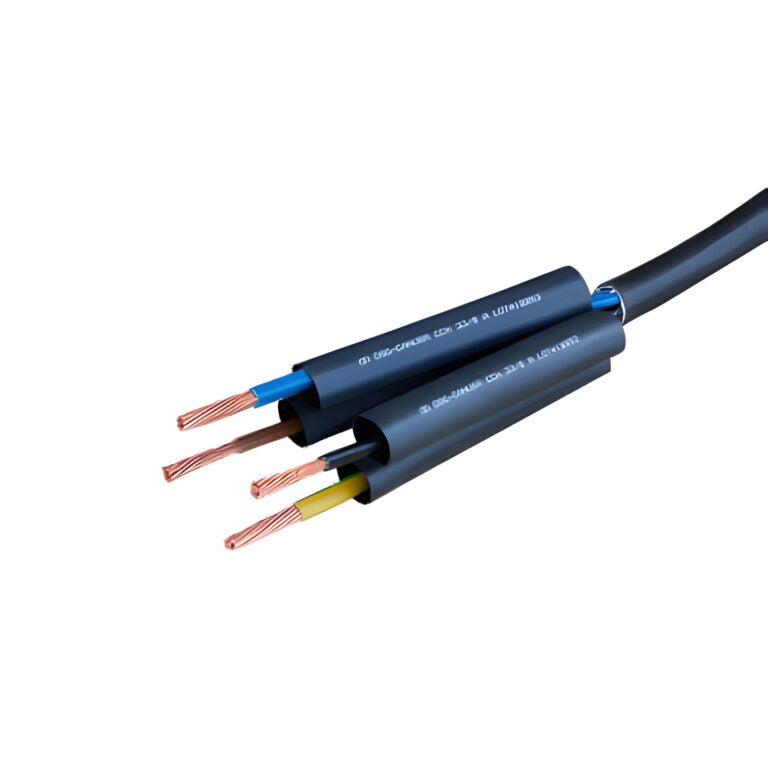

The CCM 40/12 is a medium-wall cross-linked polyolefin heat-shrink tubing from DSG-Canusa. The product category is medium-wall heat-shrink tubing, intended for electrical and mechanical protection of cable splices and terminations. The CCM 40/12 is supplied with an expanded inner diameter of 40.0 mm and a recovered diameter of 12.0 mm, as well as a typical length of 1.22 m.
What it Does
The tubing reduces its diameter when heated, with a specified shrink ratio of 3:1, protecting surrounding components by creating mechanical and electrical insulation. The product is available with an optional thermoplastic hotmelt EVA adhesive liner for complete environmental protection and insulation when this option is selected.
Technical Characteristics and Materials
- Material: modified PE, lead- and cadmium-free
- Shrink ratio: 3:1
- Minimum shrink temperature: 120°C
- Continuous operating temperature: -55°C to 110°C
- Optional inner adhesive liner: Hotmelt EVA
Typical Applications
- Cable jacket repair
- Retrofit protection of connector joints
- Low-voltage cable splices
- Conduit repair
For detailed technical information and a complete table of dimensions, please consult the manufacturer's datasheet.
See datasheet from the manufacturer
Specifications
- Product name: CCM 40/12
- Manufacturer: DSG-Canusa
- Order/MPN: 6640400952A12

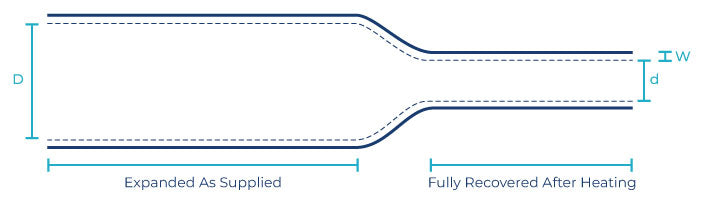

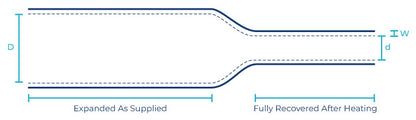

- Expanded inner diameter: 40.0 mm
- Recovered inner diameter: 12.0 mm
- Typical length: 1.22 m
- Total wall thickness (nom.): 2.70 mm
- Shrink ratio: 3:1
- Minimum shrink temperature: 120°C
- Continuous operating temperature: -55°C to 110°C
- Material: modified polyethylene (PE), lead- and cadmium-free
- Dielectric strength: 20 kV/mm
- Volume resistivity: 1e14 Ω·cm
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
