STAUBLI 15.0651C5-20

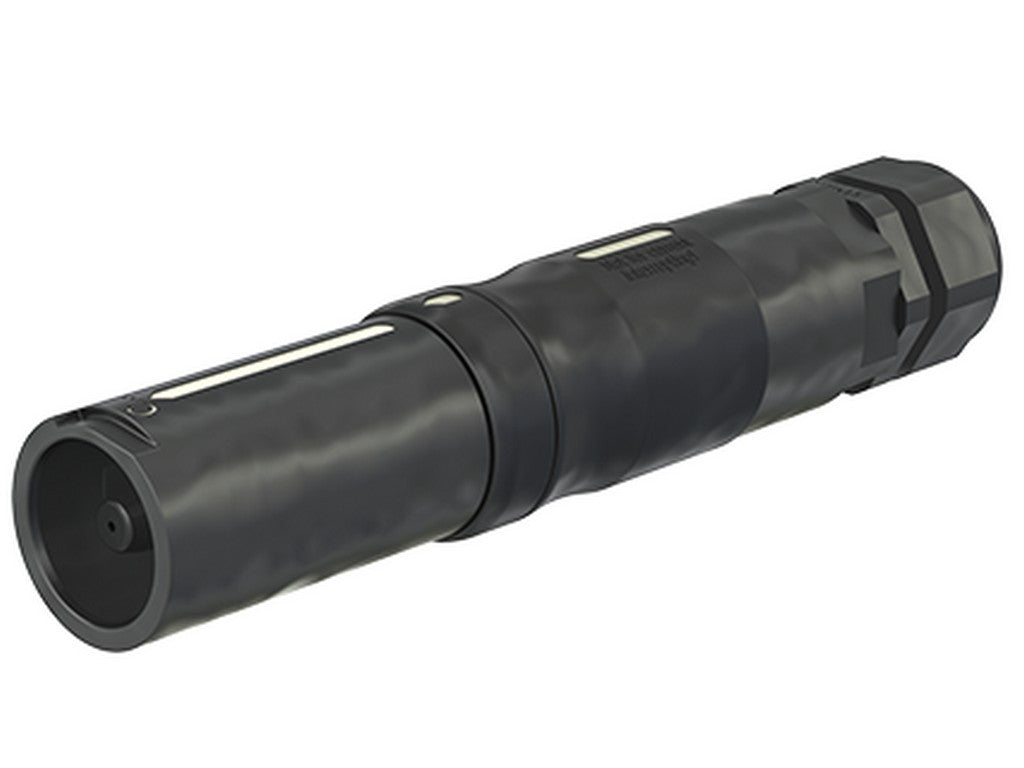

This is a single-pole, insulated connector from Stäubli's 10BV series. It is used when high current needs to be safely conducted in a connection that also needs to be quick to connect and disconnect in practice. The solution is developed for professional installations where requirements for touch safety, locking, and stable connection are present.
The connector has a bayonet lock, so it connects with a distinct twisting motion, and the connection is mechanically locked. This makes it easier to work quickly while reducing the risk of a loose connection. It features AxiClamp termination, designed for conductor cross-sections of 50 mm² and 70 mm². The cable gland is for a cable diameter of 13–25 mm.
In this size class, the verified catalog data specifies a rated current of 250 A and a rated voltage of 1000 V. It is therefore a component that belongs in live systems where a robust and compact plug connection is needed. Stäubli also indicates mechanical and color coding to prevent incorrect connections and keep track of individual connections in an installation.
When ordering in the 15.0651C... range, the color code C1 to C5 must be specified.
See datasheet from the manufacturer
Typical applications
Stäubli describes the 10BV series as suitable for temporary power supply and industrial environments where high current conduction and a safe, quick connection are required.
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0651C5-20
- Series: 10BV
- Type: single-pole, insulated connector
- Locking: bayonet lock
- Termination: AxiClamp
- Live cross-section: 50 mm² and 70 mm²
- Cable diameter: 13–25 mm
- Rated current: 250 A
- Rated voltage: 1000 V
- Color code: C1 to C5 must be specified when ordering
