Ball-end terminal bolt with steel threaded pin, diameter 20 mm and thread M12 x 30 — product overview
This product is the Ball-end terminal bolt with steel threaded pin, diameter 20 mm and thread M12 x 30 from HORSTMANN (Art.-Nr. 63-0102-001). The product is listed on the manufacturer's product page with a remarkable short-circuit withstand current Ir of 18.7 kA/tr = 1 s. The ball-end terminal bolt is designed with a steel threaded pin and supplied with specified materials for the different variants.
Materials and variants

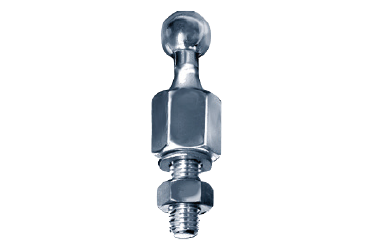

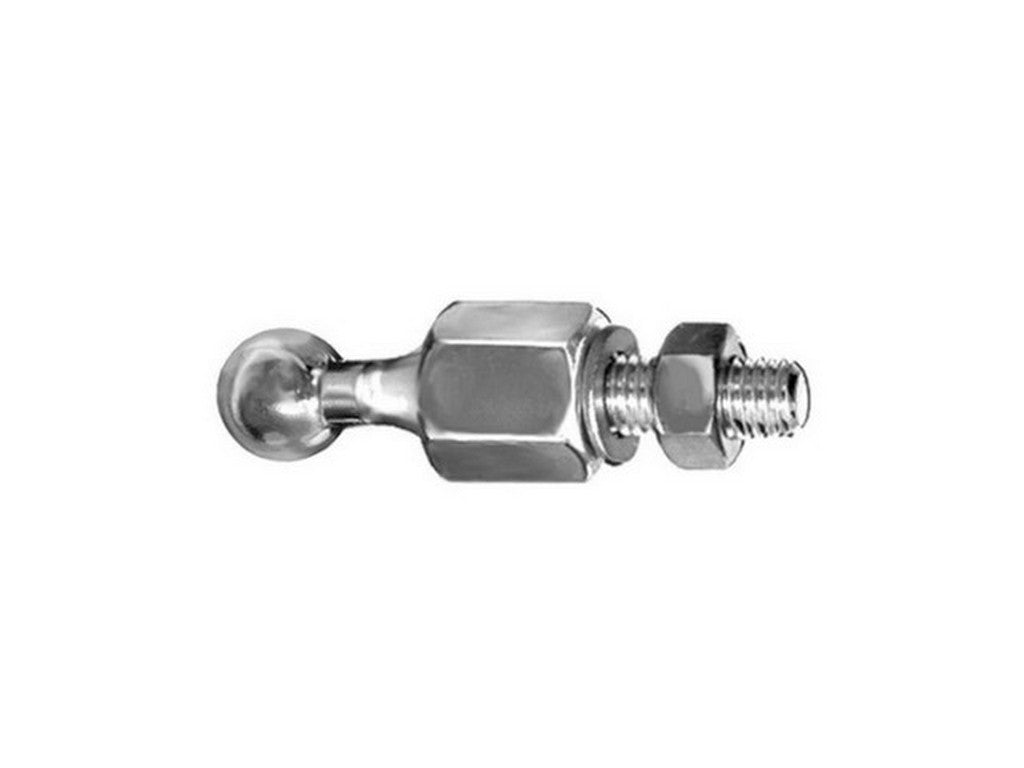

- Smooth, straight ball-end terminal bolt: material E-Cu, tin-plated (verzinnt).

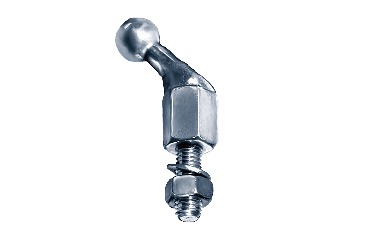

- Angled ball-end terminal bolt: material CuCr, tin-plated (verzinnt).
The Ball-end terminal bolt with steel threaded pin, diameter 20 mm and thread M12 x 30 is listed as a removable component with the specified article number and rated value Ir 18.7 kA/tr = 1 s.
Typical applications
The product is verified on the manufacturer's site as being applicable for the following functions:
- Use as a Phasenanschluss (phase connection).
- Use for Stromschienenverschraubung (busbar connection).
Installation notes
The manufacturer's product page emphasizes that correct assembly and adherence to the prescribed tightening torque are important during installation to ensure function and mechanical retention. This must be followed during mounting.
Specifications
- Product name: Ball-end terminal bolt with steel threaded pin, diameter 20 mm and thread M12 x 30.
- Manufacturer: HORSTMANN.
- Article number: 63-0102-001.
- Diameter: 20 mm.
- Thread: M12 x 30.
- Rated value Ir: 18.7 kA / tr = 1 s.
- Material (straight): E-Cu, tin-plated.
- Material (angled): CuCr, tin-plated.
- Applications: Phasenanschluss; Stromschienenverschraubung.
- Installation note: Follow correct assembly and prescribed tightening torque.
See product information at the manufacturer
