EPA Warning Sign from DESCO

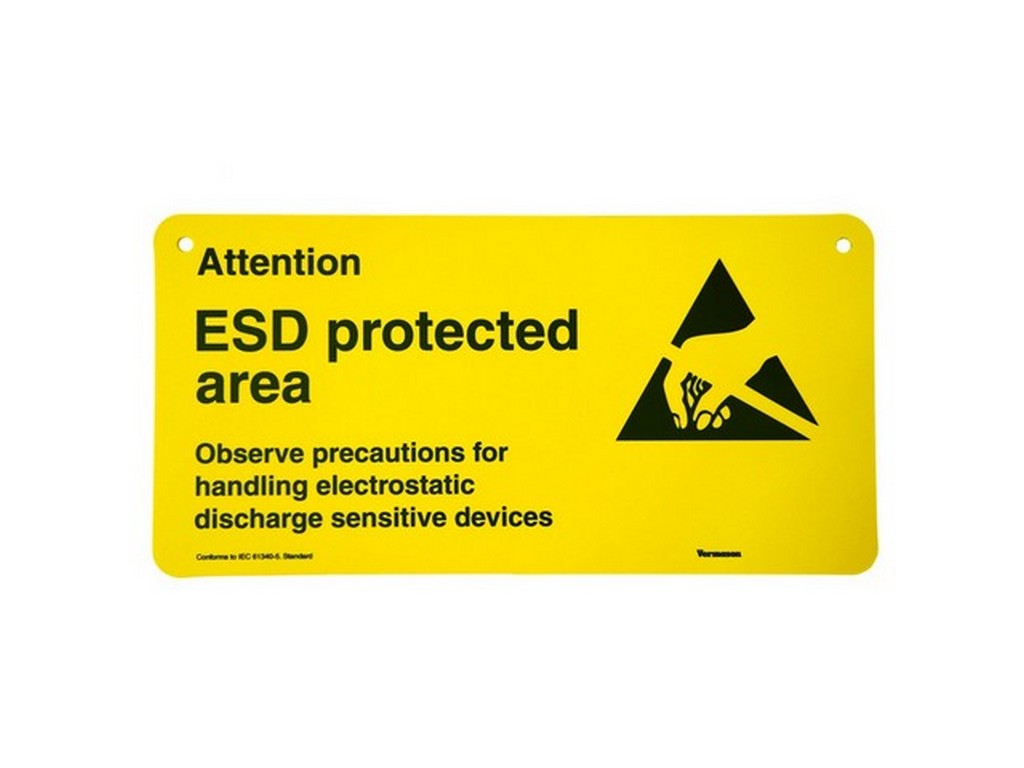

This EPA warning sign from DESCO (DESCO part 229135) is a rigid, rectangular sign designed to identify ESD Protected Areas (EPA). DESCO part 229135 is specified in the manufacturer's drawing/datasheet from December 2017 and is made of PVC foam sheet with print, including the Vermason logo and ESD sensitivity symbol in accordance with EN 61340-5-1 and CLC/TR 61340-5-2.
Material and Construction
- Material: PVC foam sheet
- Construction: rigid sign with two hanging holes
- Print: Text and ESD sensitivity symbol printed with Vermason logo
The documentation includes manufacturer information and a drawing dated December 2017. For technical details and manufacturer contact, please refer to the official datasheet.
See datasheet from the manufacturer
Typical Applications
The sign is used to indicate and draw attention to defined ESD Protected Areas (EPA) and provides a clear message to personnel and visitors. The drawing indicates that permanent EPA areas must have defined boundaries; examples of EPA forms mentioned in the documentation include:
- a bench
- a store
- an area of work, work station
- equipment such as a solder flow machine (example mentioned in the documentation)
The description of applications is based directly on the content of the manufacturer's drawing/datasheet.
Specifications
- Drawing number: 229135
- Size: 300 mm x 150 mm
- Thickness: 3 mm
- Material: PVC foam sheet
- Hanging: 2 holes for hanging
- Print: Text and ESD sensitivity symbol in accordance with EN 61340-5-1 and CLC/TR 61340-5-2
- Printed with Vermason logo
- Manufacturer information and date: Desco Europe, drawing dated December 2017
