Product Overview

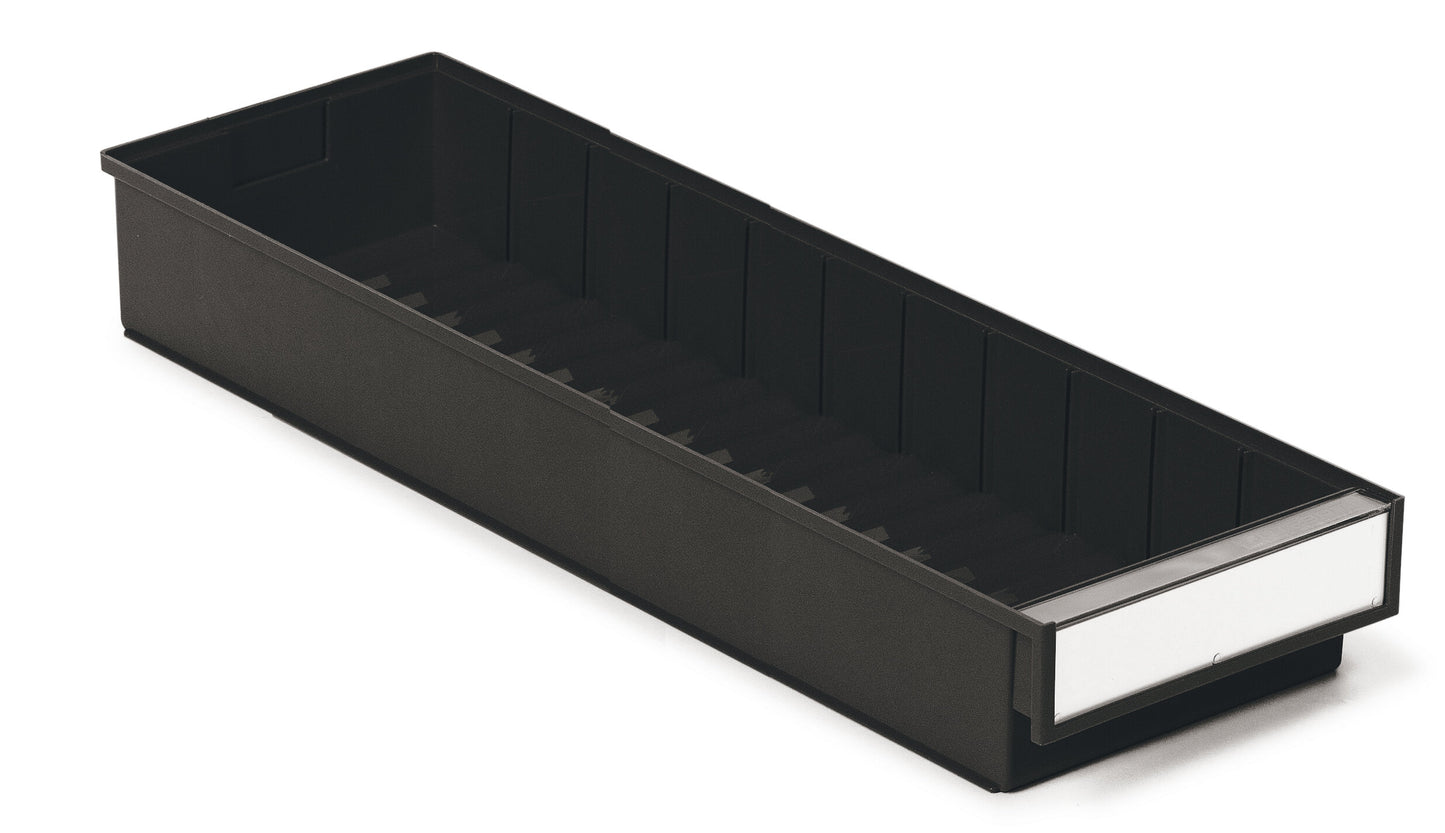

This shelf bin from TRESTON, product code 6020-4ESD, is an ESD-protected storage unit made of semiconductive polypropylene (PP). The product is specified with external dimensions of 186 mm (width) × 600 mm (depth) × 82 mm (height) and internal dimensions of 167 mm (width) × 557 mm (depth) with an internal height of 70 mm. The capacity is stated as 6.5 liters. The 6020-4ESD is supplied in packs of 15 units and includes a full-width label with a protective shield S-20M.Material and Environmental Properties
- Frame: semiconductive polypropylene (PP)
- ESD protected: yes
- Cleaning and chemical resistance: withstands the effects of oils, most acids, and solvents
- Suitable for cleanrooms: yes
- Temperature tolerance: -20…+70 °C
Typical Applications
- Fits standard metric shelves
- Can be used in cabinets
- Can be installed in paternoster systems
- Can be used at industrial workstations
Design and Functional Details
- External and internal dimensions as stated above
- Corrugated base prevents items from sliding and facilitates picking up small parts
- Different depths can be stacked securely, even if widths are the same
- Colour: black
For technical reference and complete product information, please refer to the manufacturer's datasheet below.
View datasheet from manufacturer
Specifications
- Product code: 6020-4ESD
- External dimensions: 186 × 600 × 82 mm (W × D × H)
- Internal dimensions: 167 × 557 × 70 mm (W × D × H)
- Capacity: 6.5 liters
- Frame material: semiconductive polypropylene (PP)
- ESD protected: Yes
- Quantity per pack: 15
- Included accessories: full-width label with protective shield S-20M
- Suitable for cleanrooms: Yes
- Temperature tolerance: -20…+70 °C
- Chemical resistance: withstands oils, most acids, and solvents
- Colour: black
- Warranty: 5 years
