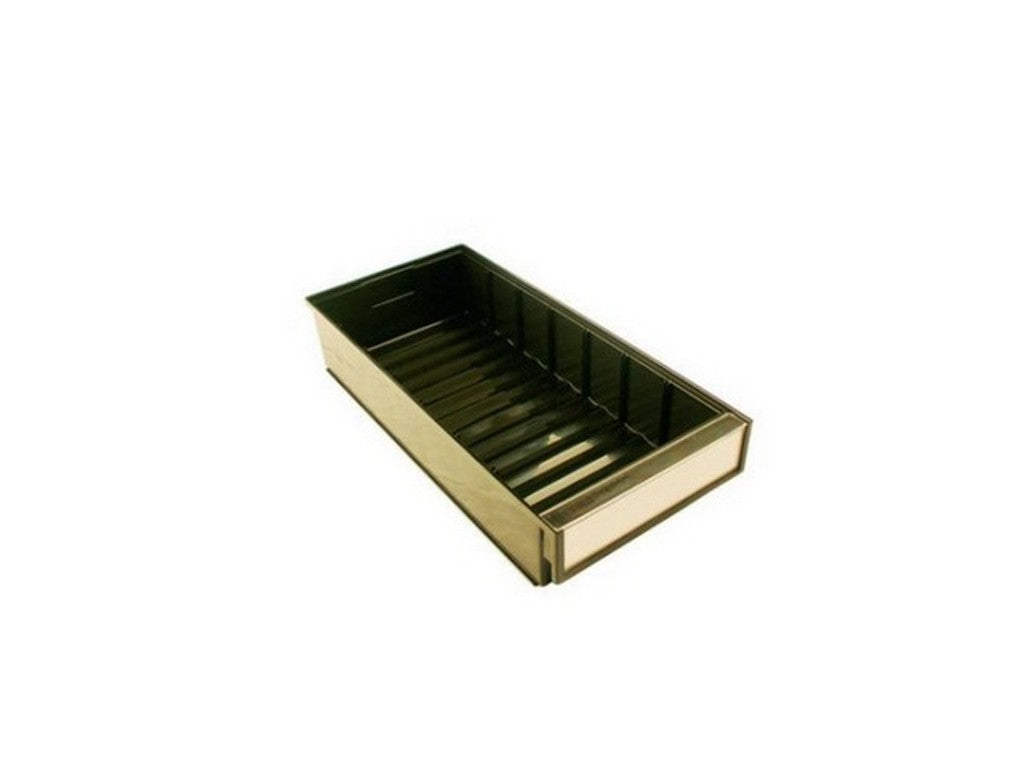

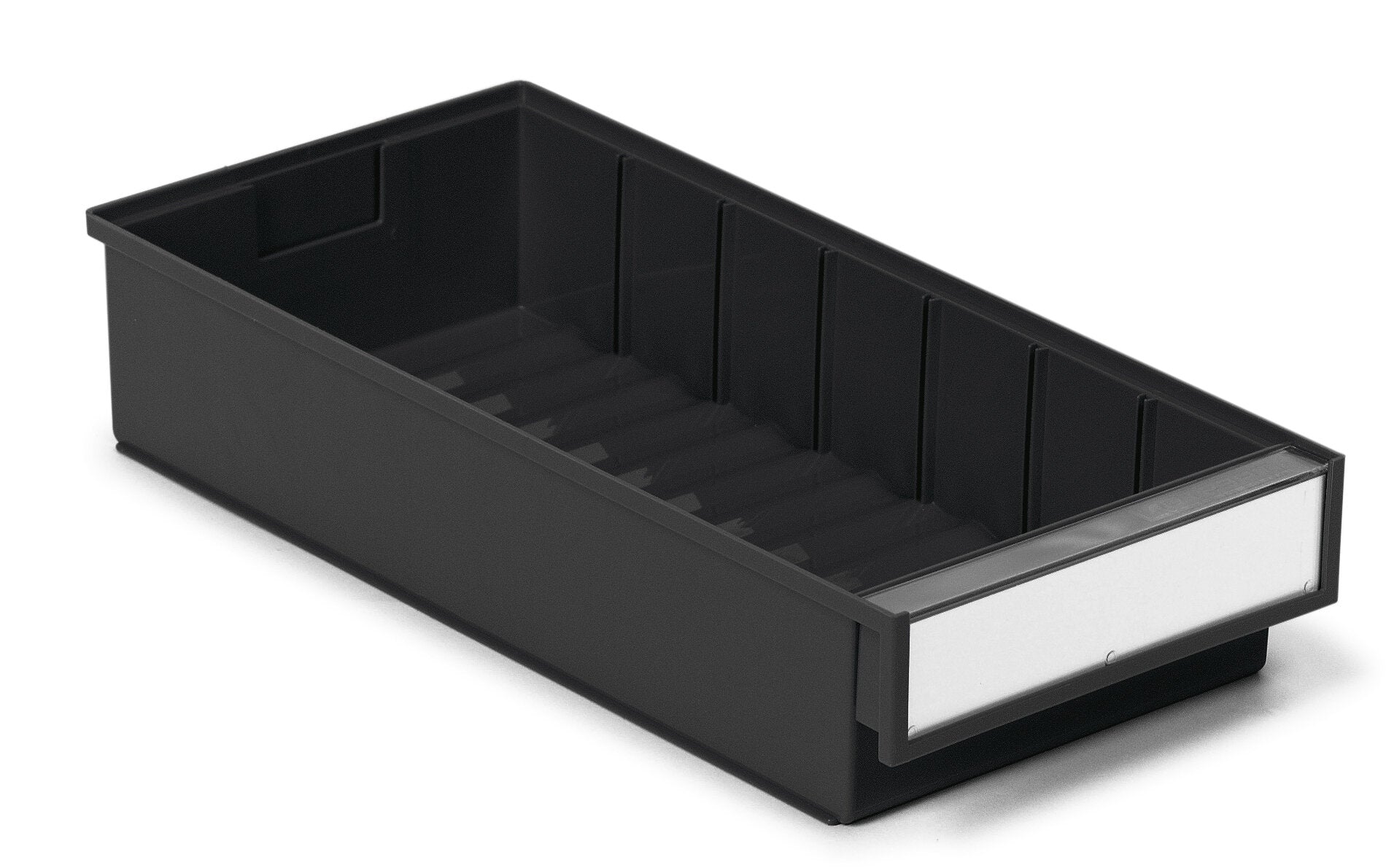

Shelf Bin: Product Code 4020-4ESD
Product code 4020-4ESD is a shelf bin from TRESTON, supplied in packs of 15. The product is made of semiconductive polypropylene (PP) and is specified as ESD-protected and suitable for cleanroom use. The external and internal dimensions, as well as material properties, are documented by the manufacturer.
Technical Characteristics
- External dimensions: Width 186 mm, Depth 400 mm, Height 82 mm
- Internal dimensions: Width 167 mm, Depth 357 mm, Height 70 mm
- Material: Semiconductive polypropylene (PP)
- ESD: Yes
- Suitable for cleanroom: Yes
- Temperature tolerance: -20…+70°C
- Chemical resistance: Resists the effects of oils, most acids, and solvents
- Capacity: 4.2 L
Typical Applications
According to the manufacturer's documentation, shelf bin 4020-4ESD is designed to fit the following configurations:
- Standard metric shelf
- Cabinets
- Paternosters
- Industrial workstations
The description states that bins of the same width can be safely stacked, even with different depths, and that the straight sides optimize space utilization. The corrugated base prevents small items from sliding and facilitates gripping when picking.
Packaging and Accessories
- Pack size: 15 pcs. per pack
- Pack dimensions (mm): Width 410, Depth 580, Height 400
- Pack weight: 6.9 kg
- Includes: Label and protective shield S-20M
- Available accessories: Cross divider D-20-4ESD, label for divider 1792
Sources
See datasheet from the manufacturer
Specifications
- Product code: 4020-4ESD
- EAN-code: 6416763039777
- External dimensions: 186 × 400 × 82 mm
- Internal dimensions: 167 × 357 × 70 mm
- Material: Semiconductive polypropylene (PP)
- ESD: Yes
- Suitable for cleanroom: Yes
- Temperature tolerance: -20…+70°C
- Chemical resistance: Resists the effects of oils, most acids, and solvents
- Capacity: 4.2 L
- Pack quantity: 15 pcs. per pack
- Pack dimensions and weight: 410 × 580 × 400 mm, 6.9 kg
- Included accessories: Label and protective shield S-20M
- Available accessories: Cross divider D-20-4ESD; label for divider 1792
- Other: Corrugated base prevents items from sliding
The content is AI-generated – we reserve the right for errors.
Contact HIN for further product information.
