Amprobe LAN-1 Cable Tester
The Amprobe LAN-1 Cable Tester is a cable tester for installing and troubleshooting network cables and related cable types. It is used to quickly check whether a cable is correctly connected, or if there are breaks, short circuits, or wiring errors. This is precisely the type of check needed when an installation needs to be verified in practice, without having to search for the fault for a long time first.

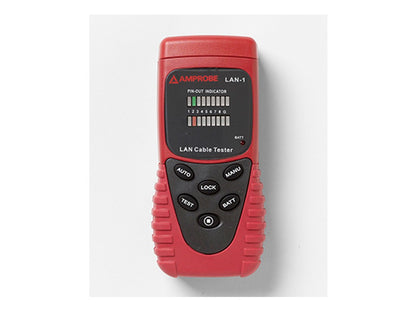

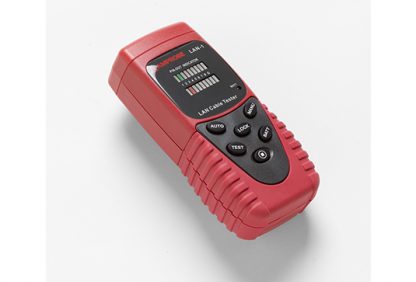

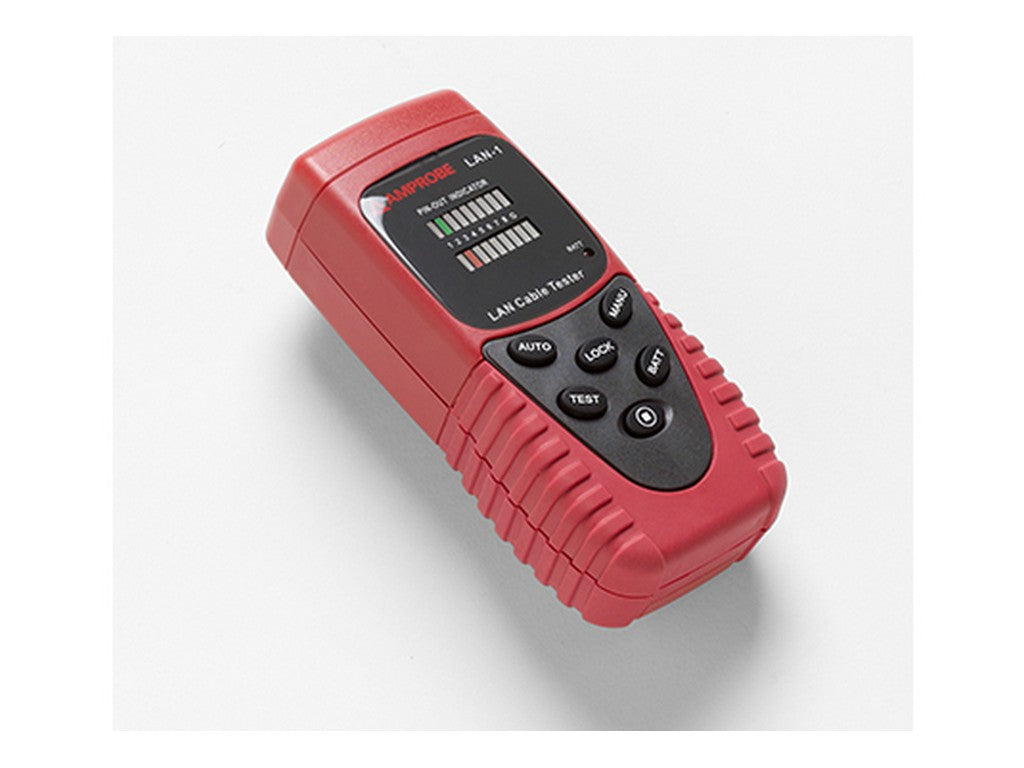

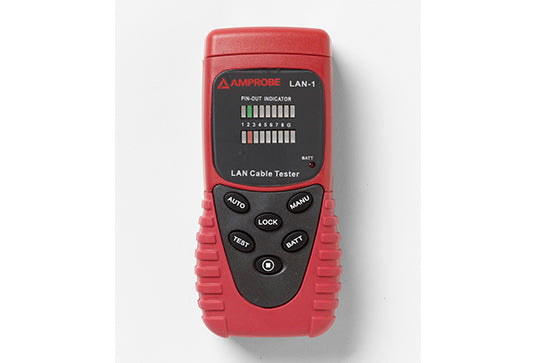

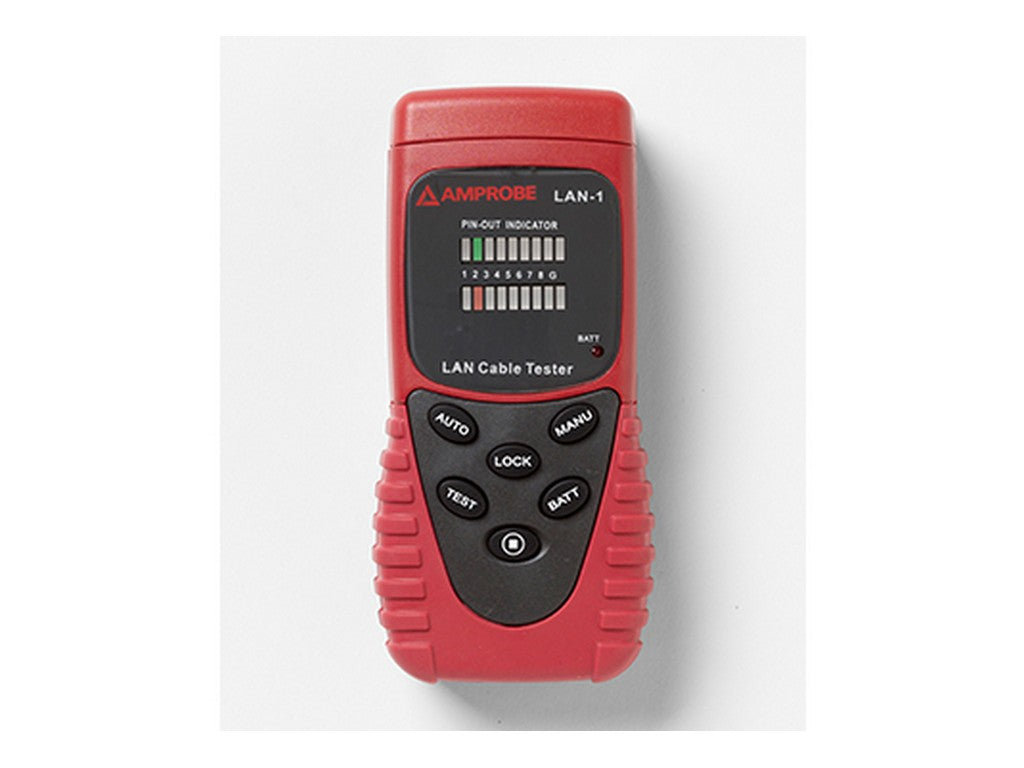

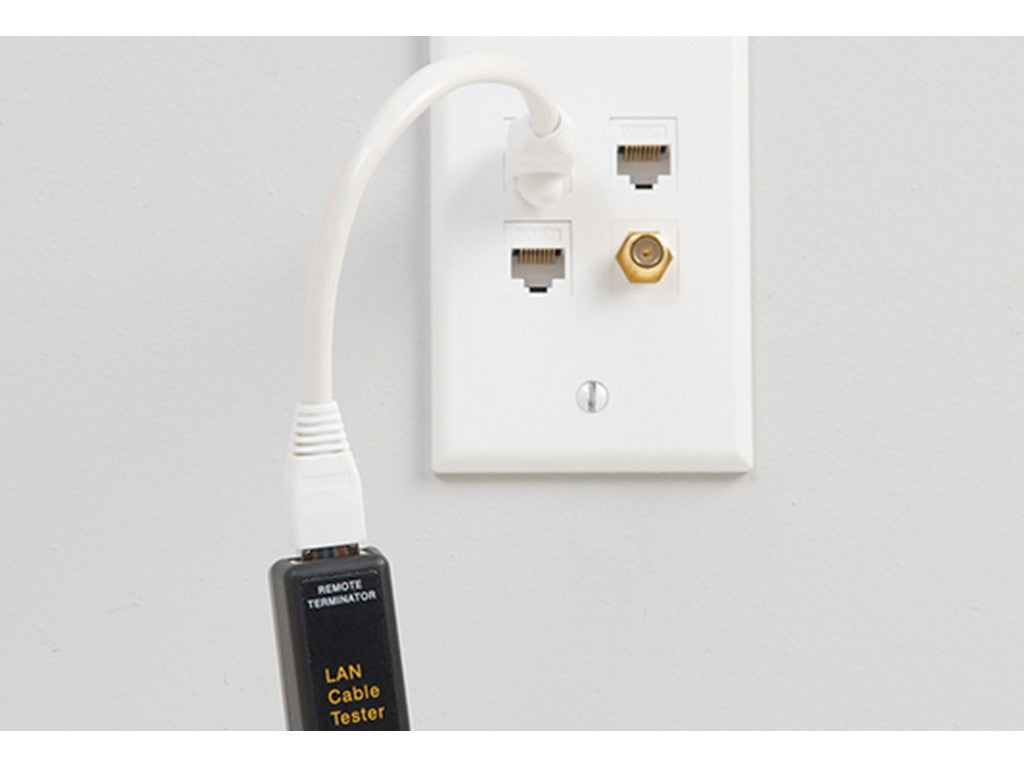

The tester's LED display provides a simple go/no-go reading, showing the result directly. It has two sets of LED indicators for source and test, making it easy to work with when following the cable run step by step. It is also possible to test installed cables via the remote terminator, which is practical for wall outlets and patch panels.
The LAN-1 can be used on 10/100 base-T, 10 base-2, RJ45, AT T 258A, EIA/TIA 568A/568B, and Token Ring cables. It supports RJ45 and BNC connections and has a continuity length of more than 300 meters. The power supply is a standard 9-volt battery, and both a remote terminator and several connecting cables are included in the package.
Typical applications
This type of cable tester is typically used by technicians, electricians, and installers when a network or data cabling needs to be verified after installation or during troubleshooting.
- Checking for open connections, short circuits, and incorrect wiring

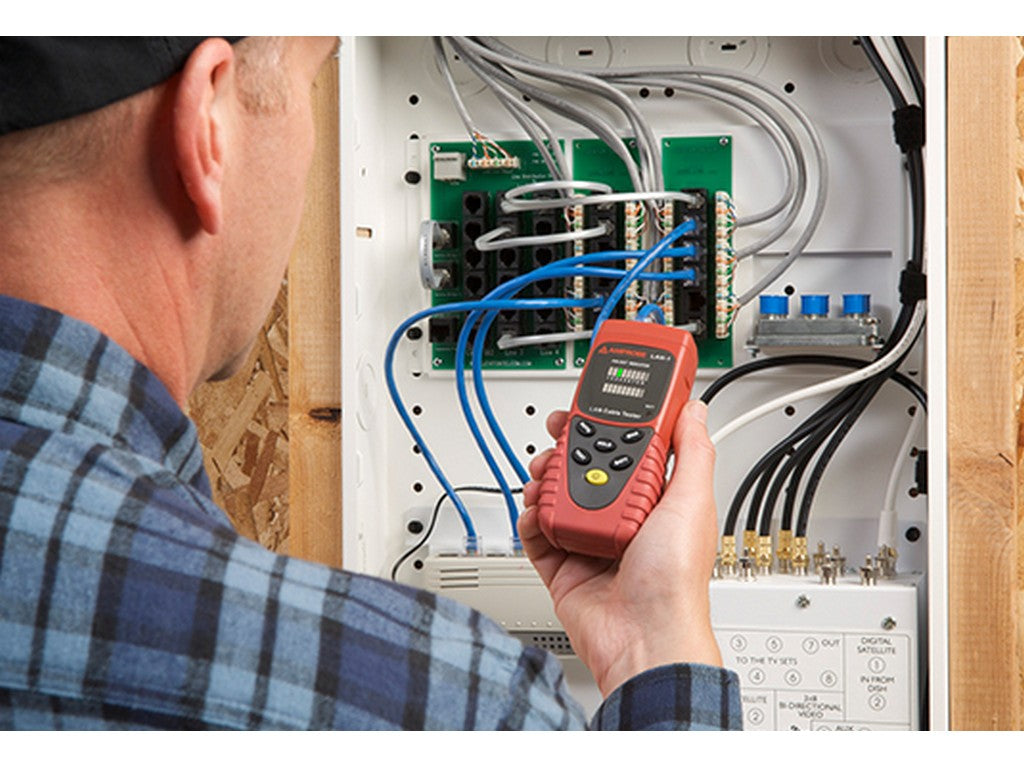

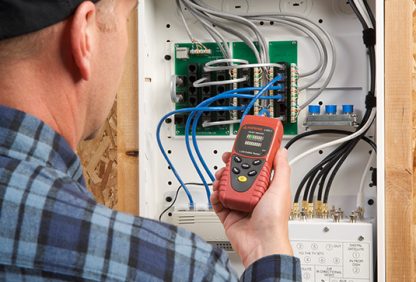

- Testing installed cables at wall outlets and patch panels
- Troubleshooting RJ45 and BNC-based cables
Specifications
- Manufacturer: AMPROBE
- MPN: 3052401
- GTIN/EAN: Not stated in the verified data
- Cable types: 10/100 base-T, 10 base-2, RJ45, AT T 258A, EIA/TIA 568A/568B, Token Ring
- Connector types: RJ45, BNC
- Continuity length: > 300 meters
- Display: 18 LEDs, distributed as 9 red and 9 green, plus 9 LEDs on the remote module
- Power supply: 9-volt battery, NEDA 1604A / JIS 006P / IEC 6F22

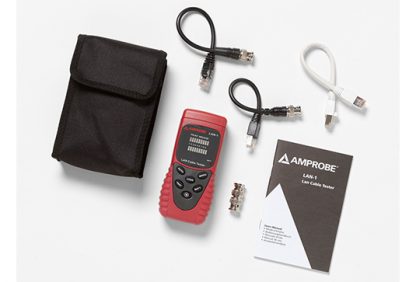

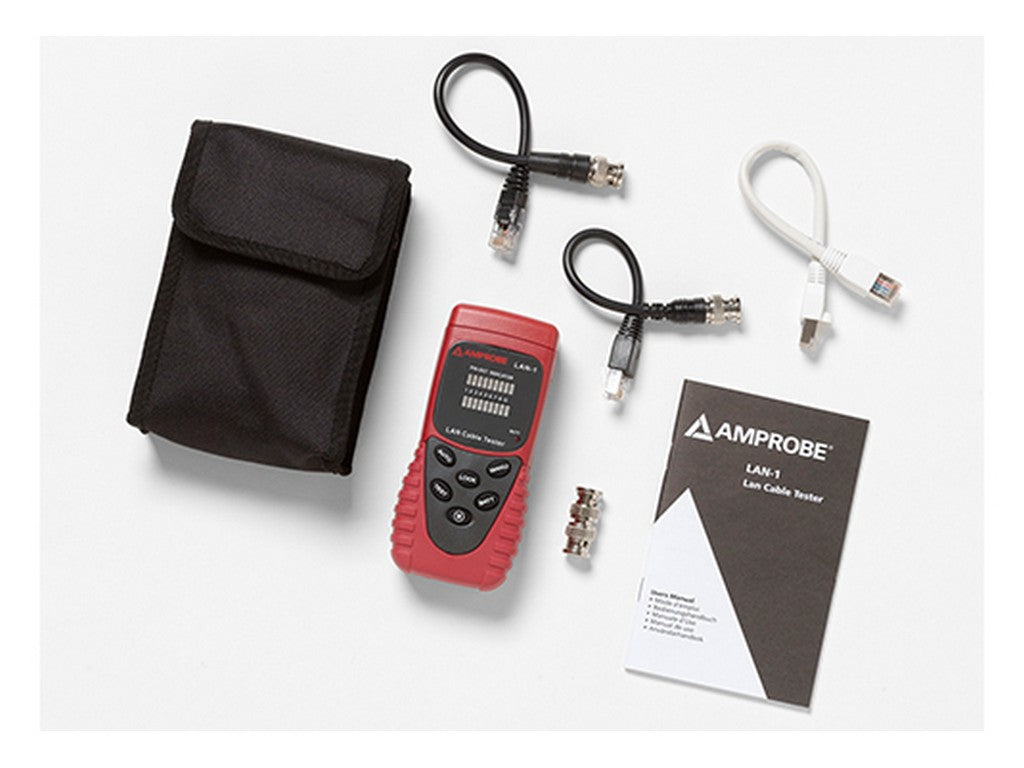

- Comes with remote terminator, RJ45 to female BNC cable, RJ45 to male BNC cable, RJ45 to RJ45 cable, female BNC to female BNC cable, and batteries installed
- Datasheet: See datasheet from the manufacturer
