Product Overview

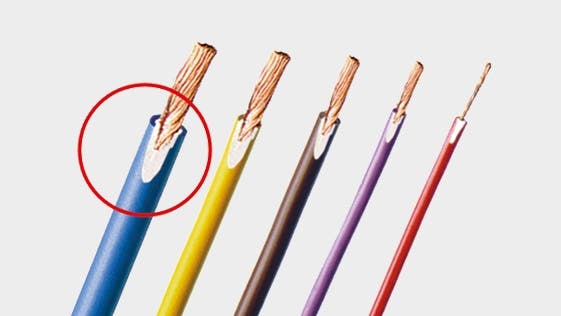

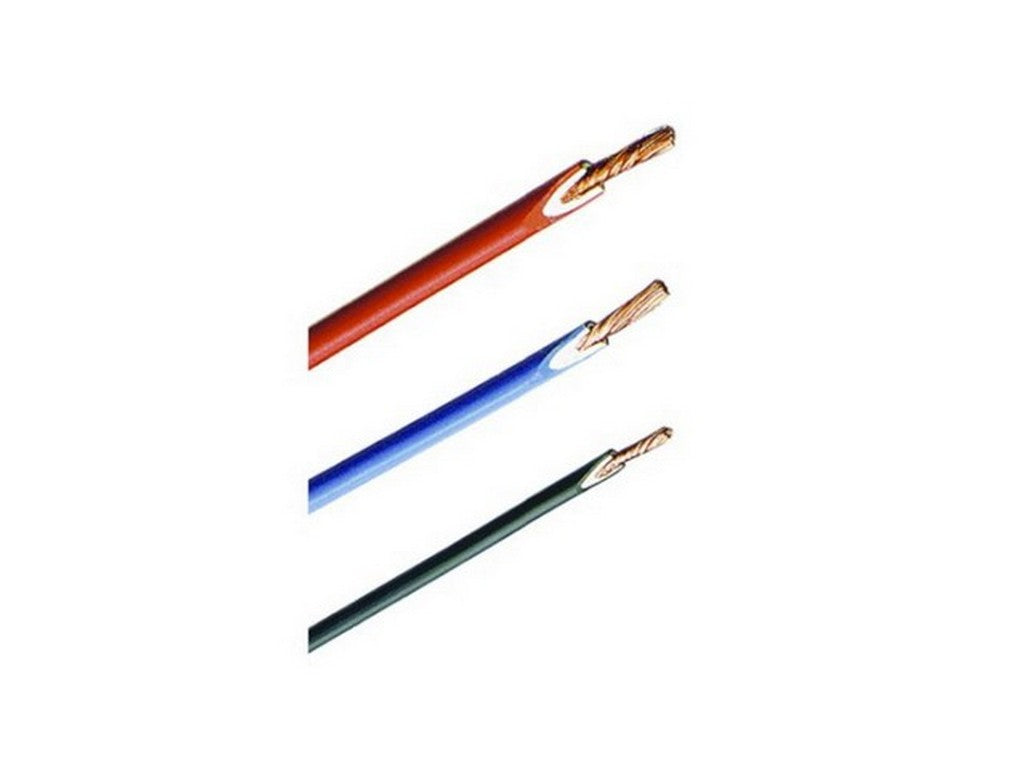

The FLEXI-2V 0.75 is a highly flexible multi-stranded wire from STAUBLI with a conductor cross-section of 0.75 mm² and reinforced, double-layer PVC insulation. The product is identified by item number 60.7028-*. Rated values for voltage and current are specified on the manufacturer's datasheet.Construction and Approvals
- Conductor type: highly flexible multi-stranded conductor
- Insulation: reinforced, double-layer PVC
- Approvals: UR, CE, UKCA, EAC (specified on the datasheet)
Technical Properties
- Conductor cross-section: 0.75 mm²
- Strand design: 196 x 0.07
- Conductor diameter: 1.25 mm
- Cable diameter: 3.5 mm
- Insulation thickness: 1.1 mm
- Rated values: AC 1000 V, 15 A / DC 1500 V, 15 A
- Temperature range: -10 °C … +70 °C
Sources
Documentation and technical data are taken from the manufacturer's datasheet.
View datasheet from manufacturerSpecifications
- Product name: FLEXI-2V 0.75 (item number 60.7028-*)
- Conductor cross-section: 0.75 mm²
- Rated: AC 1000 V, 15 A; DC 1500 V, 15 A
- Strand design: 196 x 0.07
- Conductor diameter: 1.25 mm
- Cable diameter: 3.5 mm
- Insulation thickness: 1.1 mm
- Insulation material: PVC (double-layer, reinforced)
- Temperature range: -10 °C … +70 °C
- Weight: 18.0 kg/km
- Approvals: UR, CE, UKCA, EAC
- Datasheet revision: 02.2025
- Manufacturer: STAUBLI
