Product Overview

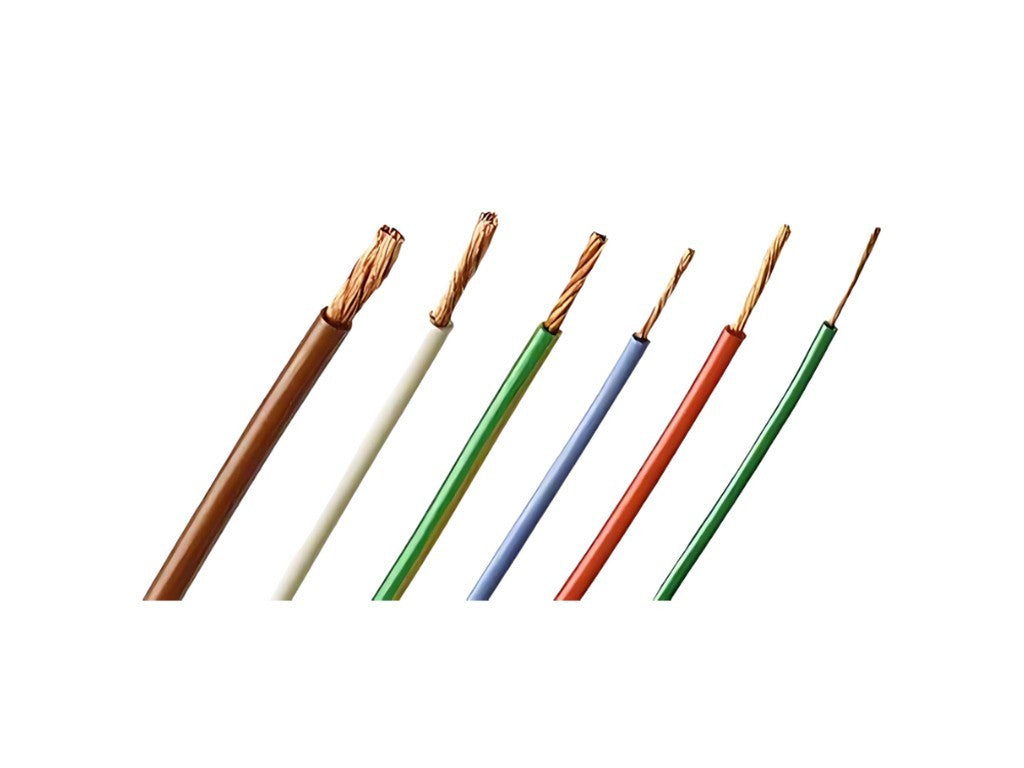

The FLEXI-E 0.10 (item number 60.7001-*) is a flexible, insulated stranded conductor cable from STAUBLI. The product is specified as a basic flexible insulated conductor with a conductor cross-section of 0.10 mm² and nominal values of AC 150 V and 2 A.
Material and Construction
The FLEXI-E 0.10 features a stranded conductor with a strand design of 26 × 0.07 mm. The conductor diameter is stated as 0.4 mm, and the total cable diameter is 1.0 mm. The insulation material is PVC with an insulation thickness of 0.3 mm. The stated conductor weight is 1.8 kg/km.
Safety and Approvals
The cable is listed with CE, UKCA, and EAC approvals as stated by the manufacturer.
Documentation
Further technical details and manufacturer information can be found in the official datasheet from STAUBLI:
View datasheet from the manufacturer
Specifications
- Product name: FLEXI-E 0.10 (item number 60.7001-*)
- Manufacturer: STAUBLI
- Conductor cross-section: 0.10 mm²
- Nominal values: AC 150 V, 2 A
- Strand design: 26 × 0.07 mm
- Conductor diameter: 0.4 mm
- Cable diameter: 1.0 mm
- Insulation material: PVC
- Insulation thickness: 0.3 mm
- Temperature range: −10 °C ... +70 °C
- Conductor weight: 1.8 kg/km
- Approvals: CE, UKCA, EAC
