Product Overview

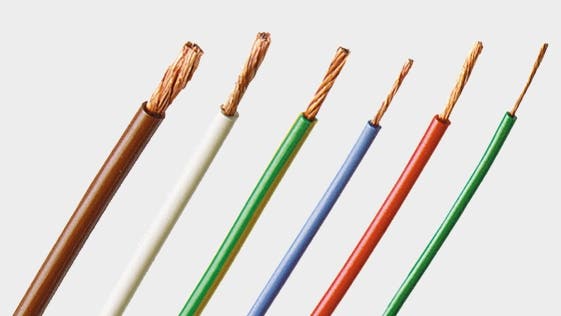

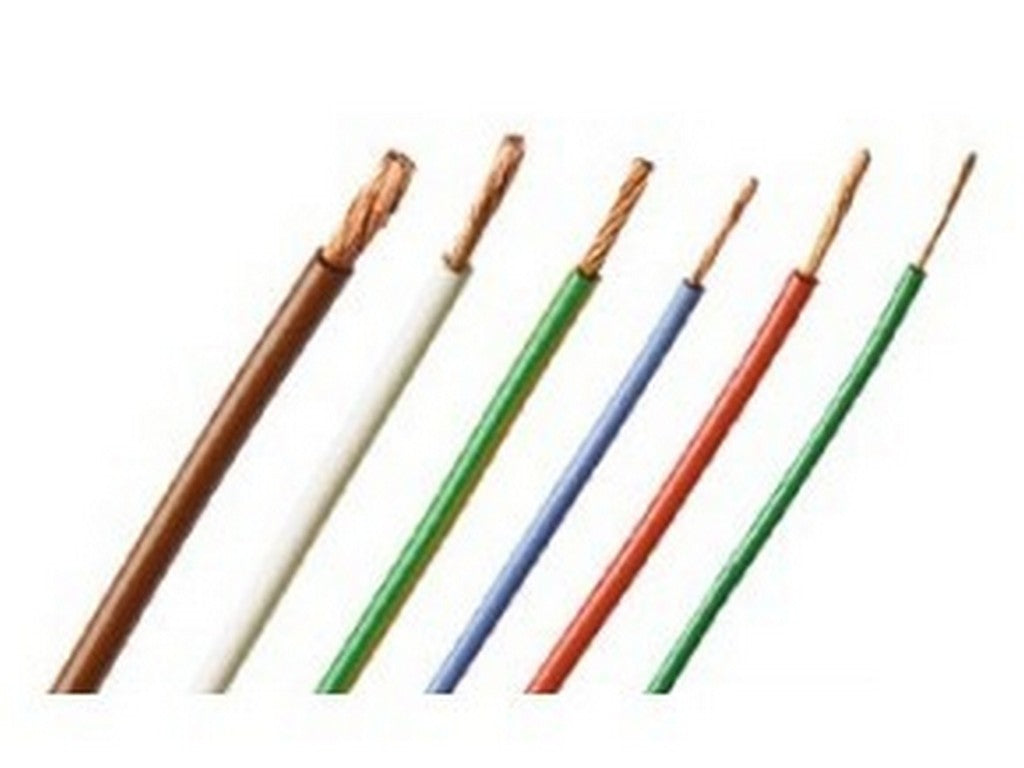

The FLEXI-E 0.25 from STAUBLI is a highly flexible, basic insulated multi-stranded wire with a conductor cross-section of 0.25 mm². The product is documented in the manufacturer's datasheet and is specified with article number 60.7003-10023.
Technical Description
- Conductor: 66 strands of 0.07 mm (66 x 0.07)
- Conductor diameter: 0.65 mm
- Cable outer diameter: 1.7 mm
- Insulation thickness: 0.5 mm
- Insulation material: PVC
- Rated values: AC 500 V, 6 A
- Temperature range: -10 °C to +70 °C
Documentation
Specifications and approvals are stated in the manufacturer's datasheet. For further technical details and official documentation, please refer to the manufacturer's datasheet:
Approvals
The datasheet states approvals: CE, UKCA, and EAC. The revision date of the datasheet is 02.2025.
Specifications
- Product name: FLEXI-E 0.25
- Manufacturer: STAUBLI
- Manufacturer part number: 60.7003-10023
- Conductor cross-section: 0.25 mm²
- Strand design: 66 x 0.07 mm
- Conductor diameter: 0.65 mm
- Cable diameter: 1.7 mm
- Insulation thickness: 0.5 mm
- Insulation material: PVC
- Rated values: AC 500 V, 6 A
- Temperature range: -10 °C to +70 °C
- Lead weight: 4.8 kg/km
- Approvals: CE, UKCA, EAC
- Datasheet revision: 02.2025
