STAUBLI FLEXI-E 0.25

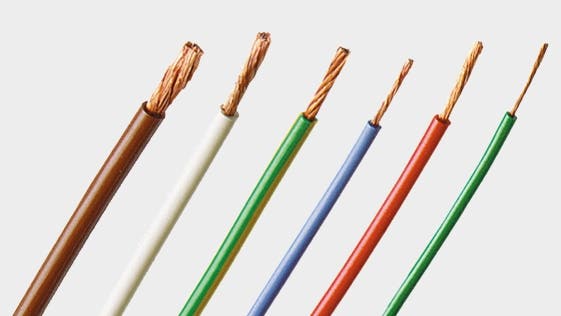

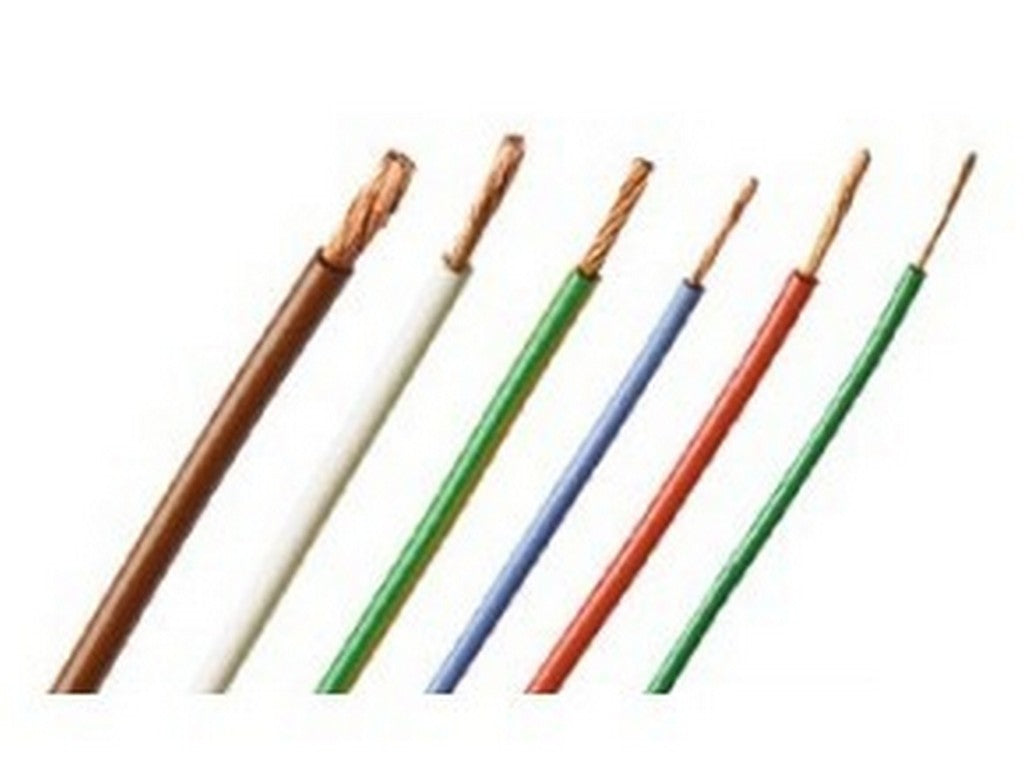

STAUBLI FLEXI-E 0.25 is a highly flexible, basic-insulated stranded wire with a nominal cross-section of 0.25 mm². It is designed for applications where a thin wire is needed, which is still easy to route and work with in a professional electrical and electronics setup.
The special feature of the wire is its fine construction with 66 x 0.07 mm strands. This makes it more flexible than a rigid conductor and helps when space is limited or when the wire needs to be neatly laid in an installation. At the same time, the conductor diameter is 0.65 mm, and the total cable diameter is 1.7 mm.
The wire is rated for AC 500 V and 6 A. It has an insulation thickness of 0.5 mm and a temperature range from -10 °C to +70 °C. The datasheet indicates CE, UKCA, and EAC approvals.
See datasheet from the manufacturer
Typical applications
The wire is typically used where a flexible single conductor is needed for electrical connections in equipment and panels, and where the physical handling of the wire is practically important.
Specifications
- Manufacturer: STAUBLI
- MPN: 60.7003-10024
- Product name: FLEXI-E 0.25
- Nominal cross-section: 0.25 mm²
- Construction: 66 x 0.07 mm
- Conductor diameter: 0.65 mm
- Cable diameter: 1.7 mm
- Insulation thickness: 0.5 mm
- Rated voltage: AC 500 V
- Rated current: 6 A
- Temperature range: -10 °C to +70 °C
- Approvals: CE, UKCA, EAC
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
