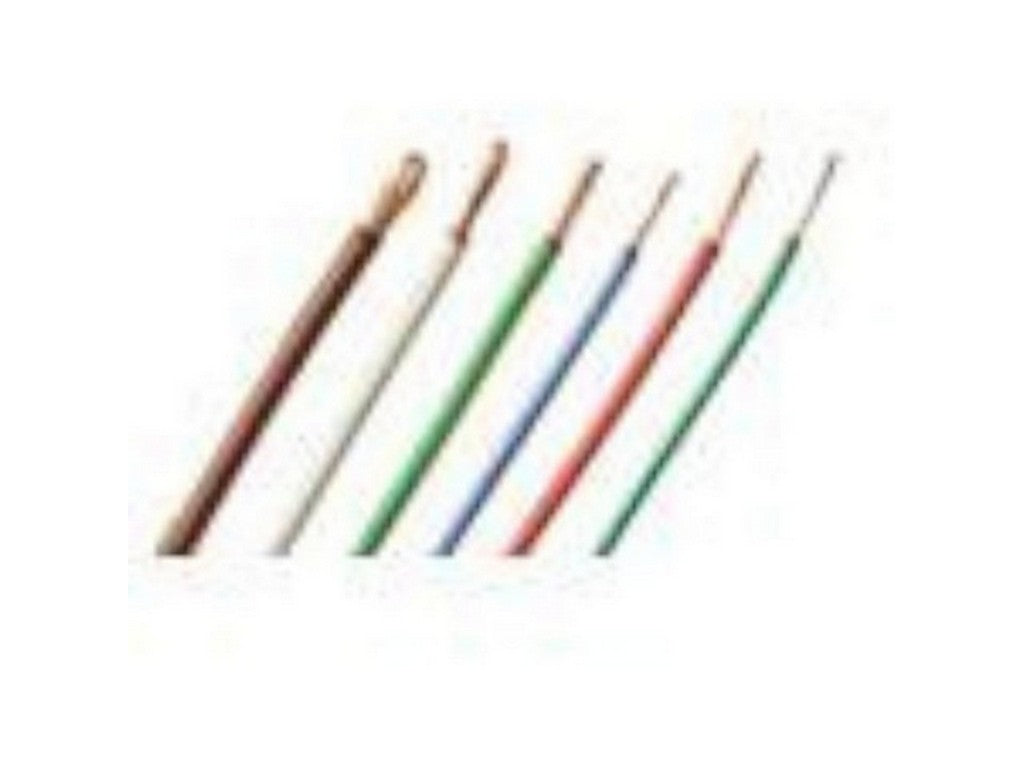

FLEXI-E/HK 0.25 — flexible insulated stranded wire
The FLEXI-E/HK 0.25 from STAUBLI is a highly flexible, basic insulated stranded wire with a conductor cross-section of 0.25 mm². The product is intended as a basic flexible wire and clearly states the conductor and insulation data in the manufacturer's technical documentation.
Technical overview
- Manufacturer: STAUBLI
- Part number: 60.7013-10021 (item number 60.7013-*)
- Conductor: 0.25 mm², strand design 129 x 0.05
- Conductor diameter: 0.7 mm
- Insulation material: PVC
- Insulation thickness: 0.35 mm
- Total cable diameter: 1.4 mm
- Weight: 3.9 kg/km
- Rated values: AC 300 V, 6 A
- Temperature range: -10 °C to +70 °C
- Approvals: CE, UKCA, EAC
Documentation
Further technical details and verification can be found in the manufacturer's datasheet:
See datasheet from manufacturer
Typical applications
- Internal wiring of mobile components under moderate mechanical stress.
- As highly flexible connecting leads for low-voltage laboratory applications.
Specifications
- Product name: FLEXI-E/HK 0.25
- Manufacturer: STAUBLI
- Part number: 60.7013-10021 / 60.7013-*
- Conductor cross-section: 0.25 mm²
- Strand design: 129 x 0.05 (n x Ø mm)
- Conductor diameter: 0.7 mm
- Insulation material and thickness: PVC, 0.35 mm
- Cable diameter: 1.4 mm
- Weight: 3.9 kg/km
- Rated values: AC 300 V, 6 A
- Temperature range: -10 °C … +70 °C
- Approvals: CE, UKCA, EAC
