STAUBLI FLEXI-E/HK 0.50

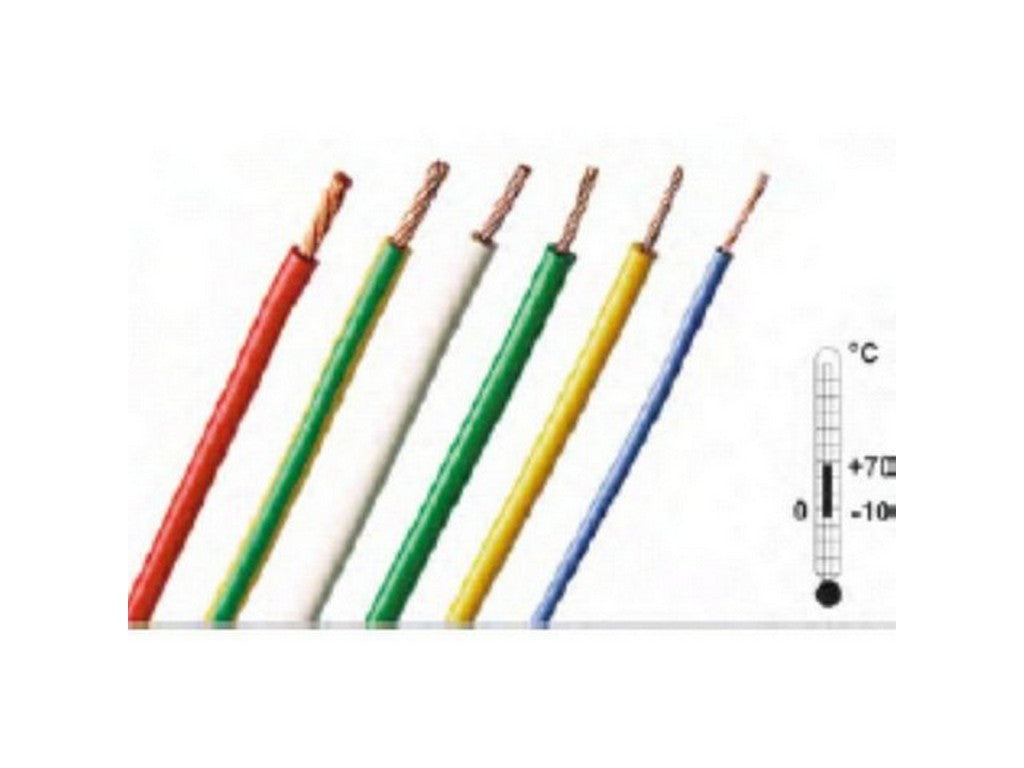

STAUBLI FLEXI-E/HK 0.50 is a highly flexible, basic insulated multi-stranded wire with a nominal cross-section of 0.50 mm². It is designed for applications where a wire is needed that is easy to route into an assembly and can also withstand repeated handling without becoming stiff in use.
The wire is constructed with 256 strands of 0.05 mm, resulting in a conductor diameter of 1.0 mm. The total cable diameter is 2.1 mm. These are useful measurements when the wire needs to be integrated into compact installations, test setups, or other equipment where space is limited.
The insulation is PVC with a wall thickness of 0.55 mm. This means, in practice, that you get a classic wire type for general professional use, with a focus on electrical insulation and clear cable routing. The stated temperature range is from -10 °C to +70 °C, and the nominal values are AC 500 V and 10 A. The catalog also states a test voltage of 6000 V.
STAUBLI FLEXI-E/HK 0.50 is therefore primarily relevant when a flexible wire with known electrical data and a size that fits into technical equipment, instruments, and other professional assemblies is required.
Typical applications
It is typically used in contexts where flexibility and compact dimensions are important, and where the wire needs to be part of a technical assembly with fixed voltage and current requirements.
Specifications
- Manufacturer: STAUBLI
- MPN: 60.7005-10023
- Product name: FLEXI-E/HK 0.50
- Nominal cross-section: 0.50 mm²
- Conductor construction: 256 x 0.05 mm
- Conductor diameter: 1.0 mm
- Outer diameter: 2.1 mm
- Insulation material: PVC
- Insulation thickness: 0.55 mm
- Temperature range: −10 °C to +70 °C
- Nominal voltage: AC 500 V
- Nominal current: 10 A
- Test voltage: 6000 V
- Part number listed as: 60.7005-*
- Standard color codes: 21, 22, 23 (blue), 24, 25 and 29
- See manufacturer's datasheet
