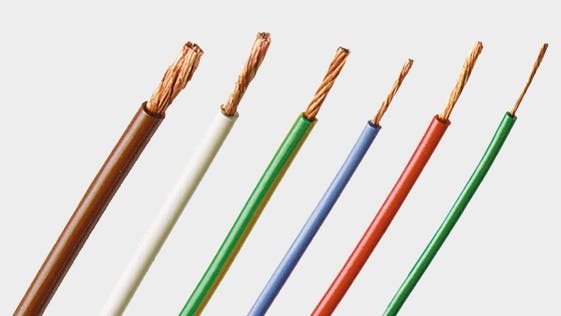

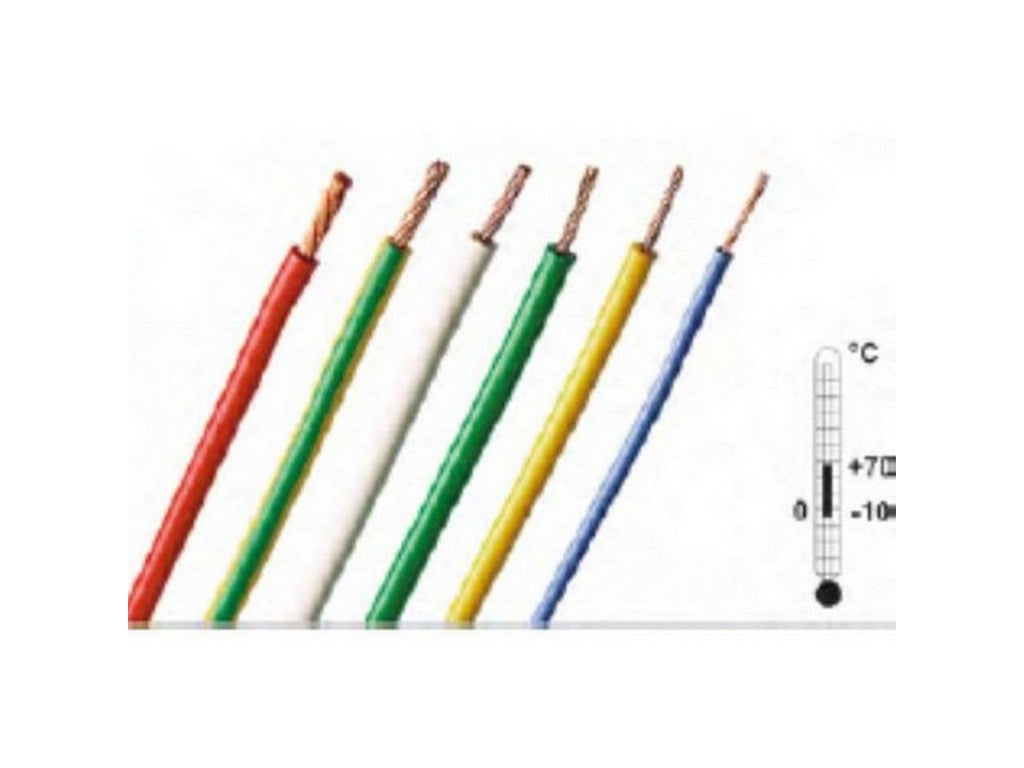

STAUBLI FLEXI-E/HK 0.50
The STAUBLI FLEXI-E/HK 0.50 is a highly flexible, PVC-insulated wire with a nominal cross-sectional area of 0.50 mm². It is constructed with 256 fine copper strands, providing a conductor that is easy to work with when wiring equipment or connecting components in a technical installation.
The wire is designed for general use in electrical constructions where a slim and flexible single core with simple, known data is required: 500 V AC, 10 A, and a temperature range from -10 °C to +70 °C. This makes it relevant in many professional contexts where space and movement in the wiring play a role.
With a conductor diameter of 1.0 mm and an outer cable diameter of 2.1 mm, it takes up very little space. At the same time, the insulation thickness is 0.55 mm, providing a compact construction without compromising the basic insulation that such a basic insulated wire should have.
If you need a flexible single core for electrical assembly or internal wiring, this is a solution that is easy to handle and simple to dimension into a project.
Typical applications
The wire is typically used where flexible internal wiring needs to be established in technical equipment or electrical constructions, and where the small diameter is an advantage.
Specifications
- Manufacturer: STAUBLI
- MPN: 60.7005-10024
- Type: FLEXI-E/HK 0.50
- Wire type: Highly flexible PVC-insulated stranded wire
- Nominal cross-section: 0.50 mm²
- Strand construction: 256 x 0.05 mm
- Rated voltage: 500 V AC
- Rated current: 10 A
- Temperature range: -10 °C to +70 °C
- Conductor diameter: 1.0 mm
- Cable diameter: 2.1 mm
- Insulation thickness: 0.55 mm
See datasheet from the manufacturer
