STAUBLI SILI-1V 0.15

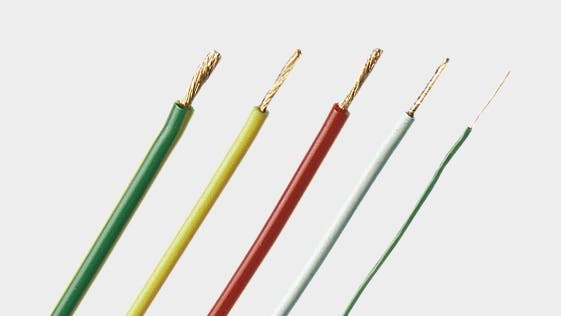

The STAUBLI SILI-1V 0.15 is a super flexible wire with reinforced silicone insulation. It is designed for applications where a standard wire would be too stiff, or where a wire is needed that can withstand repeated movement and still be easy to work with.
The wire has a nominal conductor cross-section of 0.15 mm² and is rated for AC 300 V and 6 A. This makes it relevant for electrical connections where a small, flexible conductor with documented electrical data is required. The stranded conductor is 39 x 0.07, and the total cable diameter is 1.5 mm, providing a very fine and flexible wire with a relatively thin outer diameter.

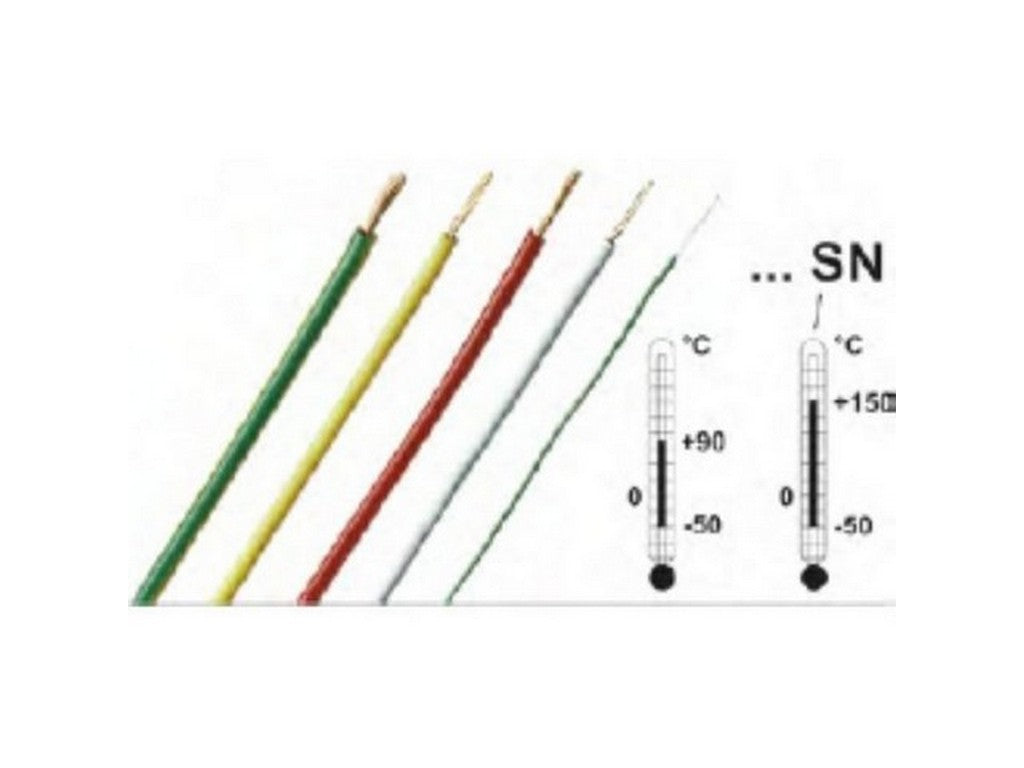

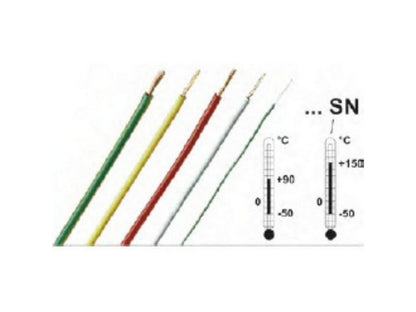

The silicone insulation also means that the wire is designed for a wide temperature range from -50 °C to +90 °C. This is a practical feature in technical installations, test setups, and other equipment where temperatures can vary and where the insulation must still maintain its flexibility.
This is a wire typically chosen when a robust, yet highly flexible single conductor is needed for professional use. The datasheet indicates CE, UKCA, and EAC approvals.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 61.7603-10022
- Conductor: super flexible stranded wire
- Nominal conductor cross-section: 0.15 mm²
- Insulation: reinforced silicone (SIL)
- Rated voltage: AC 300 V
- Rated current: 6 A
- Temperature range: -50 °C to +90 °C
- Conductor construction: 39 x 0.07
- Conductor diameter: 0.5 mm
- Cable diameter: 1.5 mm
- Insulation thickness: 0.5 mm
- Approvals: CE, UKCA, EAC
- Datasheet dated: February 2025
Content generated with AI - we reserve the right for errors.
Contact HIN for further product information.
