Product Overview

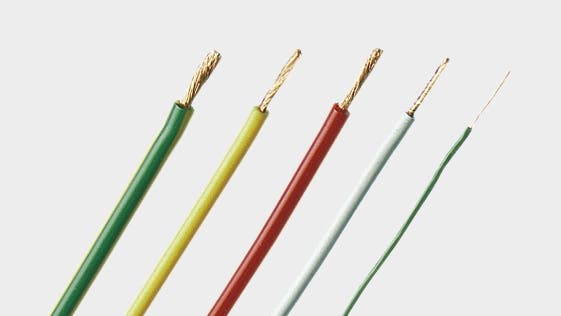

This highly flexible multi-stranded wire SILI-1V 0.50 from STAUBLI is designed as a highly flexible stranded wire with reinforced silicone insulation. The product is identified as item 61.7605-*. The description below is based solely on the manufacturer's information.Technical Description
SILI-1V 0.50 has a conductor construction consisting of 256 strands of 0.05 mm, providing a cross-section of 0.5 mm². The insulation material is specified as SIL (silicone). The stated rated data are AC 1000 V, 12 A and DC 1500 V, 12 A. The temperature range is specified as −50 °C to +90 °C, and the insulation wall thickness is 0.85 mm.Documentation
View manufacturer's datasheetSpecifications
- Product name: SILI-1V 0.50 (item 61.7605-*)
- Conductor construction: 256 x 0.05 mm
- Cross-section: 0.5 mm²
- Conductor diameter: 1.0 mm
- Cable diameter (outer diameter): 2.7 mm
- Insulation material: SIL (silicone)
- Insulation wall thickness: 0.85 mm
- Rated values: AC 1000 V, 12 A / DC 1500 V, 12 A
- Temperature range: −50 °C … +90 °C
- Cable weight: 10.0 kg/km
- Approvals: UR, CE, UKCA, EAC
Source
Manufacturer: STAUBLI. The information basis is the manufacturer's technical datasheets and product text.
