SILI-1V 0.50 (series 61.7605-*) from STAUBLI
Product description

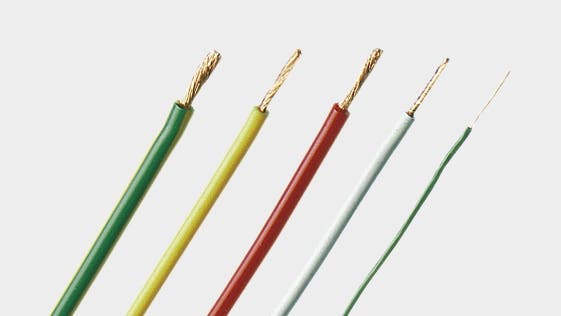

SILI-1V 0.50 (series 61.7605-*) is a highly flexible, silicone-insulated stranded conductor specified for use in handheld test leads under high thermal stress. The description and technical data are taken from the manufacturer's official datasheet and indicate both electrical and mechanical characteristics without further interpretation.- Conductor construction: 256 x 0.05 mm
- Cross-section: 0.50 mm²
- Outer diameter: 2.7 mm
- Insulation material: Silicone (SIL)
Typical applications
The product is specified for use in handheld test leads under high thermal stress, as indicated by the manufacturer. The description in the datasheet specifies this particular application and no other applications have been added.Electrical and environmental data
- Rated voltage and current values: AC 1000 V, DC 1500 V, 12 A

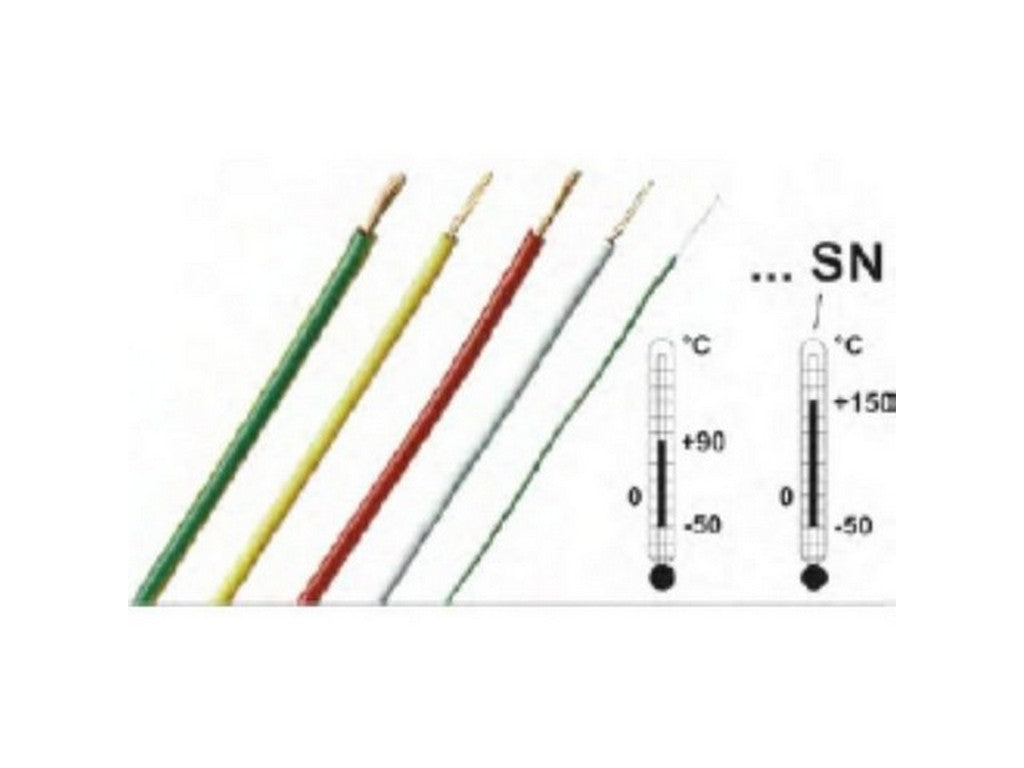

- Temperature range: −50 °C to +90 °C
Documentation
Further technical details and approvals can be found in the manufacturer's datasheet.
See datasheet from the manufacturer
Specifications
- Product name: SILI-1V 0.50 (series 61.7605-*)
- Manufacturer: STAUBLI
- Article number: 61.7605-*
- Conductor construction: 256 x 0.05 mm
- Cross-section: 0.50 mm²
- Conductor diameter: 1.0 mm
- Outer diameter: 2.7 mm
- Insulation wall thickness: 0.85 mm
- Insulation material: Silicone (SIL)
- Rated electrical data: AC 1000 V / DC 1500 V, 12 A
- Temperature range: −50 °C ... +90 °C
- Cable weight: 10.0 kg/km
- Approvals: UR, CE, UKCA, EAC
Sources
See datasheet from the manufacturer
