STAUBLI SILI-1V 0.75
The Stäubli SILI-1V 0.75 is a highly flexible cable with silicone insulation and reinforced insulation. It is designed for tasks where both mobility and electrical safety are required, and where a standard installation cable is not the right choice.
With a rated voltage of AC 1000 V and DC 1500 V, and a rated current of 15 A, it is suitable for professional electrical and test setups where the cable needs to handle high voltages in a compact design. The fine construction with 385 x 0.05 mm provides a very flexible conductor, which is precisely what you notice in practice when the cable needs to be routed in panels, devices, or test setups with limited space.

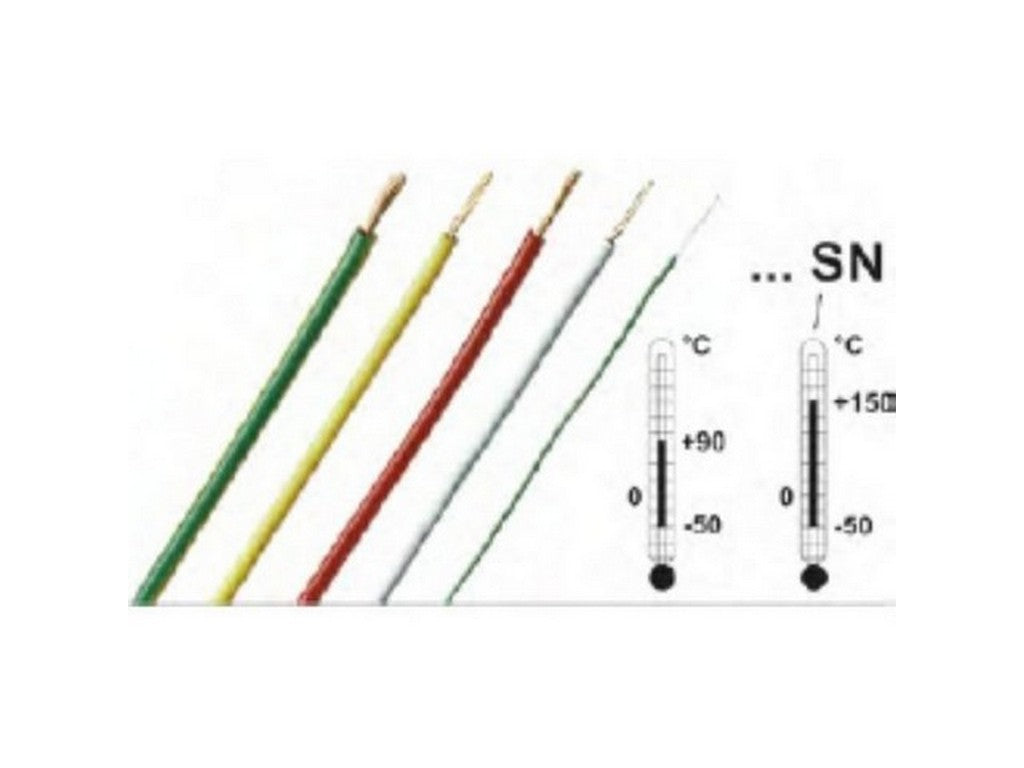

The silicone insulation also provides a wide temperature tolerance from -50 °C to +90 °C. This makes the cable suitable for environments where temperatures can vary significantly, and where the material must still maintain its flexibility. The outer diameter is 3.5 mm, and the conductor diameter is 1.25 mm, making it a relatively slender cable with a robust construction.
For documentation and approvals, it is marked with UR, CE, UKCA, and EAC. The datasheet is dated 02.2025.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 61.7606-10022
- Cable type: highly flexible stranded wire with reinforced insulation
- Cross-section: 0.75 mm²
- Rated voltage: AC 1000 V / DC 1500 V
- Rated current: 15 A
- Strand construction: 385 x 0.05 mm
- Conductor diameter: 1.25 mm
- Outer diameter: 3.5 mm
- Insulation wall thickness: 1.1 mm
- Temperature range: -50 °C to +90 °C
- Approvals: UR, CE, UKCA, EAC
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
