Product Overview

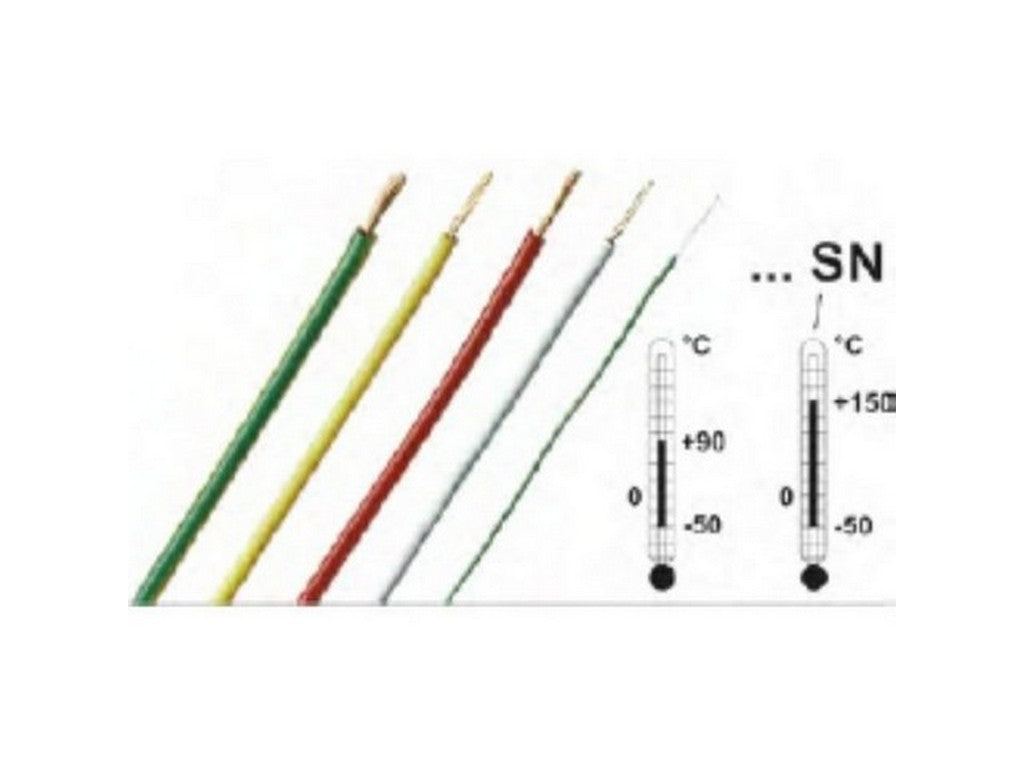

The SILI-1V 0.75 (Art. 61.7606-*) from STAUBLI is a highly flexible multi-stranded conductor with reinforced silicone insulation. The product is described in the manufacturer's datasheet, which provides fundamental electrical and mechanical data for the wire without further room for interpretation. SILI-1V 0.75 is named in the manufacturer's documentation, and the designations used have been retained.
Technical Description
- Multi-stranded construction with reinforced SIL (silicone) insulation.
- Cross-section: 0.75 mm².
- Weight: 17.0 kg/km (stated in the datasheet).
Documentation
Product data and approvals are detailed in the manufacturer's official datasheet. View datasheet from the manufacturer
Typical Applications
No specific application area is explicitly stated in the verified manufacturer's text. Therefore, no concrete application instructions are included in this description.
Specifications
- Product Name: SILI-1V 0.75 (Art. 61.7606-*)
- Cross-section: 0.75 mm²
- Noted Operating Data: AC 1000 V, 15 A / DC 1500 V, 15 A
- Temperature Range: -50 °C … +90 °C
- Conductor Construction: 385 × 0.05 mm
- Conductor Diameter: 1.25 mm
- Cable Diameter (total): 3.5 mm
- Insulation Wall Thickness: 1.1 mm
- Insulation Material: SIL (silicone)
- Weight: 17.0 kg/km
- Approvals: UR, CE, UKCA, EAC (stated in the datasheet)
- Datasheet Date: 02.2025
Source: Manufacturer's datasheet for SILI-1V 0.75.
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
