STAUBLI SILI-E 0.15

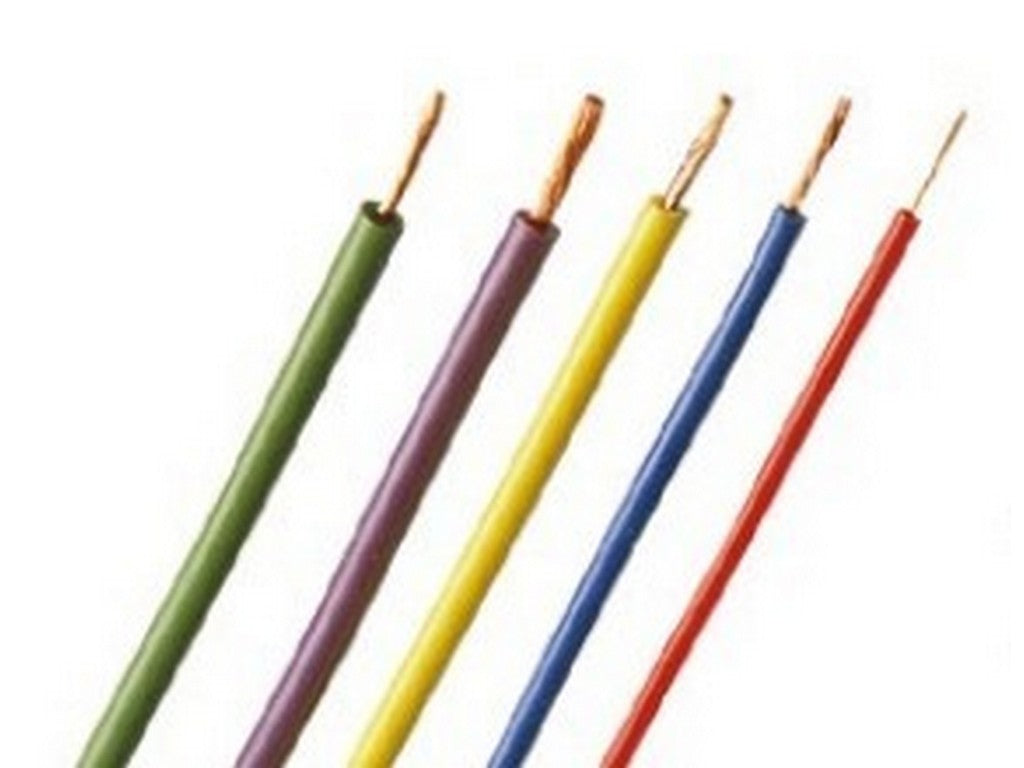

SILI-E 0.15 is a highly flexible, basic insulated multi-stranded wire with a cross-section of 0.15 mm². It is used where a small and pliable wire is needed, which can be routed into compact structures and still withstand repeated movement in a professional installation.
The wire has silicone insulation, which gives it its wide temperature range from -50 °C to +90 °C. At the same time, it is rated for AC 150 V and 6 A, making it suitable for lighter electrical connections where flexibility and proper electrical performance are still required.
The construction with 39 x 0.07 strands makes the conductor soft and easy to work with. This is an advantage when routing wires in test equipment, electronics, or other technical contexts where space is limited and there is a need for a wire that can be laid neatly and without large bends.
The outer diameter of 1.1 mm and insulation thickness of 0.3 mm indicate that it is a relatively slim wire. This type of dimensioning is typically interesting when wanting to keep routings compact and manageable.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 61.7550-10023
- Wire type: super flexible basic insulated multi-stranded wire
- Nominal cross-section: 0.15 mm²
- Insulation material: silicone (SIL)
- Rated voltage: AC 150 V
- Rated current: 6 A
- Temperature range: -50 °C to +90 °C
- Strand construction: 39 x 0.07
- Conductor diameter: 0.5 mm
- Cable diameter: 1.1 mm
- Insulation thickness: 0.3 mm
- Approvals: CE, UKCA, EAC
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
