STAUBLI 61.7550-10021

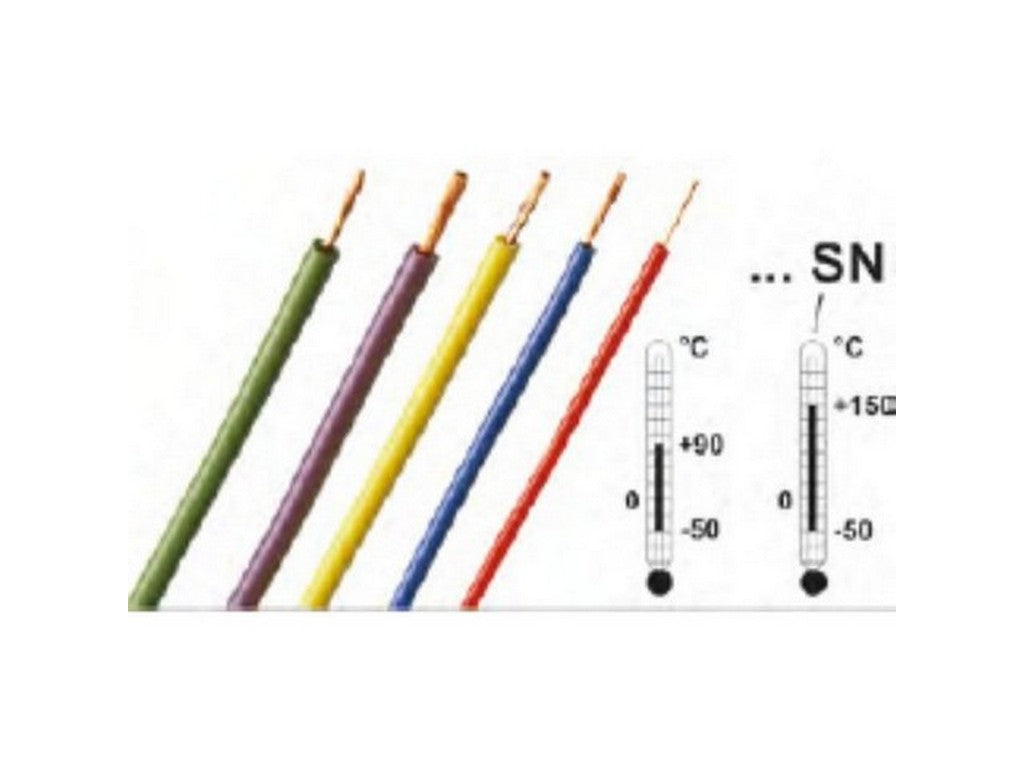

The STAUBLI 61.7550-10021 is a super flexible, silicone-insulated wire with a finely stranded construction. It is used when a reliable connection needs to be made in confined installations, where the wire also needs to be able to bend a lot without feeling stiff.
It is a basic insulated wire with a conductor cross-section of 0.15 mm². The construction itself is 39 x 0.07, and it has a conductor diameter of 0.50 mm. The outer diameter is 1.1 mm, providing a relatively compact wire that is still easy to work with in practice.
The silicone insulation also means that the wire is designed for a wide temperature range from -50 °C to +90 °C. This makes it relevant in environments where ordinary wire insulation is not sufficient. The electrical values are specified as AC 150 V and 6 A.
STAUBLI also states the approvals CE, UKCA, and EAC. If you work with the construction, testing, or internal wiring in electronic and technical installations, this is a type of wire typically chosen when flexibility and low space requirements are more important than a thick and rigid cable construction.
Typical applications
- Internal wiring in technical and electronic constructions
- Connections where the wire needs to be able to bend a lot
- Installations requiring a wide temperature range
Specifications
- Manufacturer: STAUBLI
- MPN: 61.7550-10021
- Conductor area: 0.15 mm²
- Construction: 39 x 0.07
- Conductor diameter: 0.50 mm
- Outer diameter: 1.1 mm
- Insulation material: SIL (silicone)
- Insulation thickness: 0.3 mm
- Nominal voltage: AC 150 V
- Nominal current: 6 A
- Temperature range: -50 °C to +90 °C
- Approvals: CE, UKCA, EAC
See datasheet from the manufacturer
