Product Description

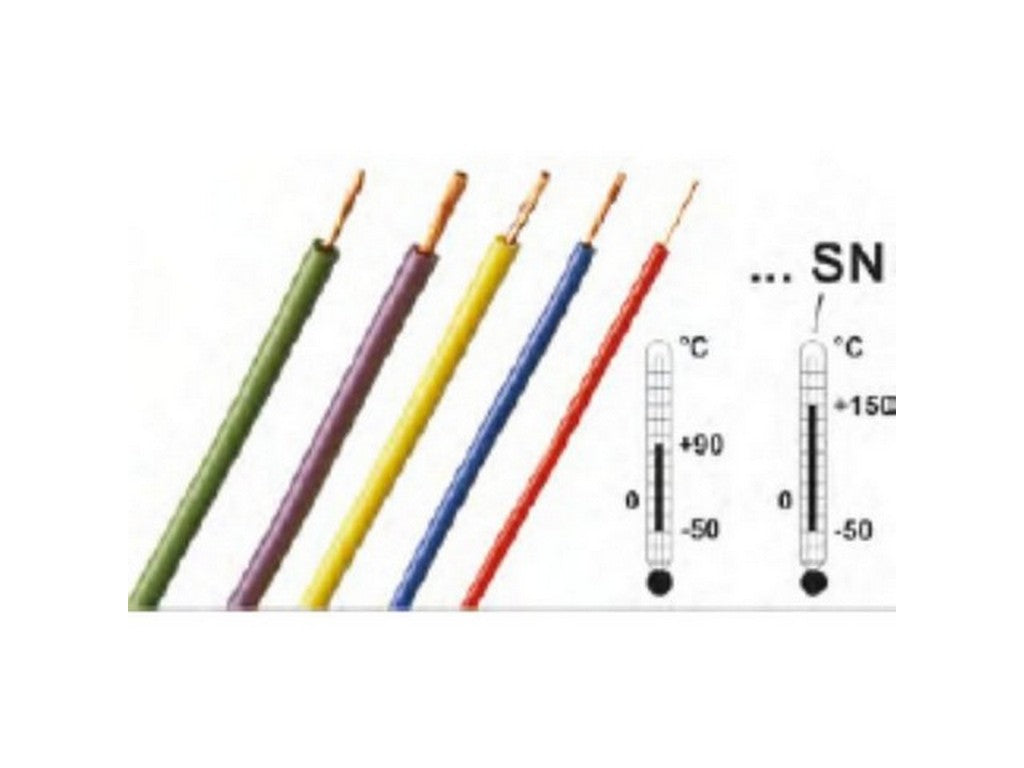

This super flexible insulated stranded conductor from STAUBLI, SILI-E 1.0, is a basic-insulated stranded wire with a conductor cross-section of 1.0 mm². The product is described in the manufacturer's data sheet and specifies design, electrical values, and environmental limits.Material and Construction
- Strand design: 259 x 0.07 mm (stranded)
- Insulation material: Silicone (SIL)
- Conductor diameter: 1.4 mm
- Cable diameter (outer): 3.0 mm
- Insulation thickness: 0.8 mm
Electrical and Thermal Data
- Rated voltage: AC 600 V
- Rated current: 19 A
- Temperature range: -50 °C to +90 °C
Documentation
Technical data and approvals are specified in the manufacturer's data sheet. For detailed product information, please refer to the manufacturer's official data sheet documentation:
Specifications
- Product name: SILI-E 1.0
- Item number: 61.7554-* (manufacturer part number 61.7554-10022)
- Conductor cross-section: 1.0 mm²
- Strand design: 259 x 0.07 mm
- Rated voltage: AC 600 V
- Rated current: 19 A
- Insulation material: SIL (silicone)
- Cable diameter: 3.0 mm
- Insulation thickness: 0.8 mm
- Conductor diameter: 1.4 mm
- Weight (conductor): 16.0 kg/km
- Temperature range: -50 °C … +90 °C
- Approvals: UR, CE, UKCA, EAC
- Datasheet date stamp: 02.2025
Source: STAUBLI datasheet for SILI-E 1.0 (the above information is taken directly from the manufacturer's technical documentation).
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
