Cable Description

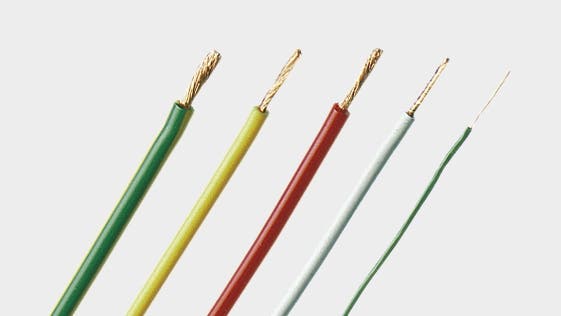

This cable, SILI-1V 1.0 SN from STAUBLI, is a super-flexible, silicone-insulated wire with tin-plated conductors. The product is specified with a conductor cross-section of 1.0 mm² and a multi-stranded conductor construction, and is intended for applications where high flexibility and heat-resistant insulation are required.Material and Electrical Data
- Insulation material: silicone (SIL)
- Conductors: tin-plated (tinned) multi-stranded conductors
- Rated current: 19 A
- Rated voltage: AC 1000 V / DC 1500 V
Documentation
The official technical documentation describes the measured values and approvals for SILI-1V 1.0 SN. See datasheet from the manufacturer
Specifications
- Product name: SILI-1V 1.0 SN
- Article number: 61.7644-*
- Conductor cross-section: 1.0 mm²
- Stranding construction: 259 × 0.07 mm
- Conductor diameter: 1.4 mm
- Outer cable diameter: 3.9 mm
- Insulation wall thickness: 1.2 mm
- Insulation material: SIL (silicone)
- Temperature range: −50 °C to +150 °C
- Rated voltage: AC 1000 V, DC 1500 V
- Rated current: 19 A
- Cable weight: 21.0 kg/km
- Approvals: UR, CE, UKCA, EAC
- Conductor type: tinned (tin-plated) multi-stranded
Sources
See datasheet from the manufacturer
