STAUBLI 33.5615

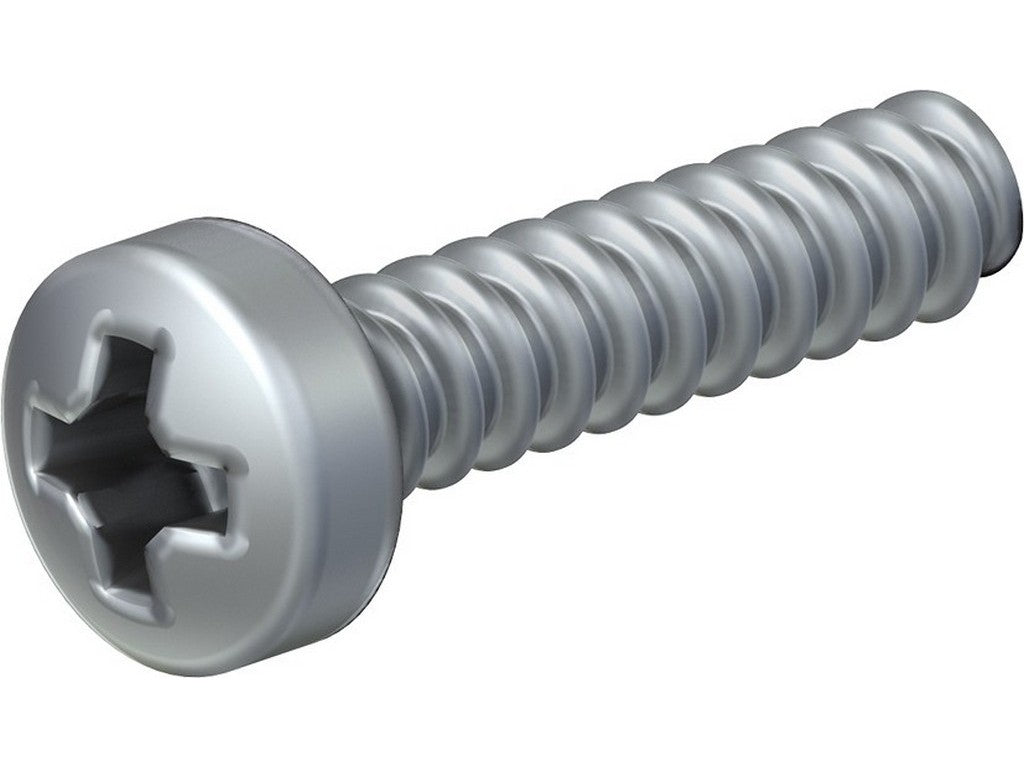

The STAUBLI 33.5615 is a pan head screw used by Stäubli in its CombiTac uniq assembly. It serves as the screw that secures the end pieces to the mounting rails, ensuring the assembly is correctly put together and stable.
It is not used as a general loose mounting screw in itself, but as a specific spare part for the CombiTac setup. According to Stäubli, the end pieces are fastened with eight LI-BL-SHR screws per end, and the tightening torque depends on whether the mounting rails are plastic or aluminum. This makes the screw relevant when working with assembly, service, or replacement in a CombiTac uniq module.
For someone with the assembly on the table, it is precisely this kind of detail that determines whether the end piece is mounted according to the manufacturer's instructions. Therefore, it is important to use the correct screw and follow the specified torque.
Typical applications
- Securing end pieces to CombiTac uniq mounting rails
- Assembly and service in Stäubli CombiTac assemblies
- Spare part when replacing the original pan head screw
Specifications
- Manufacturer: STAUBLI
- MPN: 33.5615
- Designation: LI-BL-SHR
- Screw type: Pan head screw
- Used for: Securing end pieces to mounting rails in CombiTac uniq
- Quantity per end piece: 8 pcs.
- Tightening torque for plastic mounting rails: 0.5 N·m
- Tightening torque for aluminum mounting rails: 0.8 N·m
