Positioning Aid
EC LOC05 (Locator 006773) is a positioning aid from GLW for precise handling of spade terminals. The product is designed for spade terminals measuring 6.3 x 0.8 mm with a pin length of 8 mm and has item number (Art. Nr.) 006773. The internal designation at the manufacturer is EC LOC05.
What the product does
EC LOC05 functions as a mechanical locator that ensures millimeter-accurate insertion and centering of terminals in the correct crimping die. It positions and pushes the spade terminal into the correct position in the associated crimping die (EC R0560) so that the terminal is correctly placed in the crimping process.
Installation and use
- EC LOC05 is intended for use with the crimping die EC R0560.
- GLW states that the locator is used in conjunction with the EC 65 and PC 65 machines, where it inserts and centers terminals in the crimping die.
- The application involves positioning the spade terminal in the locator, which then pushes the component into the correct position in the crimping die before crimping.
Technical reference

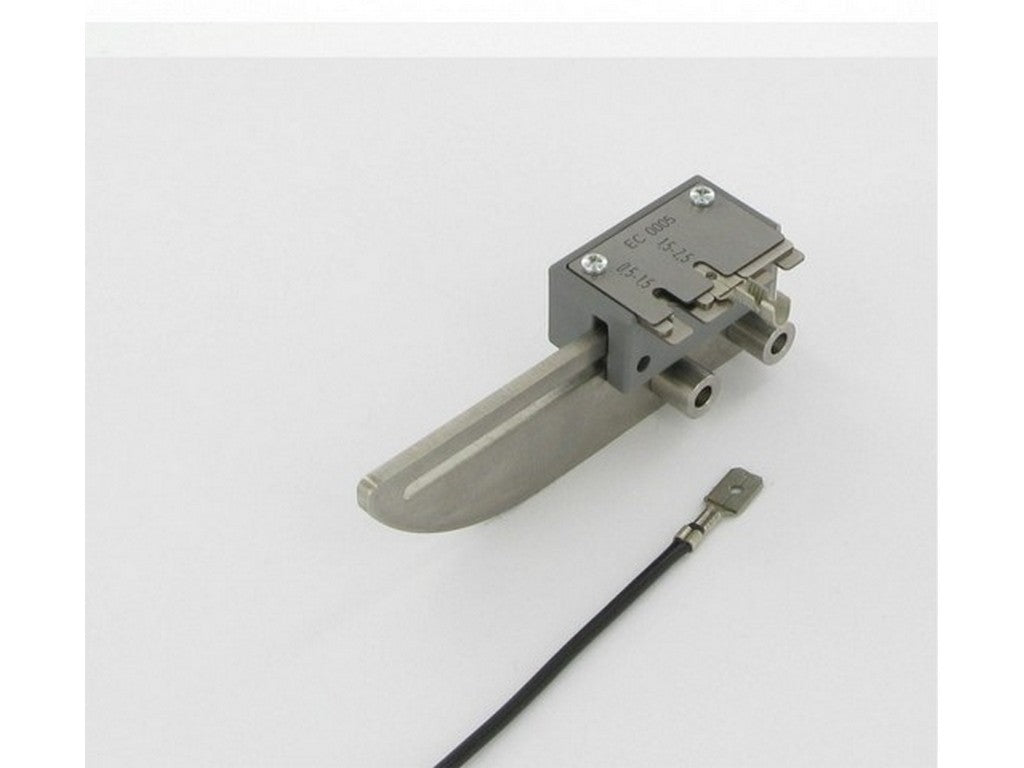

The manufacturer's description emphasizes millimeter-accurate positioning and specific compatibility with the mentioned crimping die and machine types. Product images are shown on the manufacturer's product page.
Specifications
- Product name: EC LOC05 (Locator 006773).
- Art. Nr.: 006773.
- For terminal type: Spade terminal 6.3 x 0.8 mm.
- Pin length: 8 mm.
- For intended crimping die: EC R0560.
- Specified machines: EC 65 and PC 65.
