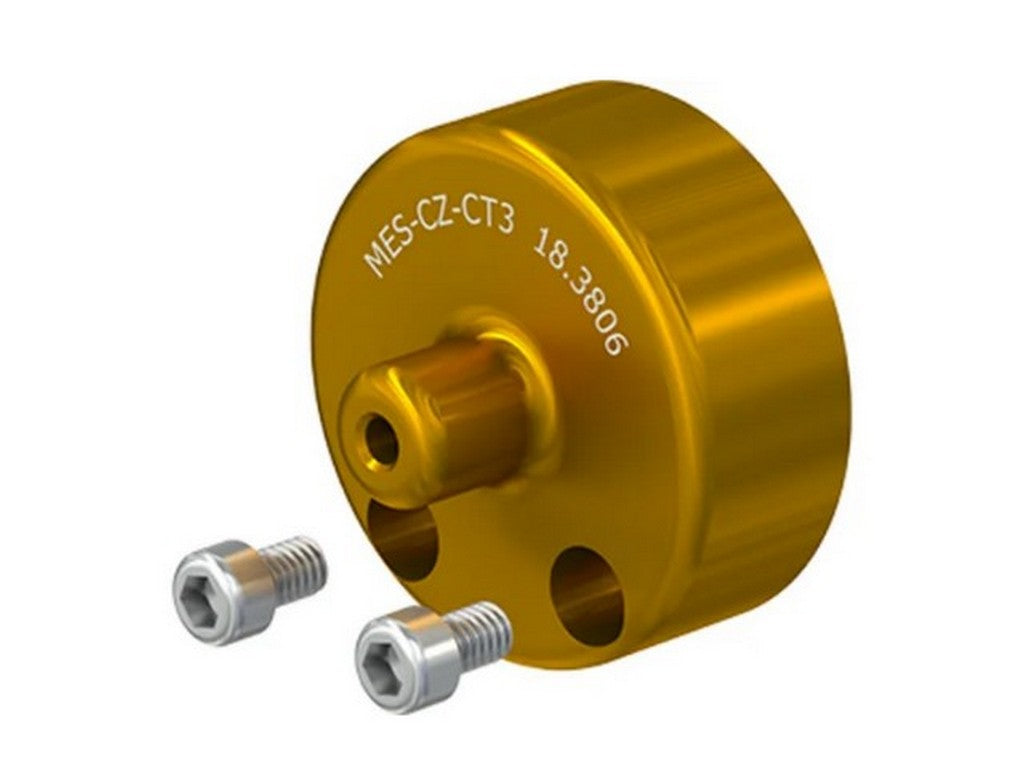

STAUBLI 18.3806 MES-CZ-CT3 locator
The STAUBLI 18.3806 is a locator, also called a crimping die, for crimping conductors with cross-sections of 2.5–4 mm². It is used with Stäubli CT-M-CZ crimping pliers and functions as the insert that fits this specific conductor range, allowing for correct crimping.
In practice, it is a spare part for work involving crimping conductors in a professional environment. When working with different conductor cross-sections, it is important to use the correct insert for the task. Here, the 18.3806 is the variant specified for 2.5–4 mm².
Stäubli also states it is compatible with CT-M-CZ crimping pliers, order no. 33.3800, and it is referred to in the manufacturer's assembly and operating instructions as a crimping die. This makes it easy to position in daily use: it is the part selected when crimping in this specific cross-section.
See datasheet from the manufacturer
Typical applications
- Crimping conductors in the range of 2.5–4 mm²
- Use with CT-M-CZ crimping pliers
- Spare part for Stäubli crimping tools
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3806
- Designation: MES-CZ-CT3 locator / crimping die
- For conductor cross-section: 2.5–4 mm²
- Compatible with: CT-M-CZ crimping pliers, order no. 33.3800
- Referred to in Stäubli documentation as: Crimpeinsatz / crimping die
