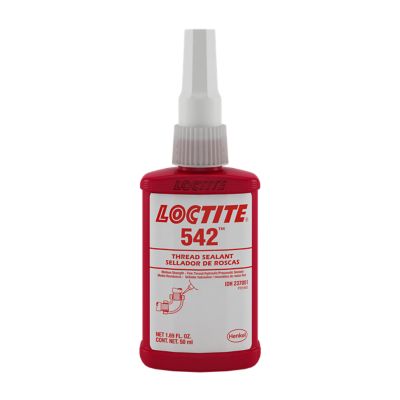

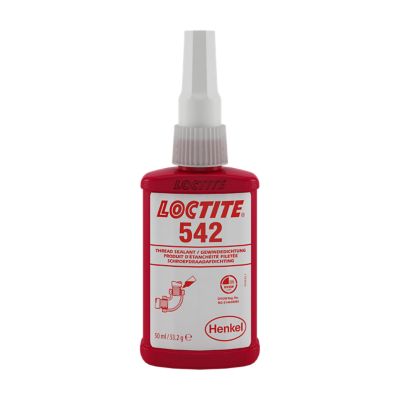

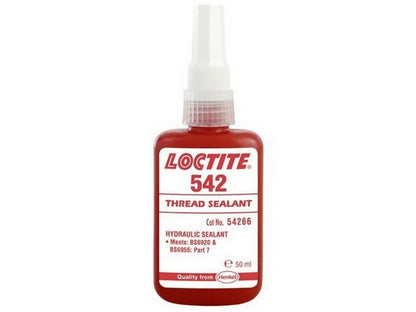

Thread Sealant: LOCTITE 542
LOCTITE 542 is a one-component thread sealant from LOCTITE designed for locking and sealing fine metal threads. The product is anaerobically curing and formulated as a dimethacrylate ester (acrylic technology). In its uncured state, it appears as a brown liquid with thixotropic behavior, which reduces migration after application.
What the product does
LOCTITE 542 prevents leaks and loosening between closely fitting metal surfaces by curing in the absence of air. The product provides immediate low-pressure sealing after proper assembly and develops a medium retention strength upon curing. It is resistant to fuel, oil, coolants, and hydraulic fluids, as documented in the manufacturer's technical data sheet.
Application and usage
The application routine, as specified by the manufacturer, includes the following steps:
- Clean both internal and external surfaces before application (LOCTITE cleaners are recommended).
- For inactive metals or slow curing, an activator can be used and dried before bonding.
- Apply a 360° bead to the leading threads of the male fitting, avoiding the first thread. Ensure the material is pressed into the thread grooves; for large threads or gaps, apply similarly to the female thread.
- Assemble and retighten according to the manufacturer's instructions for the entire equipment. The product provides immediate sealing against moderate pressures; for maximum pressure and solvent resistance, full curing for at least 24 hours is recommended.
Typical applications
LOCTITE 542 is designed for locking and sealing metal pipes and fittings with fine threads, including applications in hydraulic and pneumatic systems where immediate low-pressure sealing and resistance to oil and hydraulic fluids are required.
Documentation
Specifications
- Product name: LOCTITE 542
- Manufacturer: LOCTITE
- Manufacturer's item number: 234415
- Technology: Acrylic (dimethacrylate ester)
- Components: One-component
- Curing: Anaerobic
- Strength: Medium
- Appearance (uncured): Brown liquid
- Thixotropic: Yes (reduces subsequent migration)
- Typical viscosity: approximately 600 mPa·s (cP)
- Operating temperature: -55 °C to 150 °C
- Resistance: Fuel, oil, coolants, and hydraulic fluids (specified in TDS)
- Example of mechanical performance: Breakaway torque on M10 steel nuts/screws: 15 N·m (after 24 h @22 °C)
