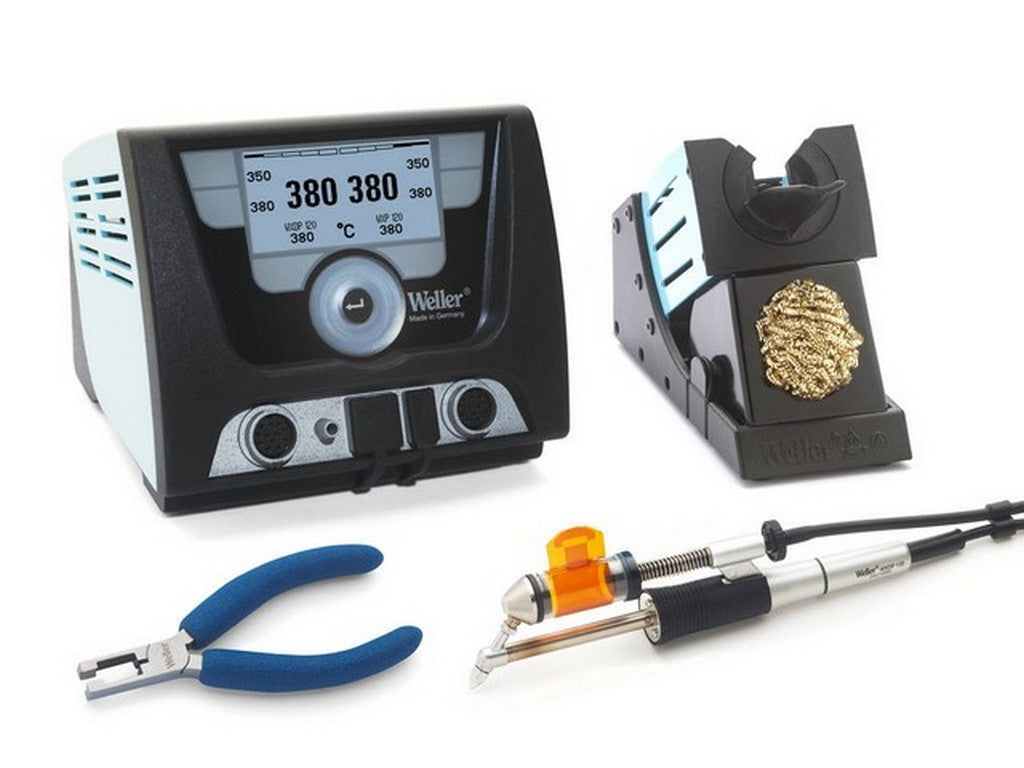

WXD2010 Set — 2-channel Soldering and Desoldering Station from WELLER
The WXD2010 Set (Item No. T0053428399N) is a 2-channel soldering and desoldering station (WXD 2) from WELLER. The station is specified for 230 V operation and delivers a nominal 200 W (255 W). The set includes the WXDP120 desoldering iron and utilizes intelligent WX technology for the connected soldering and desoldering tools.
Main Features
- 2-channel station with separate tool control.
- Intelligent WX technology for tools.
- Requires external compressed air supply (operating pressure 4–6 bar; 54–87 psi).
- Patented ESD-safe glass display for parameter setting.
- USB interface for firmware updates, parameterization, and monitoring (supports standard USB flash drives).
View datasheet from manufacturer
Typical Applications
The WXD2010 Set is used for soldering and desoldering tasks with separate channels for soldering and desoldering tools. The desoldering function is explicitly indicated by the inclusion of the WXDP120 desoldering iron.
Documentation and Updates
The station's USB interface allows firmware updates, parameterization, and monitoring via standard USB flash drives, as documented by the manufacturer.
Specifications
- Product Name: WXD2010 Set (Item No. T0053428399N)
- Manufacturer: WELLER
- Number of Channels: 2

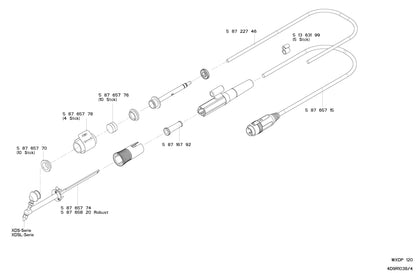

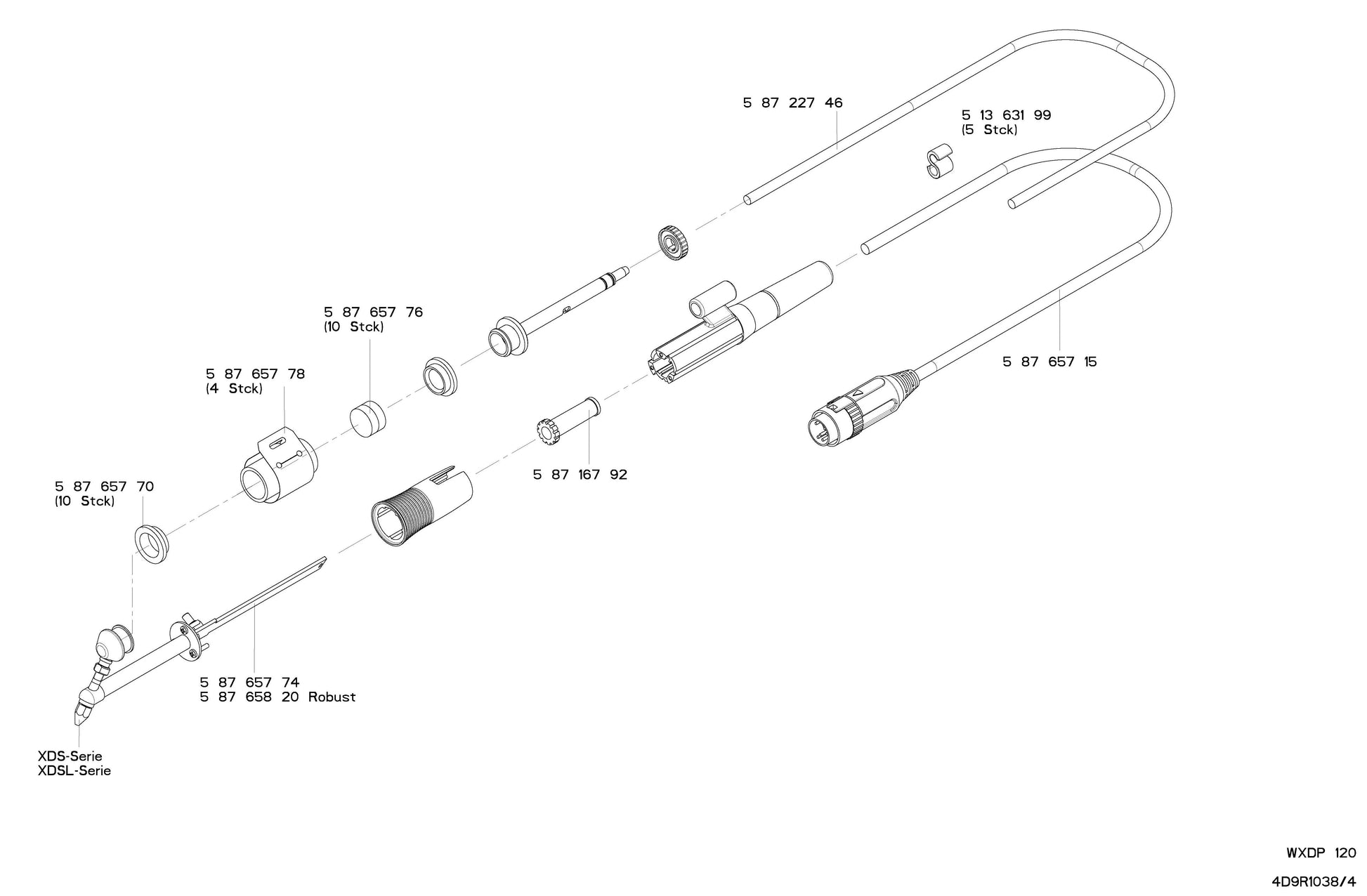

- Included Tool: WXDP120 desoldering iron
- Power: 200 W (255 W)
- Operating Voltage: 230 V
- Operating Pressure: 4–6 bar (54–87 psi) — requires external compressed air supply
- Air Consumption: 35 l/min
- Temperature Range (depends on tool): adjustable from 50 °C to 550 °C
- Temperature Stability: ±2 °C
- Temperature Accuracy: ±9 °C
- Dimensions (L x W x H): 174.0 x 154.0 x 135.0 mm
- Weight (catalog): 3.20 kg
- ESD-Safe: Yes (patented glass display)
- Fuse: T2 A
- Equipotential Bonding Socket: via 3.5 mm pawl socket on the back
- Product Family: Rework, Hot Air, Desoldering Stations
