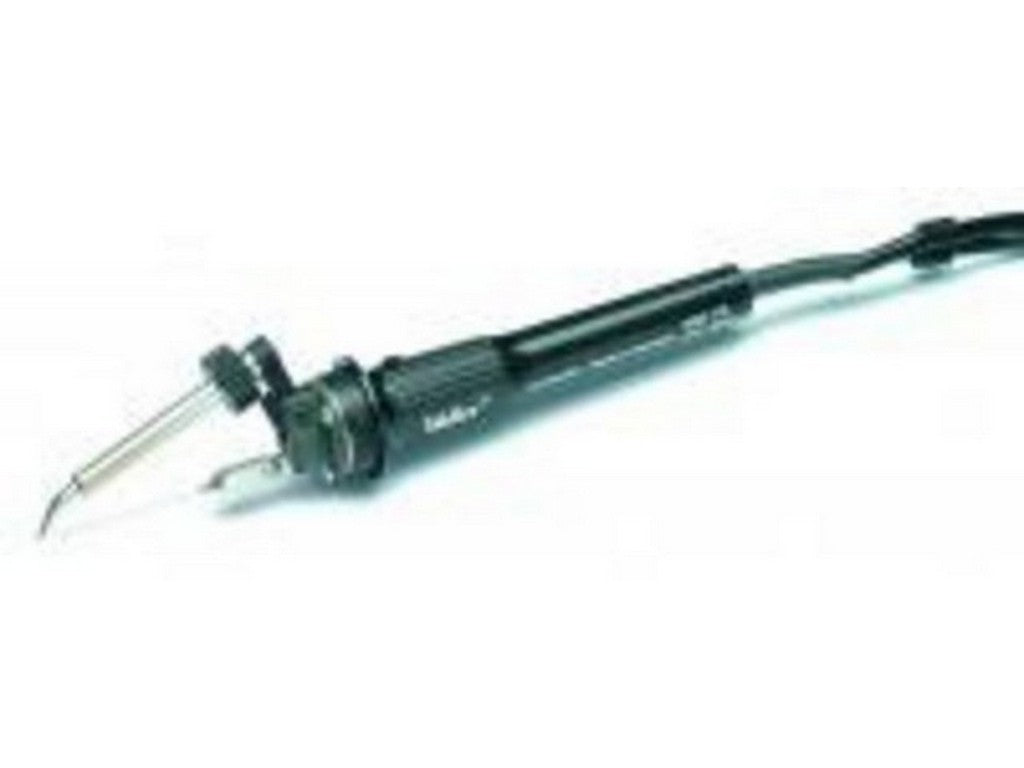

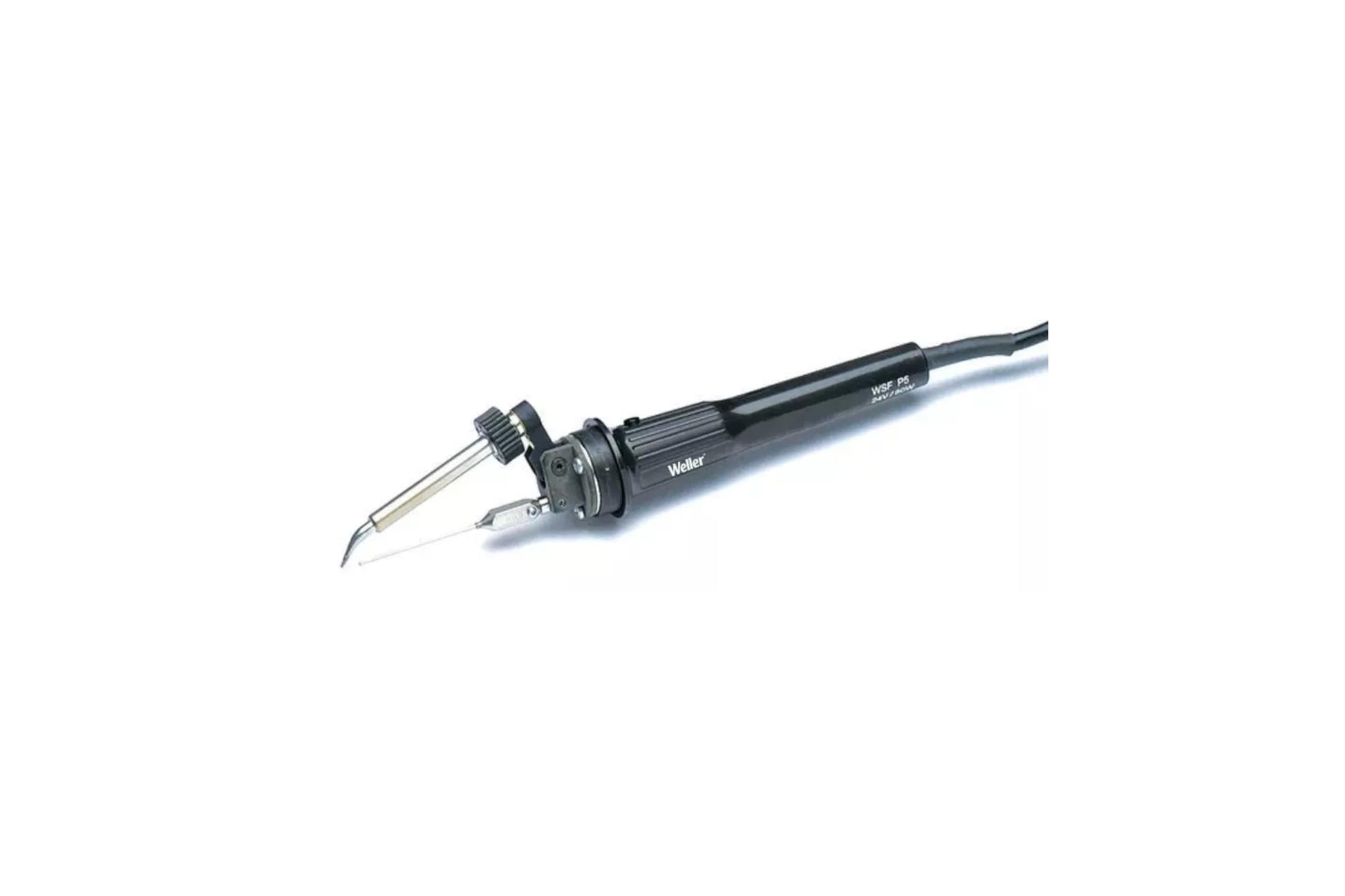

Weller WSFP8 Soldering Iron — Low-Voltage Soldering Iron
The Weller WSFP8 soldering iron (Item No. T0052812299N) is a low-voltage soldering tool from WELLER designed for manual soldering with wire feeding. The description and technical data are based on the manufacturer's information and available documentation material.Technical Characteristics
- Model: Weller WSFP8 (Item No. T0052812299N)
- Power: 80 W
- Voltage: 24 V
- Temperature Range: 50–450 °C
- Heat-up Time: approx. 10 seconds (from 50 °C to 350 °C, specified by the manufacturer)
- Tip Type: LT (comes with LT BX tip: chisel, bent 30°, Ø 2.4 mm)
- Recommended Solder Wire Diameter: 0.8–1.5 mm
- Heating Technology: Weller Silver Line heating element
- Product Family: Low Voltage Soldering Irons
- Manufacturer Part Number: T0052812299N
- UPC: 4003019409617
Documentation
For detailed instructions and safety information, please refer to the manufacturer's manual and product documentation:
See datasheet from the manufacturer
Typical Applications
- Used for soldering with solder wires in the diameter range of 0.8–1.5 mm (specified in the manufacturer's product description).
Specifications
- Model: Weller WSFP8 (T0052812299N)
- Power: 80 W
- Voltage: 24 V
- Temperature Range: 50–450 °C
- Heat-up time 50→350 °C: approx. 10 s
- Tip: LT BX, chisel bent 30°, Ø 2.4 mm
- Recommended solder wire: 0.8–1.5 mm
- Heating technology: Weller Silver Line
- Manufacturer Part Number: T0052812299N
- UPC: 4003019409617
