This soldering and rework system from THERMALTRONICS

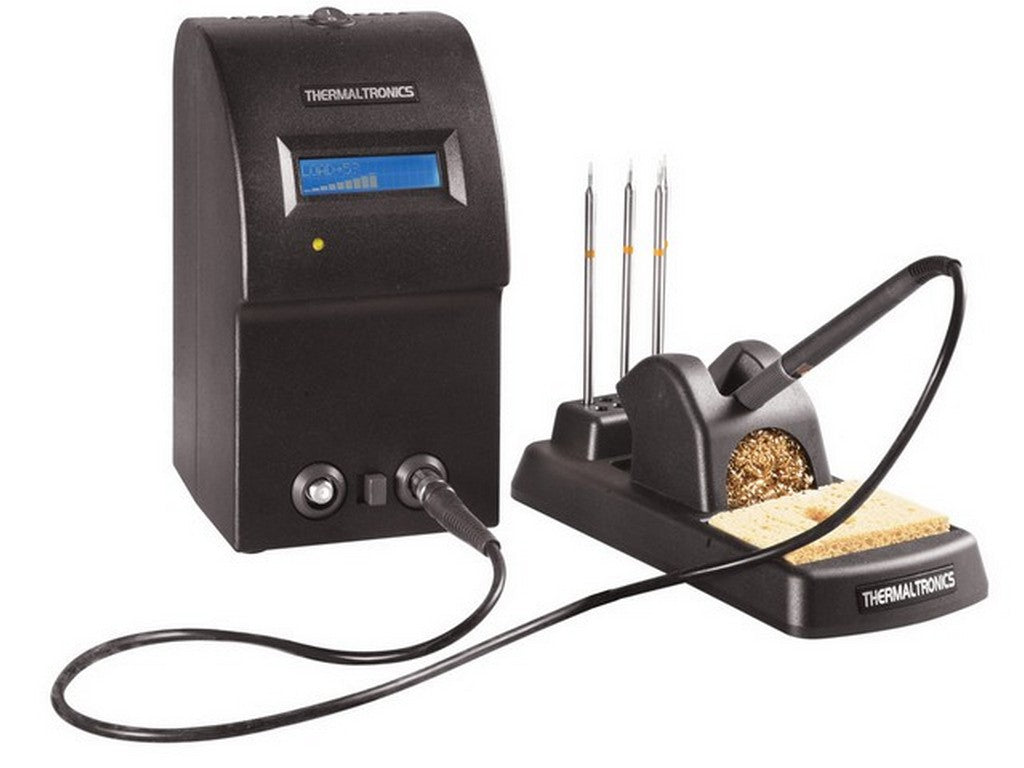

The TMT-9000S-2 is an RF induction-based soldering and rework system configured for 220–240 VAC operation. The system utilizes Curie Heat Technology with a 13.56 MHz RF power source and a maximum output power of 40 Watts. The station comes with dual switchable soldering ports and a built-in LCD display.
Function and scope of delivery
- Curie Heat Technology with 13.56 MHz RF power supply.
- Configuration for 220–240 VAC (TMT-9000PS-2 variant).
- Dual switchable soldering ports and built-in LCD display.
- Standard delivery list: TMT-9000PS power supply, SHP-1 soldering handpiece, SHH-1 stand, M7CH176 tip cartridge, SPG-1 sponge, BC-1 brass curls.
Typical applications
The TMT-9000S-2 is designated as a soldering and rework system and is used for soldering and rework operations where RF induction heating and precise temperature control are required. The unit is specified for 220–240 VAC operation and is thus intended for use in installations with this input level.
Documentation
For complete technical details and component list, see the manufacturer's datasheet:
Specifications
- Product: TMT-9000S-2
- Manufacturer: THERMALTRONICS
- Input Line Voltage (TMT-9000PS-2): 220–240 VAC
- Input Line Frequency: 50/60 Hz
- Output Power (Maximum): 40 Watts
- Output Frequency: 13.56 MHz
- Idle temperature stability: ±1.1 °C
- Tip to Ground Potential: <2 mV (true RMS stated as 2 mV in manufacturer's text)
- Tip to Ground Resistance: <2 Ohm
- Max Enclosure Temperature: 50 °C
- LCD display: 60 mm x 16 mm
- Size (W x H x D): 212 mm x 118 mm x 132 mm
- Weight: 3.47 kg
- Fuse (TMT-9000PS-2): 250V 0.5A “Slo-Blo”
- Certificates/markings stated in manufacturer's text: LEAD FREE; ESD FREE
- Standard package: TMT-9000PS power supply; SHP-1 soldering handpiece; SHH-1 stand; M7CH176 tip cartridge; SPG-1 sponge; BC-1 brass curls
Source: Manufacturer's datasheet (link above).
