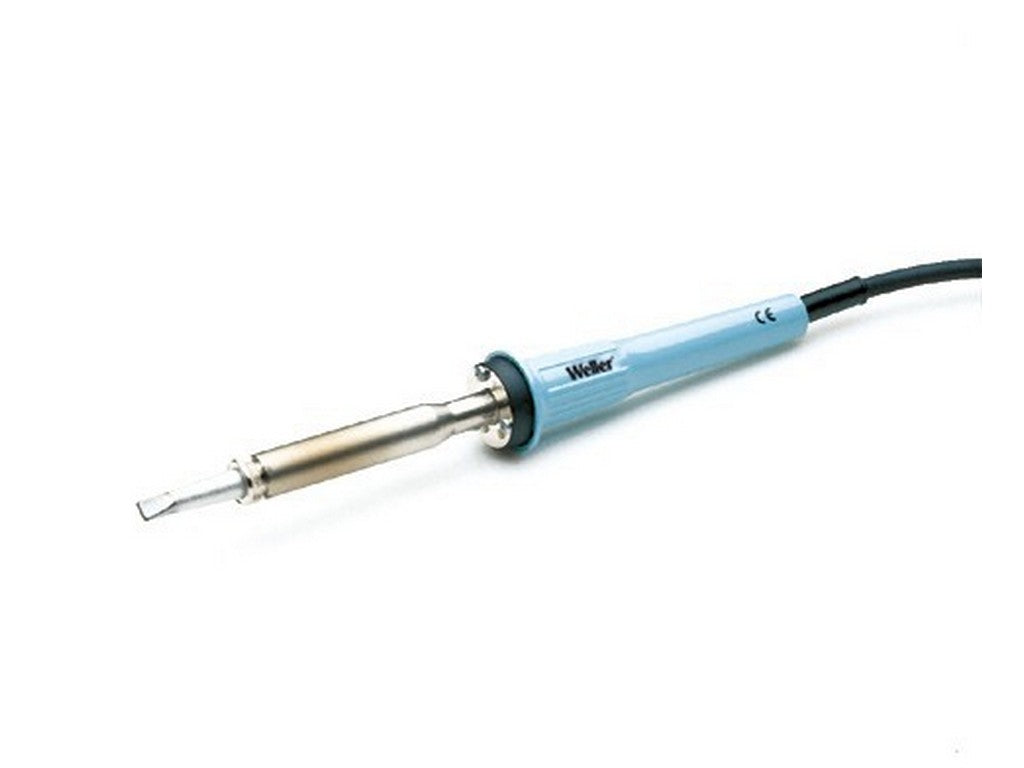

Mains-powered soldering iron from WELLER
The Weller W101 is a mains-powered soldering iron designed for 230 V supply and 100 W power. Temperature control is managed by Weller's Magnastat system, where a ferro-magnetic temperature sensor changes properties at predetermined temperatures, thereby turning the heating coil/power supply on or off to deliver extra power during soldering or reduce power during inactivity.
Function and operation
- Magnastat temperature control: temperature is selected by mounting a temperature-sensitive soldering tip.
- Supplied complete with CT6 E7 soldering tip and a safety rest.
- Stated tip temperature with the included tip: 370°C (698°F).
- Temperature-sensitive tips are available in ratings of 260°C, 310°C, 370°C, 425°C, and 480°C.
- The product is listed as ESD Safe in the official technical documents.
Documentation
Product information and technical data are described in the manufacturer's documents. See datasheet from the manufacturer
Specifications
- Product name: Weller W101 (Item No: T0056104699N)
- Manufacturer: WELLER
- Power: 100 W
- Voltage: 230 V
- Included tip: CT6 E7
- Included accessories: safety rest
- Temperature control: Magnastat system
- Stated tip temperature with included tip: 370°C (698°F)
- Available temperature-sensitive tips: 260°C, 310°C, 370°C, 425°C, 480°C
- ESD Safe: Yes
- Product family: Mains-Powered Soldering Irons
- UPC: 037103312303
The content is generated with the help of AI – we reserve the right for errors.
Contact HIN for further product information.
