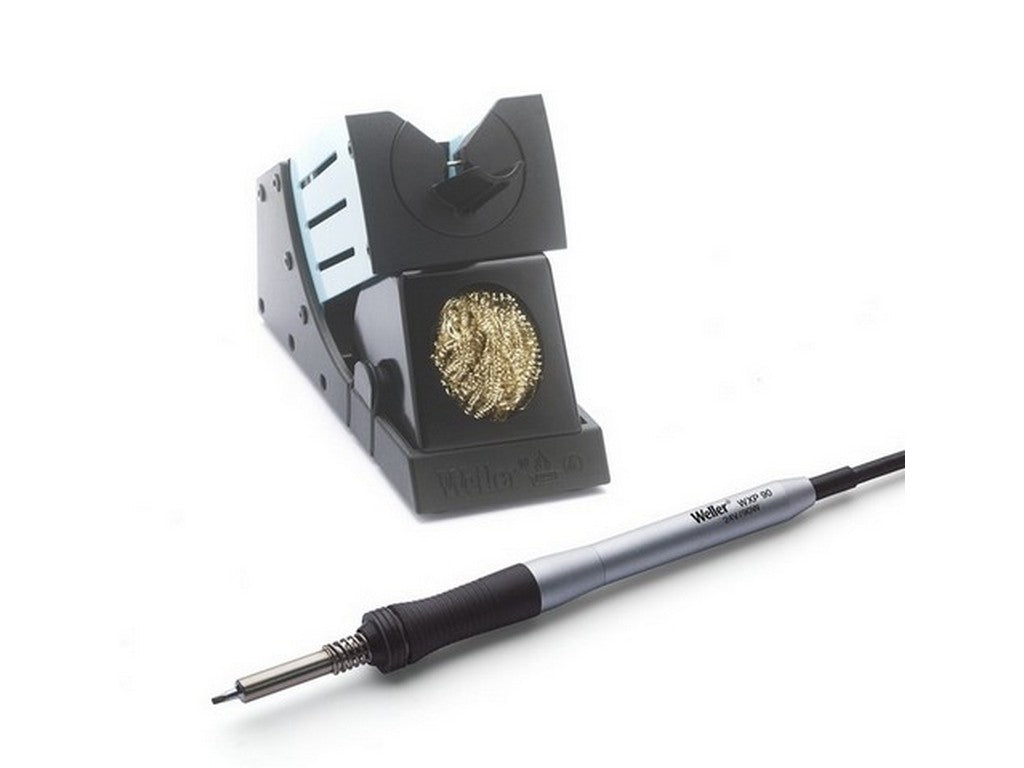

WXP90 Set (Item No. T0052922599N) — Hybrid Soldering Iron Set
Product Overview
The WXP90 Set (Item No. T0052922599N) is a hybrid soldering iron set from WELLER consisting of a 90 W, 24 V soldering iron with Power Response Heating Technology. The tool accepts XNT series soldering tips and features a replaceable heating element including an XNT tip. The product documentation indicates an estimated heating time of approximately 7 seconds and a temperature range of 100–450 °C.Features and Control
- Power Response Heating Technology with improved sensor position.
- Parameter memory, including standby temperatures and automatic shut-off time.
- Motion sensor which, according to the manufacturer, reduces total cost of ownership.
- Visual process control via LED signal.
- ESD-safe construction and replaceable XNT tips.
Typical Applications
The accompanying documentation specifies that the WXP90 is suitable for small and medium-sized components with high energy requirements and for demanding soldering tasks in combination with WX stations (listed as compatible with WX1, WX2, WXA2, WXD2, and WXR3). The description is taken from the manufacturer's product data.Documentation
Further technical information, product images, and manuals are available from the manufacturer's data sheet:
See data sheet from the manufacturerSpecifications
- Product Name: WXP90 Set (Item No: T0052922599N)
- Manufacturer: WELLER
- Power: 90 W
- Voltage: 24 V
- Heating Time (50–350 °C): approx. 7 seconds
- Temperature Range: 100–450 °C
- Tip type/range: XNT
- Compatible Power Units: WX1, WX2, WXA2, WXD2, WXR3 (and WXsmart indicated in manufacturer data)
- ESD-safe: Yes
- Safety Rest: WSR 200
- Weight (catalog): 0.95 kg
- Integrated direct fume extraction attachment with hose Ø 4.5 mm
- Barrel reference: T0058768724
- Family: WX Soldering Irons
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
