Product Overview

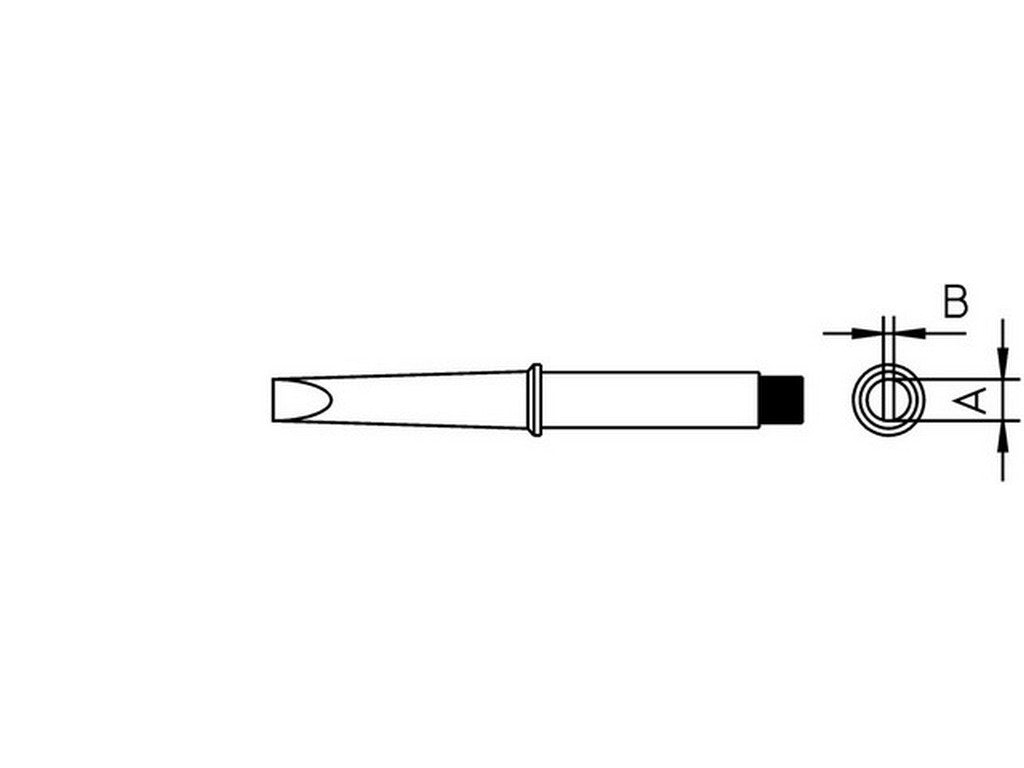

This soldering tip, Weller CT5 B7 (Item No. 4CT5B7-1), is a chisel-shaped tip from the Weller CT product family. The tip is rated for a working temperature of 370 °C and is designated with tip type "HM". The package content is 1 piece per package and the UPC code is 4003019431977.Documentation
View datasheet from manufacturerTypical Applications
This Weller CT5 B7 soldering tip is used for soldering operations where a chisel-shaped tip and a working temperature of 370 °C are specified. The datasheet indicates that tip temperatures can be selected by changing the temperature-sensitive tip in conjunction with the Weller Magnastat system, which allows for different types of soldering operations at pre-selected temperatures.Technical Notes
The function of the tip relates to the Weller Magnastat system's method of temperature control using a ferromagnetic sensor in the tip, which changes characteristics at specific temperatures to control power to the heating element. This is described in the manufacturer's datasheet and explains how different temperature-rated tips (including 370 °C) achieve the selected working temperature.Specifications
- Product name: Weller CT5 B7 (Item No. 4CT5B7-1)
- Product family: CT Soldering Tips
- Tip shape: Chisel
- Temperature rating: 370 °C
- Tip type: HM
- Quantity per package: 1
- UPC: 4003019431977
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
