Product Overview
This Weller PT BB7 soldering tip (Item No. 4PTBB7-1) is a Magnastat-compatible soldering tip described as "Soldering Tip Round sloped 370°C". The PT BB7 is listed in Weller's PT-series of soldering tips and is supplied individually in the package.Function and design

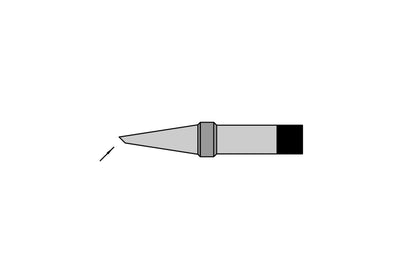

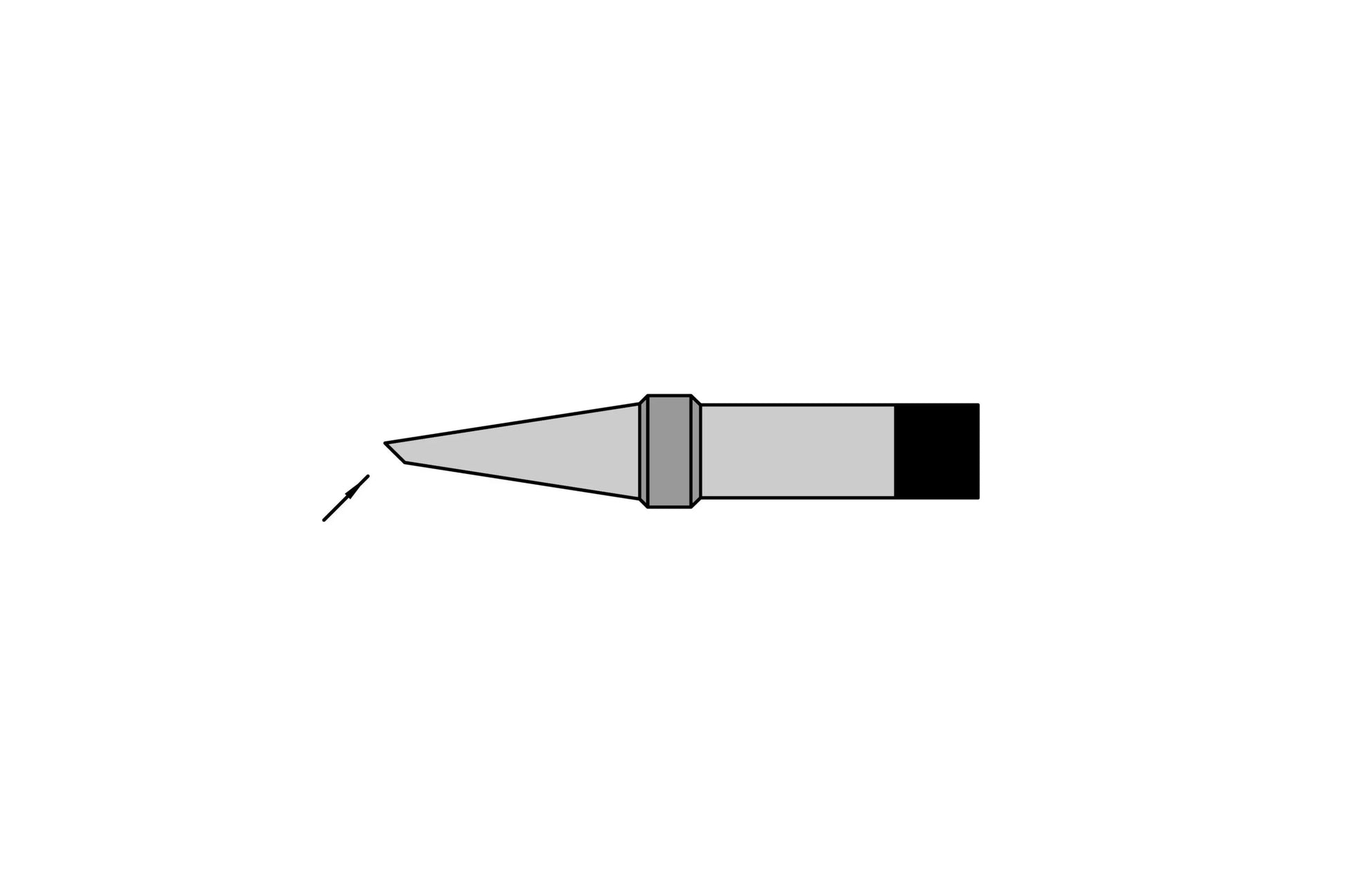

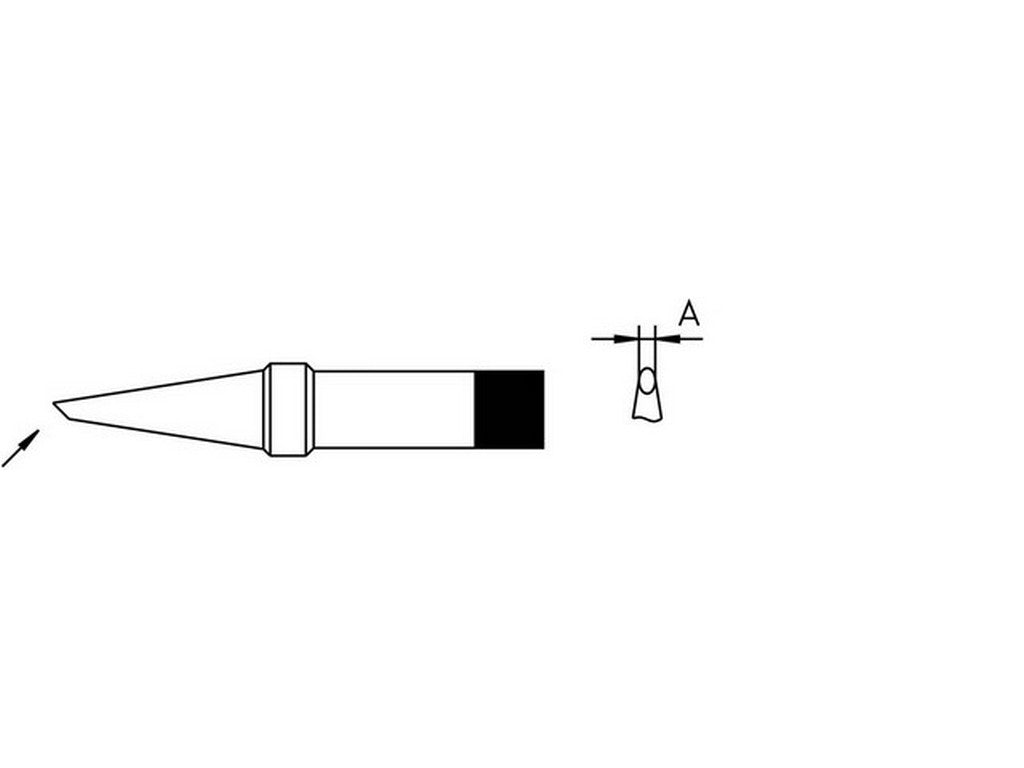

- Type: Round, sloped tip (indicated as "Round sloped").
- Temperature characteristic: 370°C (datasheet notes that the temperature range depends on the tool).
- Compatibility: Designed for the Weller Magnastat system, where temperature selection is achieved by changing the temperature-sensitive tip.
Documentation
Technical details and confirmed dimensions can be found in the manufacturer's datasheet. View datasheet from the manufacturer
Typical applications
The PT BB7 is used for soldering tasks where a round, sloped soldering tip with a temperature characteristic of 370°C is required. As part of the Magnastat system, the tip's temperature sensing helps to switch heating power during soldering and when idle, as described in the manufacturer's documentation.
Specifications
- Product name: PT BB7 (Item No. 4PTBB7-1)
- Manufacturer: WELLER
- Manufacturer part number: T0054125799
- Description: Soldering Tip Round sloped 370°C
- Length: 34.5 mm
- Diameter: 6.8 mm
- Temperature (indicated, depends on tool): 370°C
- Tip Type: HM
- Quantity Per Package: 1
- UPC: 4003019432387
- Product Family: PT Soldering Tips
Sources: Weller manufacturer datasheet (see documentation link above).
