Product Description

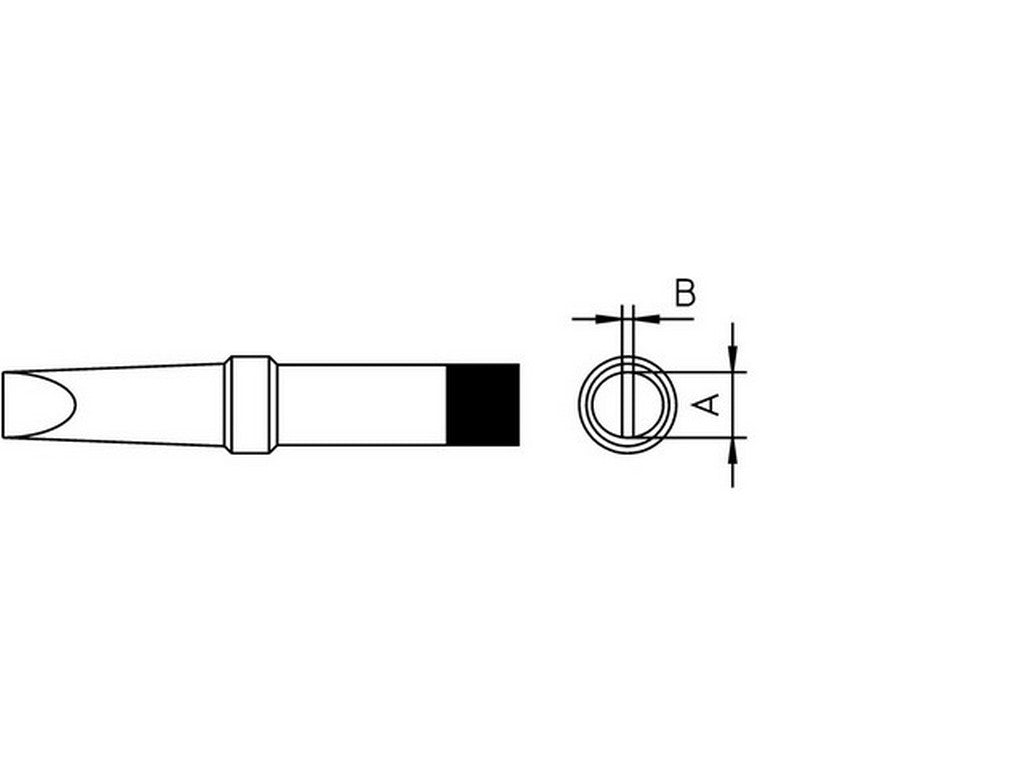

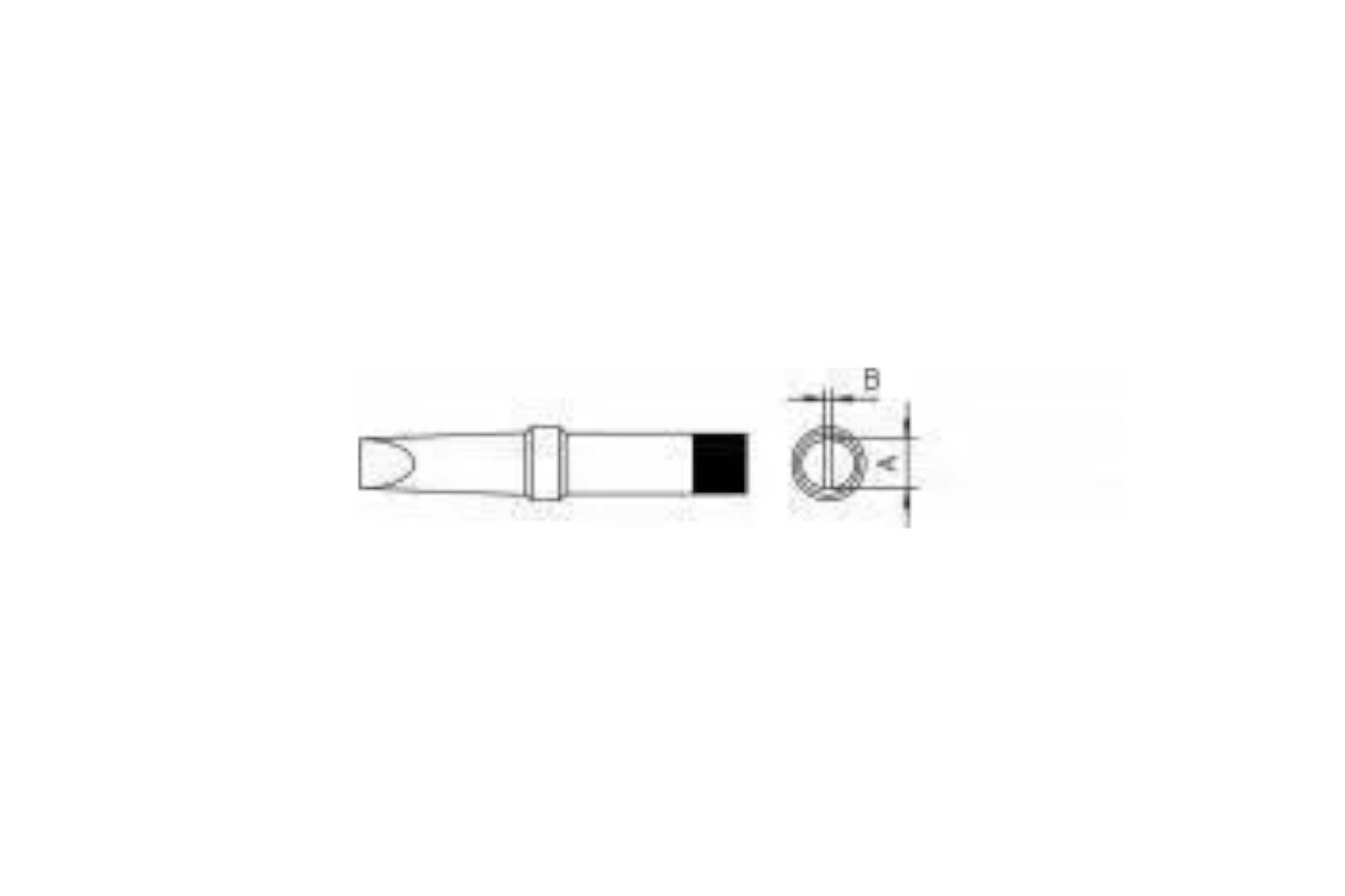

This chisel soldering tip from Weller, 4PTB8-1 (PT B8), is a soldering tip in the PT Soldering Tips family and is specified as a "Soldering Tip, Chisel". The product is documented by the manufacturer as a temperature-sensitive tip for use in Weller's Magnastat system, where the tip contributes to the selection of the working temperature via a ferro-magnetic sensor (Curie point principle).Function and design
- Tip type: HM (chisel)
- Temperature characteristic: indicated temperature range 425°C (depends on the tool used)
- Function in the Magnastat system: the tip contains a ferromagnetic element that changes properties at specific temperatures to control the heating element's on/off via a magnetic switch.
Documentation
For technical details and manufacturer documentation, see the manufacturer's data sheet: See data sheet from the manufacturerTypical applications
- Used for soldering tasks where a chisel tip is desired, for example when soldering with a flat/tapering contact surface.
- Used as an interchangeable temperature-sensitive tip in Weller Magnastat systems to select the working temperature by changing the tip to one with the desired Curie point.
Specifications
- Product name: PT B8 / 4PTB8-1
- Product family: PT Soldering Tips
- Item No: 4PTB8-1
- Length: 33 mm
- Diameter: 6.9 mm
- Tip Type: HM
- Temperature (indicated, depends on tool): 425°C
- Quantity Per Package: 1
- UPC: 4003019432363
