This soldering tip from WELLER

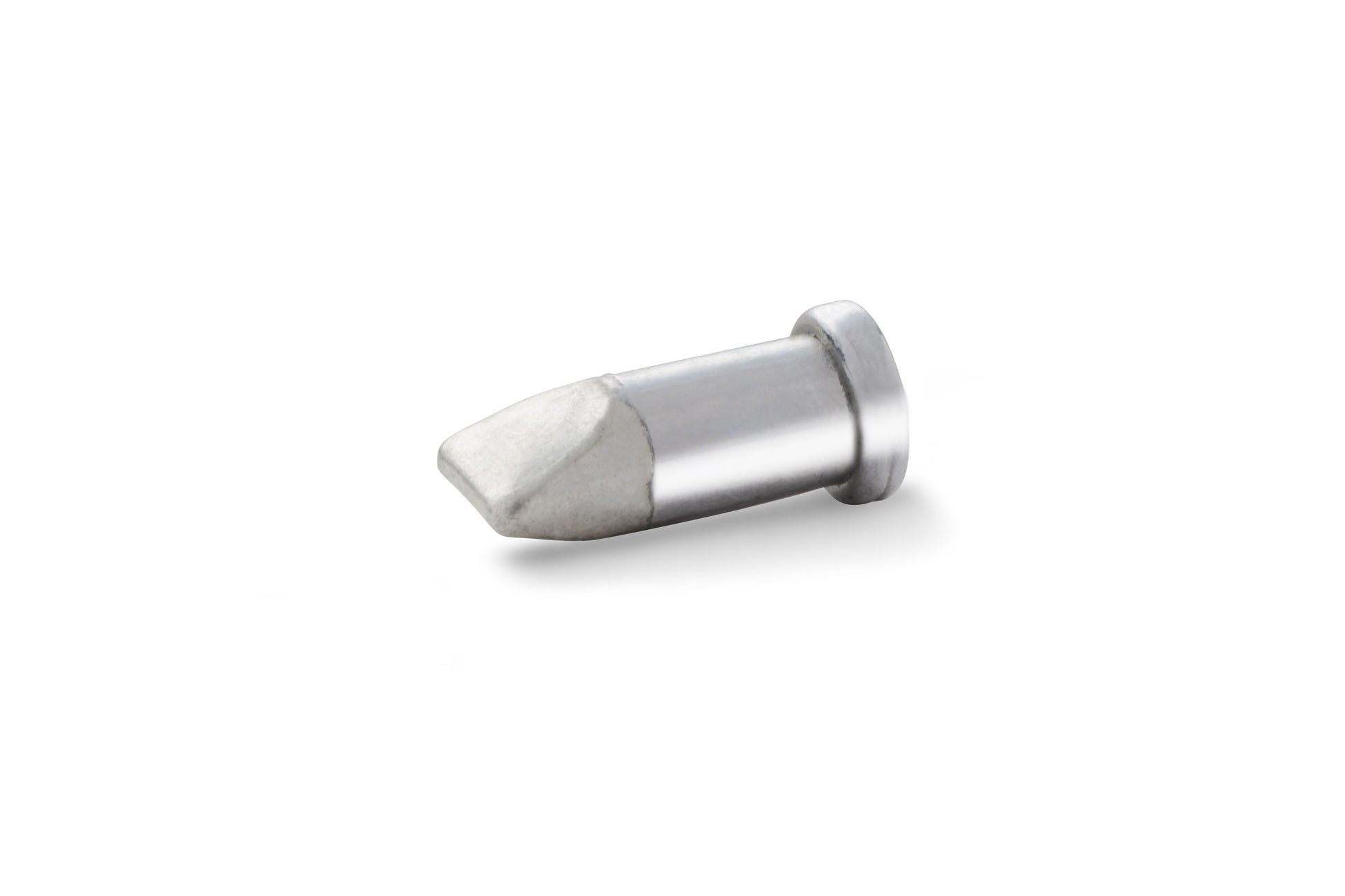

The Weller LT DLL (Art. No. T0054444899) is a chisel-shaped soldering tip intended for standard soldering work. The product is identified as part of the Weller LT tip family and is supplied with a diameter of 4.6 mm and a tip length of 13 mm.Material and compatibility
The tip is made of solid copper with an iron coating for increased wear resistance and longer lifespan. The Weller LT DLL is specified for use with the following Weller soldering irons: WXP 80, WP 80, and WSP 80.Documentation
See manufacturer's data sheetTypical applications
- Suitable for universal soldering tasks where a chisel-shaped tip and a contact surface of approx. 4.6 mm diameter are relevant.Further remarks
The description of the Weller LT DLL in the manufacturer's material indicates a large tip portfolio in the LT family and mentions the tip's suitability for universal applications. The product's construction (solid copper with iron coating) is stated by the manufacturer as being designed for maximum durability.Specifications
- Article number: T0054444899
- Product name: Weller LT DLL
- Tip shape: Chisel
- Diameter: 4.6 mm
- Length: 13 mm
- Material: Solid copper, iron-plated (eisenbeschichtetes Kupfer)
- Compatible models: WXP 80, WP 80, WSP 80
- Quantity per package: 1
- Silver Line heating element technology: Yes
- Tip family: LT
- UPC: 037103264770
Sources
- Manufacturer's data sheet: See manufacturer's data sheet
